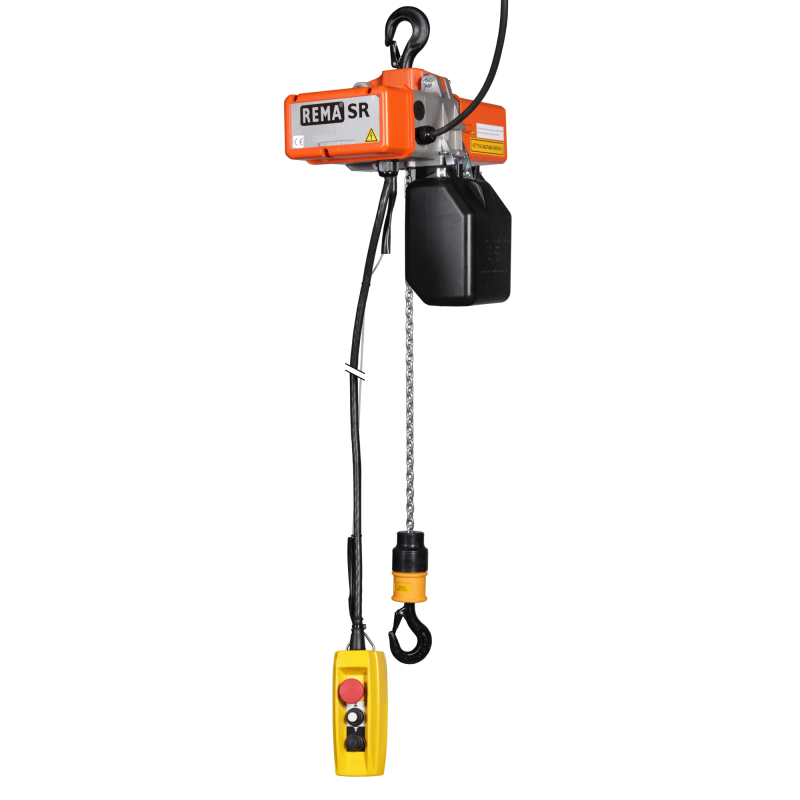

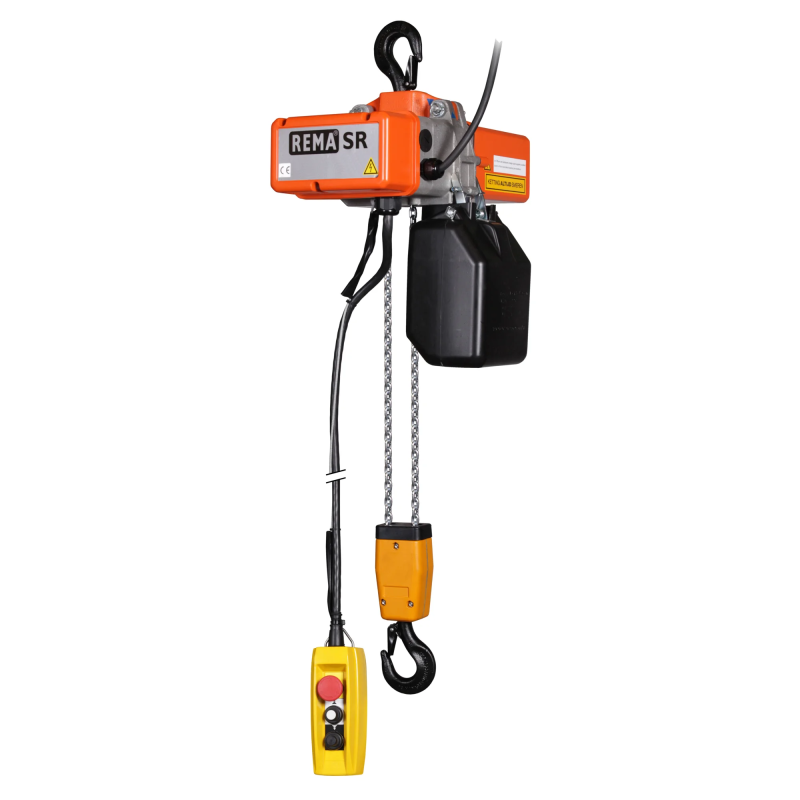

SR Electric Chain Hoist 230V / 24V – 0.25–2 ton, 3–10 m, Single-phase hoist
SR electric chain hoist 230V with 24V low voltage control, slip clutch and electromagnetic brake. Designed for single-phase power supply. Capacity up to 2 ton and lifting heights up to 10 meters.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
SR Electric Chain Hoist 230V / 24V – 0.25–2 ton, 3–10 m - Single-phase hoist
The SR 230V electric chain hoist is designed for applications where three-phase power is not available. Its single-phase connection makes it ideal for construction sites, workshops, and mobile operations.
Despite operating on 230V, it delivers the same performance and safety features as 400V models, including a high duty cycle and robust construction.
The integrated slip clutch and electromagnetic brake ensure maximum safety, holding the load securely at any position while protecting against overload.
Key Features
| Feature | Specification |
|---|---|
| Power supply | 230 V, 1-phase, 50 Hz |
| Control | 24 V low voltage |
| Cable requirement | Min. 2.5 mm² |
| Motor | High thermal capacity |
| Brake | Electromagnetic |
| Overload protection | Slip clutch |
| Safety system | Patented clutch/brake |
| Limit switches | Upper & lower |
| Construction | Low headroom |
| Load chain | Grade 8 (EN 818-7) |
| Standards | EN 12100, EN 14492, CE |
Technical Data
| Attribute | Value |
|---|---|
| Capacity (WLL) | 0.25 – 2 ton |
| Lifting height | 3 – 10 m |
| Duty cycle | High |
| Control | Pendant (24V) |
Standard delivery
- Standard lifting height of 3 m (maximum distance between top and bottom hook)
- 1.8 m control cable with 24 VAC push-button pendant
- Includes limit switches (upper and lower)
- 1 m power cable
- Chain bag
- Supplied without trolley
Options
- Custom lifting and control heights available
- Larger chain bag
- Radio remote control
- Thermal protection against electrical overload
- Manual push trolley or electric trolley
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
