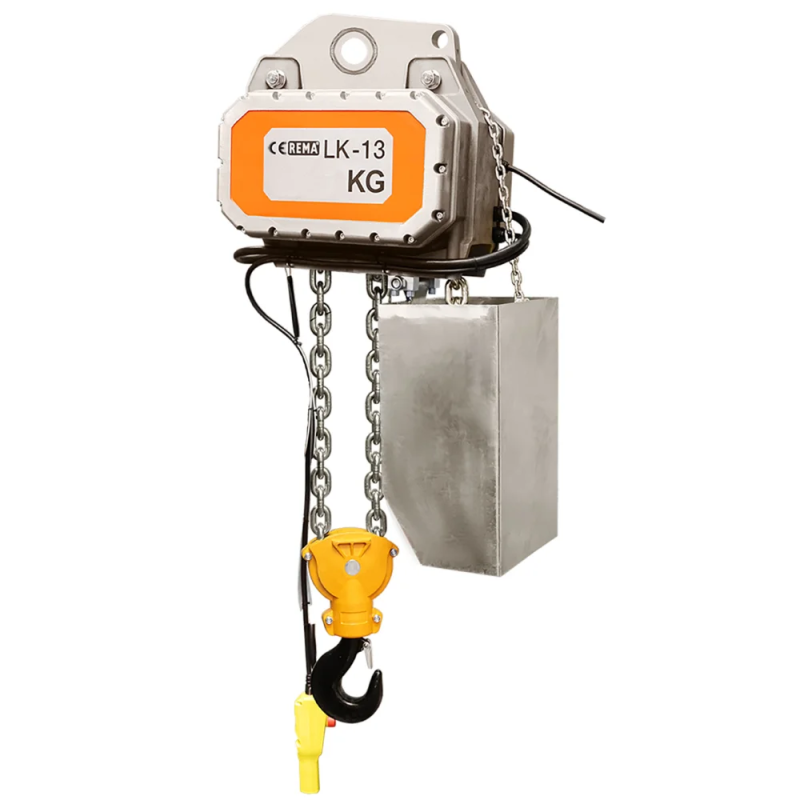

LK Electric Chain Hoist 400V / 24V – 5–12.5 ton, 8–16 m Heavy Duty Industrial Hoist
The LK electric chain hoist is engineered for the most demanding industrial environments. It has proven to be a highly reliable and safe solution under extreme working conditions.
With lifting capacities up to 12.5 ton (extendable up to 25 ton on request), this hoist delivers outstanding performance. Its high duty cycle combined with fast lifting speeds makes it ideal for continuous heavy-duty operations.
The patented braking system and integrated slip clutch ensure maximum safety and precise load control at any height.
Key Features
| Feature | Specification |
|---|---|
| Power supply | 400 V, 3-phase |
| Control | 24 V low voltage |
| Capacity | Up to 12.5 ton (25 ton on request) |
| Brake | Patented load holding brake |
| Overload protection | Slip clutch |
| Limit switches | Upper & lower |
| Duty cycle | High |
| Load chain | Galvanized DAT (Grade 8) |
| Standards | EN 818-7, EN 12100, EN 14492 |
| Certification | CE |

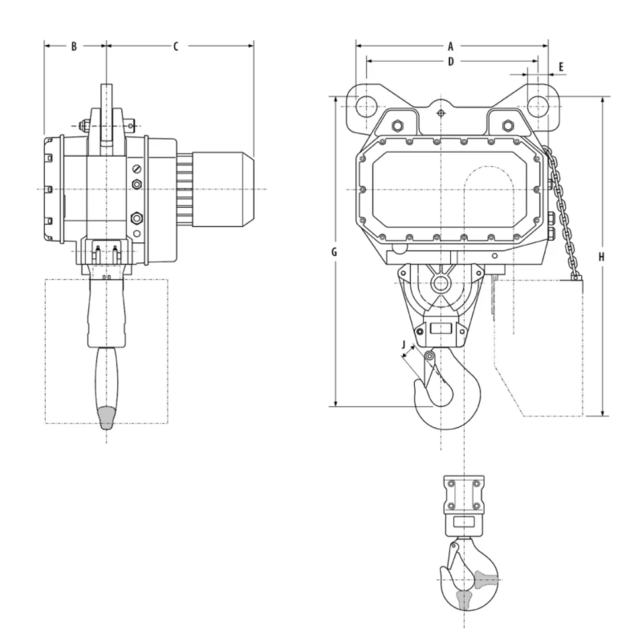

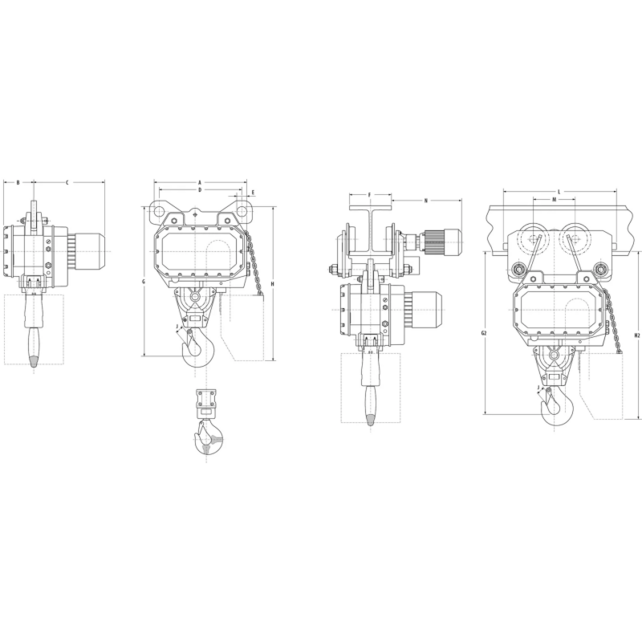

Technical Data
| Attribute | Value |
|---|---|
| Capacity (WLL) | 5 – 12.5 ton |
| Lifting height | 8 – 16 m |
| Lifting speed | Up to 5.6 m/min |
| Duty cycle | Heavy duty |
Standard delivery
- Standard lifting height of 3 m
- 1.8 m control cable with push-button pendant (24 VAC)
- 24V control box
- Includes limit switches
- 1 m power cable
- Chain bag
- 2-hole suspension plate
- Supplied without trolley
Options
- Custom lifting and operating heights
- Larger chain bag
- Different voltages and frequencies
- Radio remote control
- Hook suspension

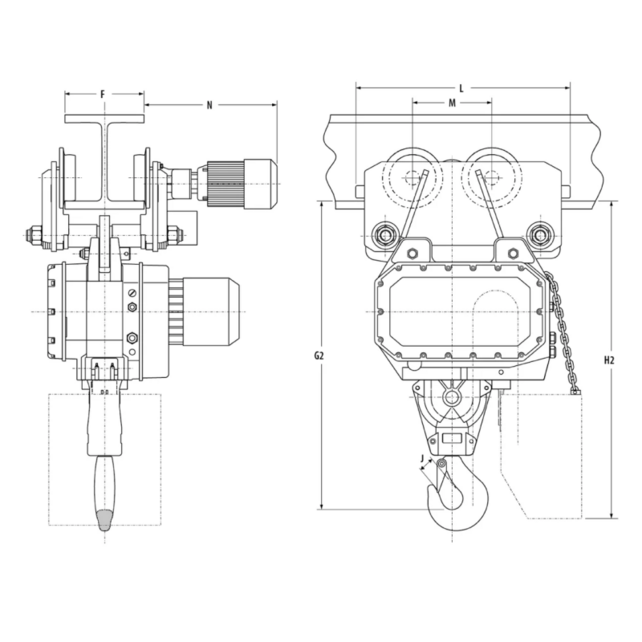

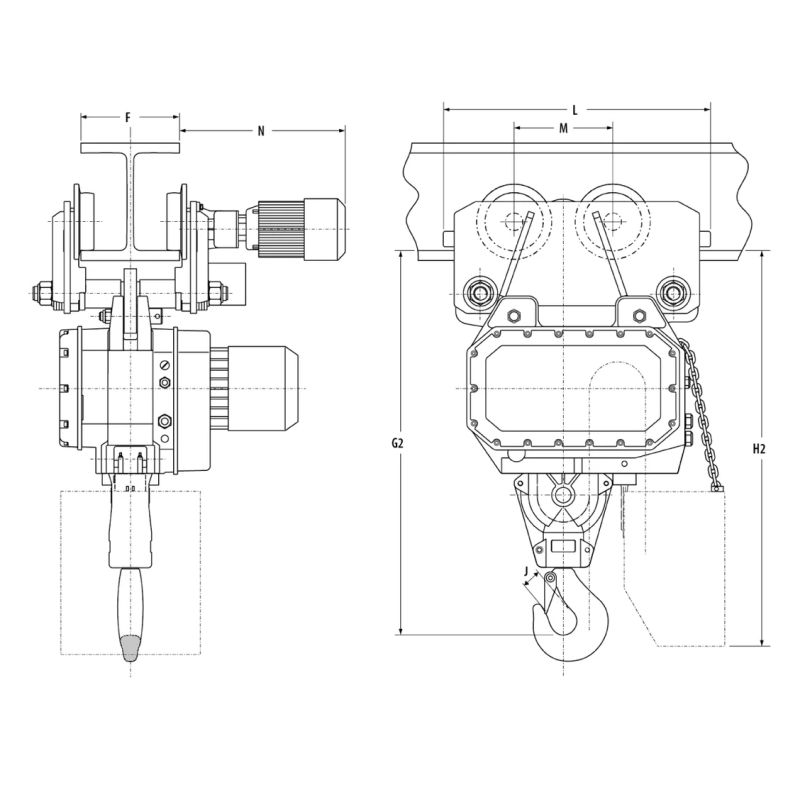

- Electric trolley
- Capacities up to 25 ton on request
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB0803037 |
| SKU | SB0803037 |
| EAN | 9509142729394 |

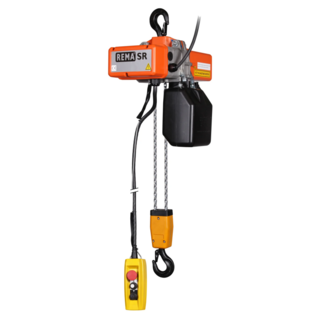

SR electric chain hoist 230V with 24V low voltage control, slip clutch and electromagnetic brake. Designed for single-ph...
