Elephant FAH 400 V 1‑Speed Electric Chain Hoist – 0.5 – 3 t – Lifting Height 3–10 m

Create your own review

EUR 2.360,00 Excl. tax

EUR 2.855,60 Incl. tax

Excl. Shipping costs

Elephant FAH 400 V 1‑speed electric chain hoist, 0.5‑3 t capacity, lifting height 3‑10 m. Slip‑clutch, brake, limit switches, 24 V control, IP54 housing, galvanized DAT‑8 chain, phase protection, CE‑marked to EN 818‑7, EN 12100, EN 14492.

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

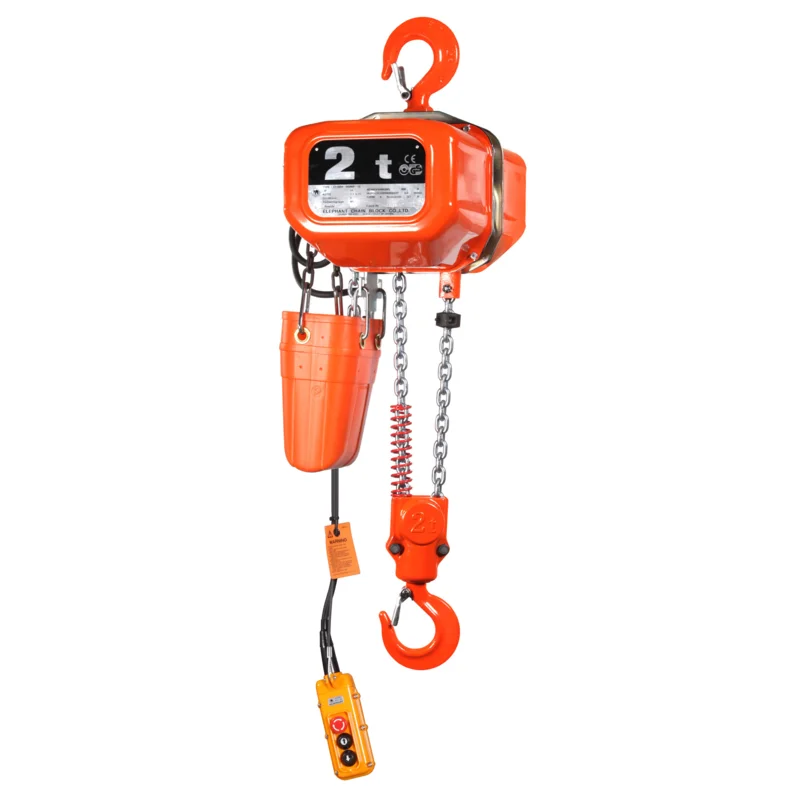

Elephant FAH 400 V 1‑Speed Electric Chain Hoist – 0.5 – 3 t – Lifting Height 3–10 m

The Elephant FAH series is a very robust electric chain hoist with a fully welded sheet‑steel housing (IP54). It runs on 400 VAC / 50 Hz (optional 440 VAC / 60 Hz) and provides a single, constant lifting speed.

Key Features

Feature	Specification
Capacity (WLL)	0.5 t, 1 t, 2 t or 3 t (FAH/500KG, FAH/1000KG, FAH/2000KG, FAH/3000KG)
Lifting height	3 – 10 m (standard 3 m) – higher on request
Operating height	2.5 m (standard)
Motor	0.9 kW (0.5 t) or 1.6 kW (≥ 1 t)
Speed	7 m/min (0.5 t) – 7.6 m/min (≥ 1 t) – 3.8 m/min (2 t) – 2.5 m/min (3 t)
Supply voltage	400 V AC / 50 Hz (440 V / 60 Hz on request)
Control voltage	24 V DC
Load chain	Galvanised DAT (Grade 8) chain
Enclosure	Sheet‑steel, IP54 – dust & splash protection
Safety	Slip‑clutch overload protection, brake that holds the load at any height, limit switches for highest/lowest hook positions, phase protection against wrong motor rotation, hooks bend gradually under overload rather than snap
Options	Higher lifting or operating height, larger chain bucket (> 3 m), radio remote control, push‑ or electric trolley, 440 V / 60 Hz version
Certification	CE marked, compliant with EN 818‑7, EN 12100, EN 14492
Standard delivery	3 m lifting height (max. distance between top and bottom hook), 1.8 m control cable, 4 m power cable, limit switches, 24 V push‑button control unit, plastic chain bucket for 3 m (trolley not included)
