Elephant Beta 230 V Electric Chain Hoist – 125 – 200 kg – 1‑Speed – Lifting Height 3‑10 m
Elephant Beta 230 V compact aluminium electric chain hoist, 125 – 200 kg capacity, 1‑speed, lifting height 3‑10 m, lift speed 6.5 m/min, slip‑clutch, self‑locking brake, IP54, CE‑marked to EN 818‑7, EN 12100, EN 14492.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

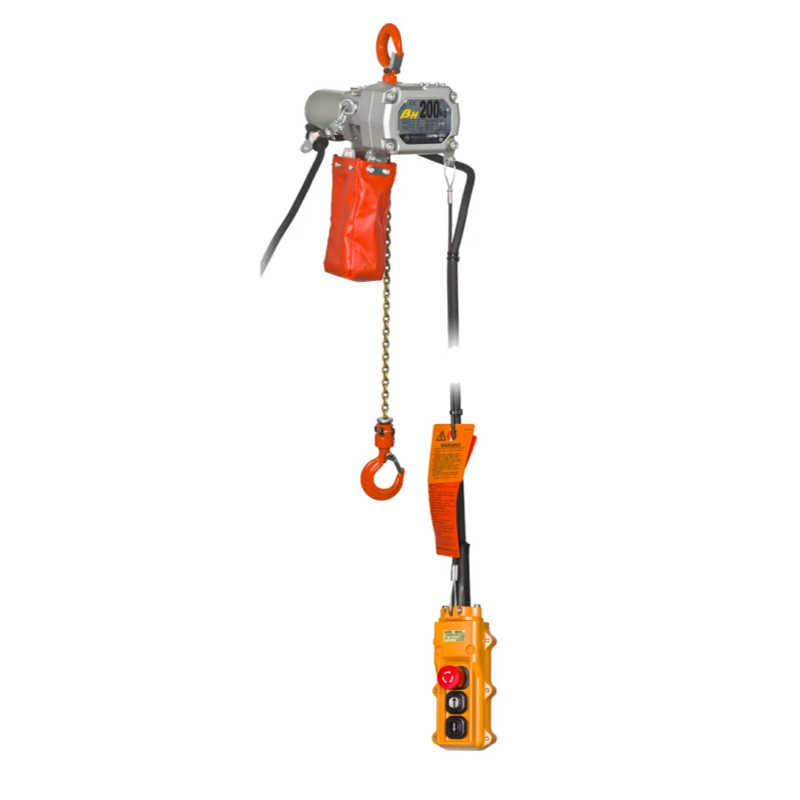

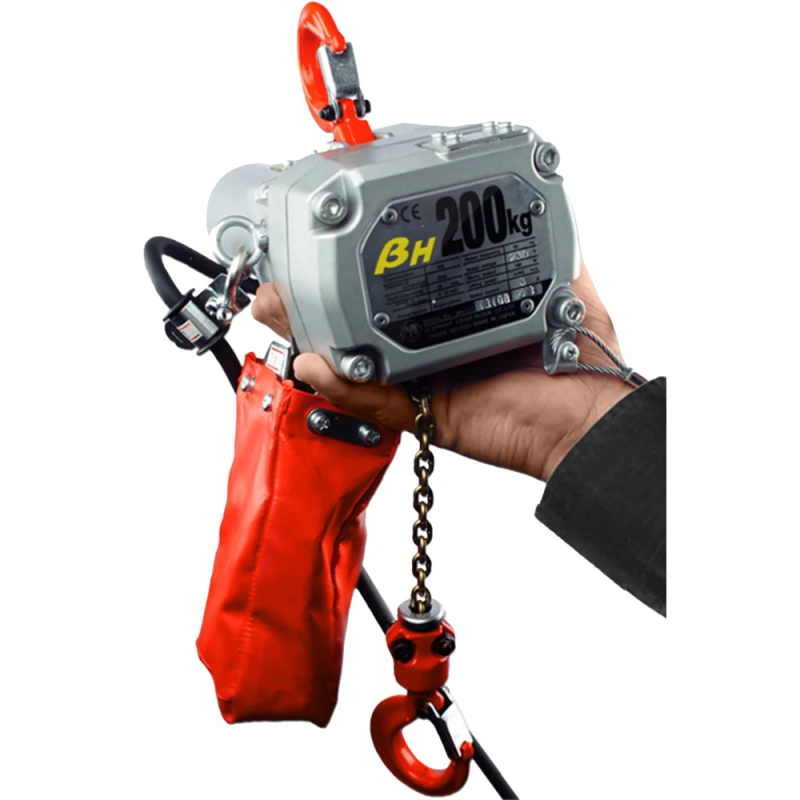

Elephant Beta 230 V – ultra‑light aluminium electric chain hoist (125 – 200 kg)
The Beta hoist is purpose‑built for light‑weight installations where a very low tare weight of only 7.5 kg is essential. It features a single slip‑clutch and a self‑locking brake; in the event of overload the hook bends gradually instead of snapping.
Key Features
| Feature | Specification |
|---|---|
| Capacity (WLL) | 125 kg (BETA‑125KG‑…M) or 200 kg (BETA‑200KG‑…M) |
| Lifting height | 3 – 10 m (standard), custom heights on request |
| Lifting speed | 6.5 m/min (both capacities) |
| Motor | 0.18 kW (≈ 0.24 hp) |
| Enclosure | IP54 |
| Insulation class | B |
| Load chain | Grade 10, high‑strength chain |
| Brake | Self‑locking brake holds the load at any height |
| Slip‑clutch | Overload protection |
| Control voltage | 230 VAC (direct control) |
| Supply voltage | 230 VAC |
| Weight | 7.5 kg (trolley not included) |
| Standard delivery | 3 m lifting height (max. distance between top‑ and bottom‑hook), 1.8 m control cable, 3 m power cable, plastic chain bag up to 10 m |
| Options | Higher lifting/operating height, push trolley |
| CE marking | EN 818‑7, EN 12100, EN 14492 |
| FEM code | 9.511 (motor), 1 Am duty group |
Technical data
| Capacity | Model range | Lifting height (m) | Lifting speed (m/min) | Motor kW | Weight (kg) |
|---|---|---|---|---|---|
| 125 kg | BETA‑125KG‑3M … BETA‑125KG‑10M | 3 – 10 | 6.5 | 0.18 | 7.5 |
| 200 kg | BETA‑200KG‑3M … BETA‑200KG‑10M | 3 – 10 | 6.5 | 0.18 | 7.5 |
Standard delivery
- 3 m lifting height (maximum distance between top and bottom hook)
- 1.8 m control cable (direct 230 V control)
- 3 m power cable
- Plastic chain bag suitable for chain up to 10 m
- Trolley not supplied (optional push trolley)
Optional accessories (on request)
- Increased lifting and/or operating height beyond the standard 3‑10 m range
- Push trolley (manual)
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB05110013 |
| SKU | SB05110013 |
| EAN | 9503583521975 |
