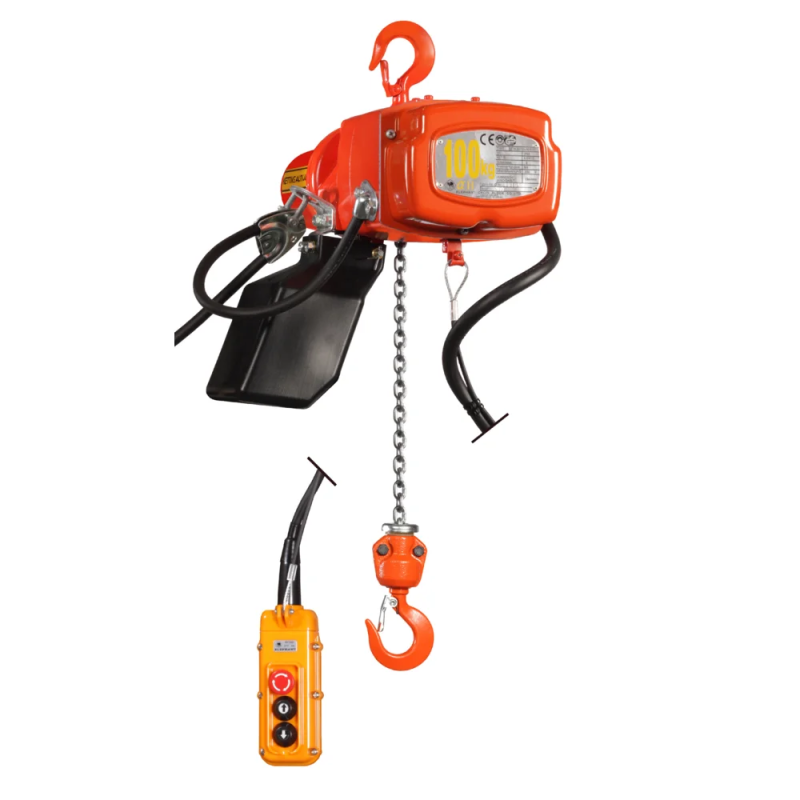

Elephant ALC 400 V Electric Chain Hoist – 150 – 500 kg – 1‑Speed – Lifting Height 3–10 m
Elephant ALC 400 V compact aluminium electric chain hoist, 150 – 500 kg capacity, 1‑speed. Slip‑clutch, self‑locking brake, IP54 enclosure, CE‑marked to EN 818‑7, EN 12100, EN 14492.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Elephant ALC 400 V Electric Chain Hoist – 150 – 500 kg – 1‑Speed – Lifting Height 3–10 m
The ALC series combines a lightweight aluminium housing with a 400 V AC supply. Its high duty‑cycle and fast lifting speeds (9 m/min for 150 / 250 kg, 4.5 m/min for 500 kg) make it perfect for fast, space‑critical industrial lifting.
Key Features
| Feature | Specification |
|---|---|
| Capacity (WLL) | 0.15 t (150 kg), 0.25 t (250 kg), 0.5 t (500 kg) |
| Lifting height | 3 – 10 m (standard 3 m for 150/250 kg, 4.5 m for 500 kg) |
| Speed | 9 m/min (150/250 kg) or 4.5 m/min (500 kg) |
| Motor | 0.55 kW (all models) |
| Enclosure | Aluminium, IP54 (dust & splash protection) |
| Insulation class | E |
| Brake | Self‑locking brake holds the load at any height |
| Slip‑clutch | Protects against overload |
| Load chain | Galvanised DAT‑8 (Grade 8) |
| Control | 24 V pendant control station, 1.8 m direct‑control cable |
| Number of falls | 1 (standard) – 2 (optional) |
| Weight | 325 kg (150/250 kg models) – 415 kg (500 kg model) |
| CE marking | EN 818‑7, EN 12100, EN 14492 |
| Options | Higher lifting/operating height, larger chain bucket (> 3 m), push trolley |
Technical data
| Capacity | Example model | Lifting speed (m/min) | Max. lifting height (m) | Weight (kg) |
|---|---|---|---|---|
| 0.15 t | ALC/150KG/3M → ALC/150KG/10M | 9 | 3 – 10 | 325 |
| 0.25 t | ALC/250KG/3M → ALC/250KG/10M | 9 | 3 – 10 | 325 |
| 0.5 t | ALC/500KG/3M → ALC/500KG/10M | 4.5 | 3 – 10 (standard 4.5 m) | 415 |
Standard delivery
- 3 m lifting height (max. distance between top and bottom hook) – for the 500 kg models the standard height is 4.5 m
- 1.8 m control cable (direct 24 V control)
- 4 m power cable
- Limit switches for highest and lowest hook positions
- 24 V pendant control station
- Plastic chain bucket for chain up to 6 m (or plastic bag for longer chain)
- Trolley not included
Optional accessories (on request)
- Increased lifting or operating height
- Larger chain bucket (> 3 m)
- Radio remote control
- Push or electric trolley
Marking & standards
- CE‑marked in accordance with EN 818‑7, EN 12100, EN 14492
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB05140013 |
| SKU | SB05140013 |
| EAN | 9505598175426 |
