Elephant FBH 400 V 2‑Speed Electric Chain Hoist – 0.5 – 3 t – Lifting Height 3–10 m

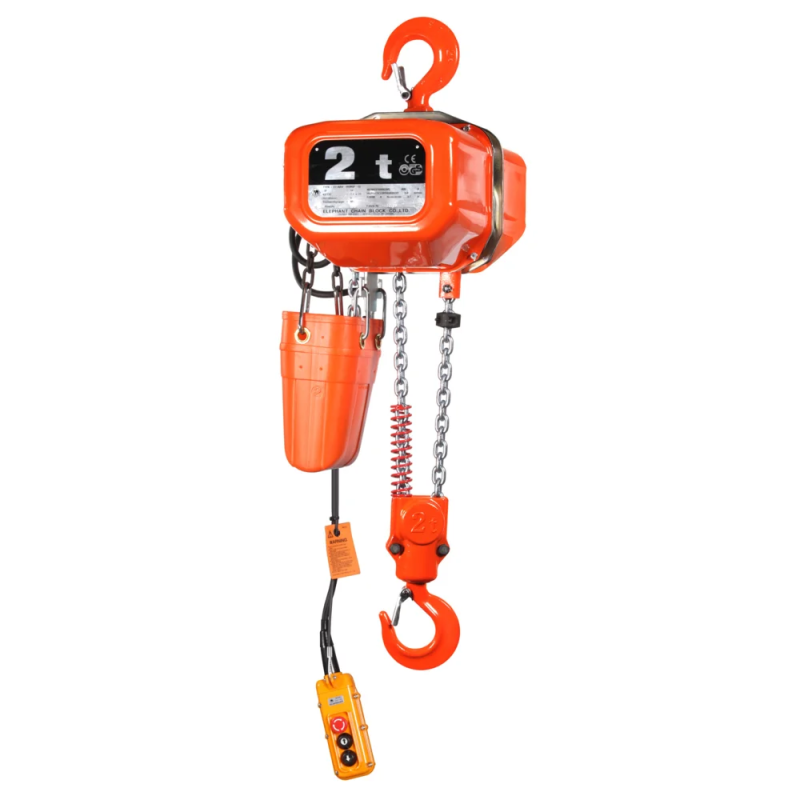

The Elephant FBH family delivers a heavy‑duty electric chain hoist with two selectable lifting speeds. It is housed in a fully welded sheet‑steel enclosure (IP54) and operates on 400 VAC / 50 Hz (optional 440 VAC / 60 Hz).
Key Features
| Feature | Specification |
|---|---|
| Capacity (WLL) | 0.5 t, 1 t, 2 t or 3 t (FBH/500KG, FBH/1000KG, FBH/2000KG, FBH/3000KG) |
| Lifting height | 3 – 10 m (standard 3 m) – higher on request |
| Operating height | 2.5 m (standard) |
| Motor | 0.9 kW (0.5 t) or 1.6 kW (≥ 1 t) |
| Speed | Two programmed speeds – low & high (e.g., 7 m/min & 3.8 m/min for the 0.5 t version, 7.6 m/min & 3.8 m/min for ≥ 1 t, 3.8 m/min & 1.5 m/min for 2 t, 2.5 m/min & 1.0 m/min for 3 t) |
| Supply voltage | 400 V AC / 50 Hz (440 V / 60 Hz on request) |
| Control voltage | 24 V DC |
| Load chain | Galvanised DAT (Grade 8) chain |
| Enclosure | Sheet‑steel, IP54 – dust & splash protection |
| Safety | Slip‑clutch overload protection, brake that holds the load at any height, limit switches for highest/lowest hook positions, phase protection against wrong motor rotation, hooks bend gradually under overload rather than snapping |
| Options | Higher lifting or operating height, larger chain bucket (> 3 m), radio remote control, push‑ or electric trolley, 440 V / 60 Hz version |
| Certification | CE marked, compliant with EN 818‑7, EN 12100, EN 14492 |
| Standard delivery | 3 m lifting height (max. distance between top and bottom hook), 1.8 m control cable, 4 m power cable, limit switches, 24 V push‑button control unit, plastic chain bucket for 3 m (trolley not included) |

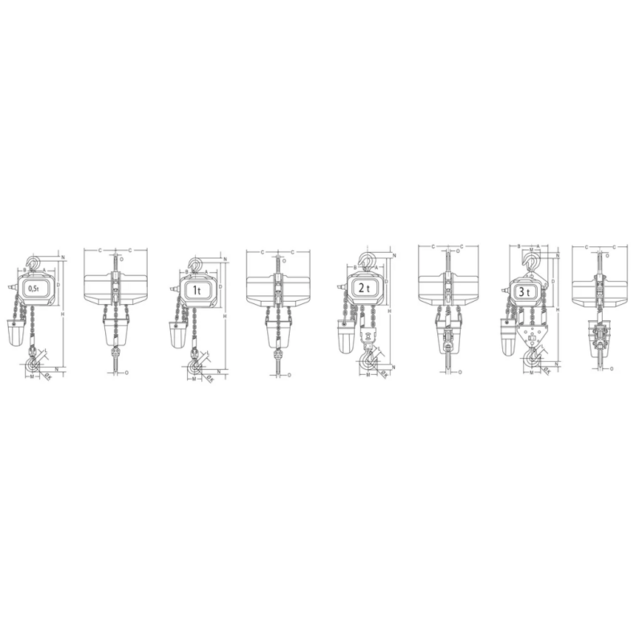

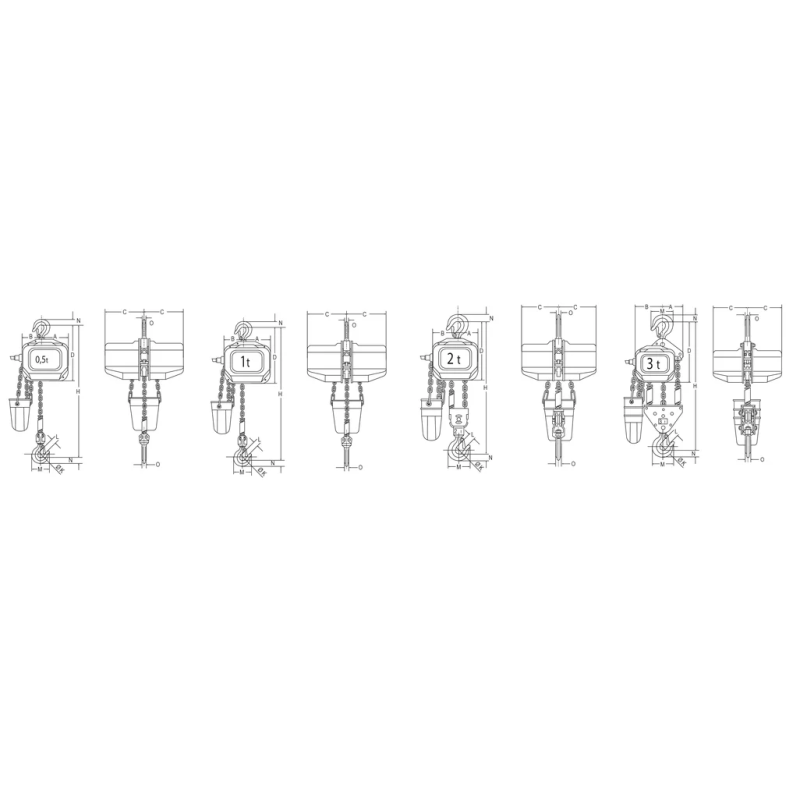

Technical data
| Model | WLL (t) | Lifting Height (m) | Motor (kW) | Lifting Speed (m/min) | Weight (kg) |
|---|---|---|---|---|---|

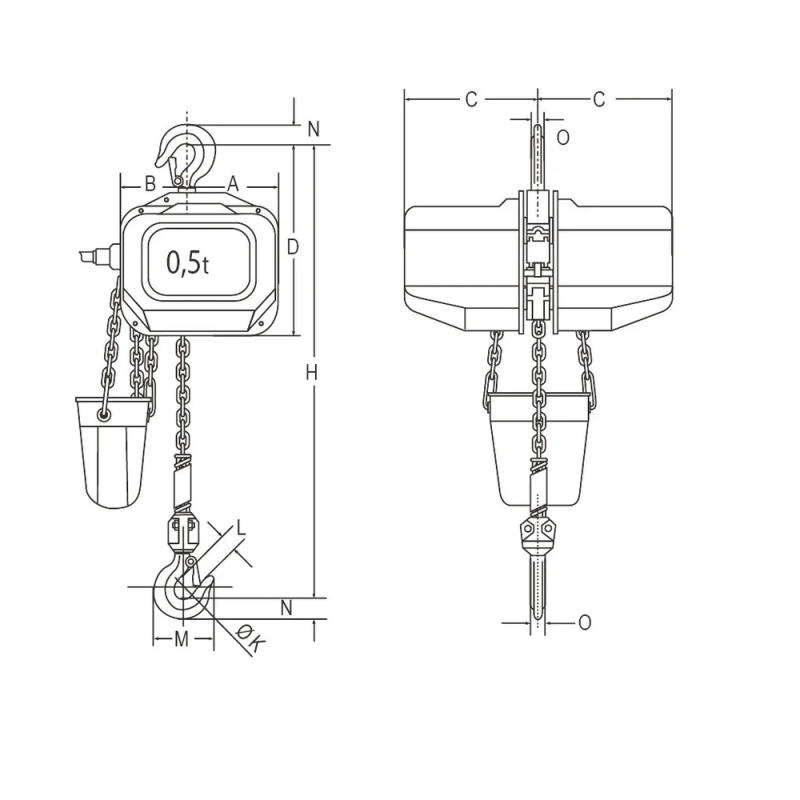

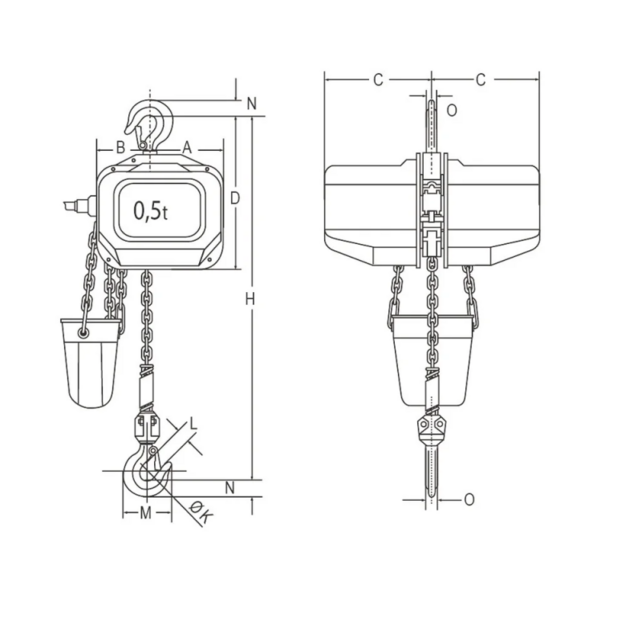

| FBH/500KG/3‑10M | 0.5 | 3‑10 | 0.9 | 7 (low) / 3.8 (high) | 43‑56 |

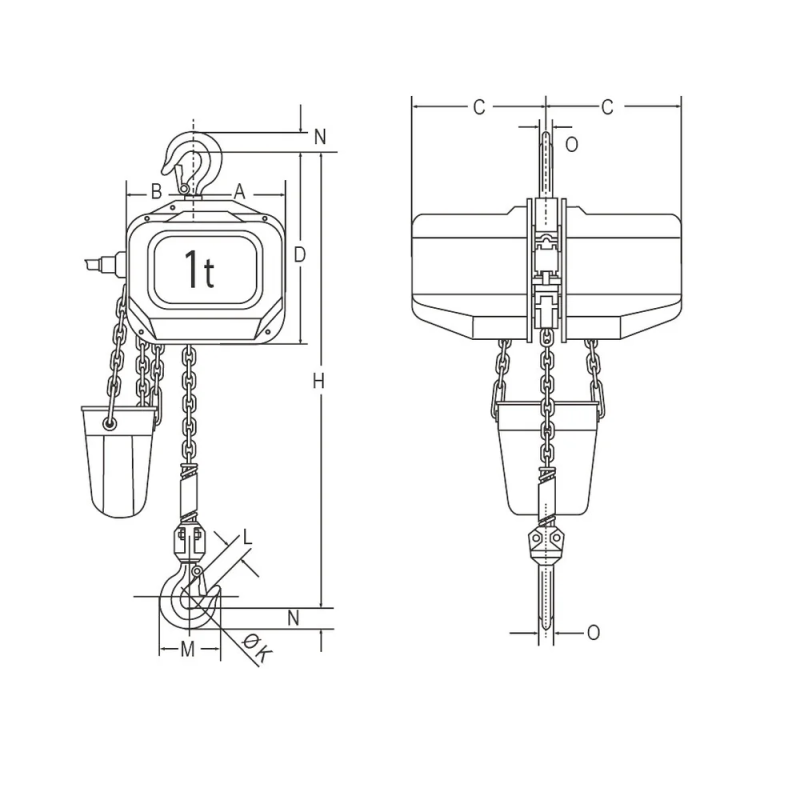

| FBH/1000KG/3‑10M | 1 | 3‑10 | 1.6 | 7.6 (low) / 3.8 (high) | 58‑70 |

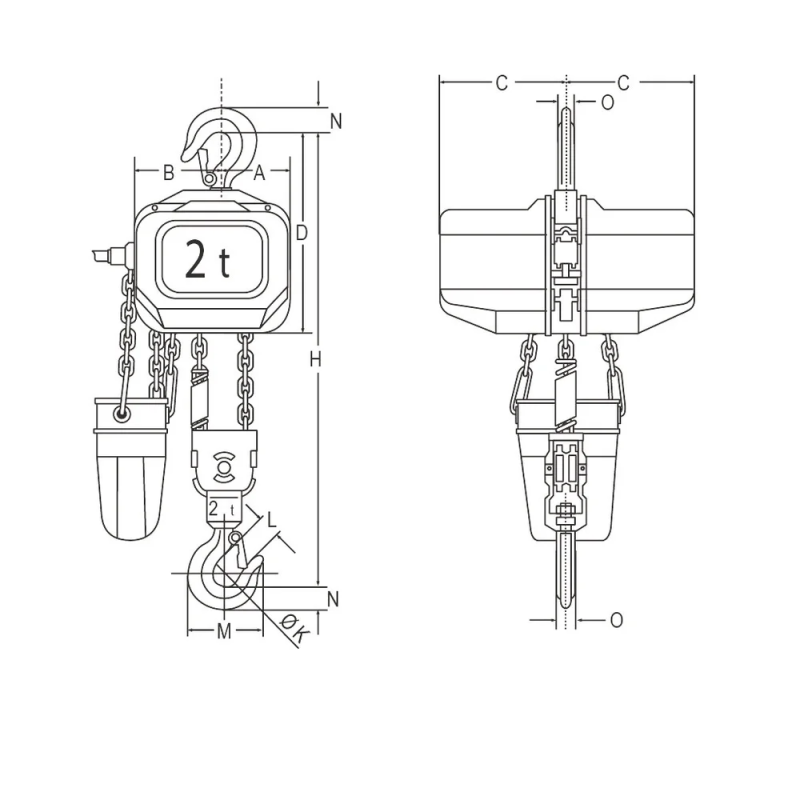

| FBH/2000KG/3‑10M | 2 | 3‑10 | 1.6 | 3.8 (low) / 1.5 (high) | 64‑85 |

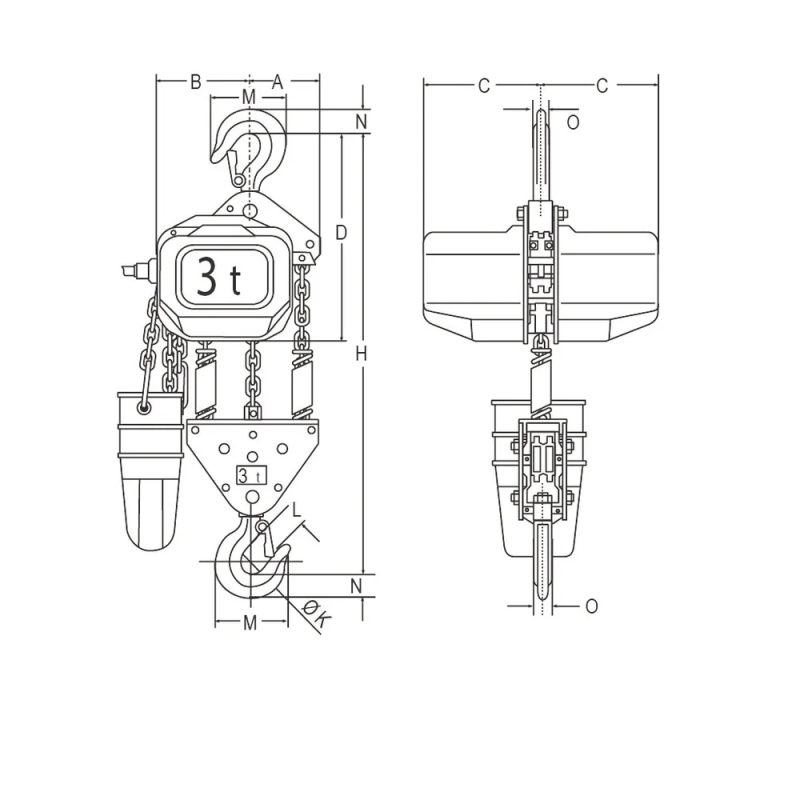

| FBH/3000KG/3‑10M | 3 | 3‑10 | 1.6 | 2.5 (low) / 1.0 (high) | 78‑102 |
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
