Elephant 400 V Electric Chain Hoist + Electric Trolley – 250 – 500 kg – 1‑Speed – Lifting Height 3‑10 m
Elephant ALCMS 400 V compact aluminium electric chain hoist + electric trolley, 250 – 500 kg capacity, 1‑speed, lifting height 3‑10 m, hoist speed 9 / 4.5 m/min. Slip‑clutch, self‑locking brake, trolley 10 m/min, IP54, CE‑marked to EN 818‑7, EN 12100, EN
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

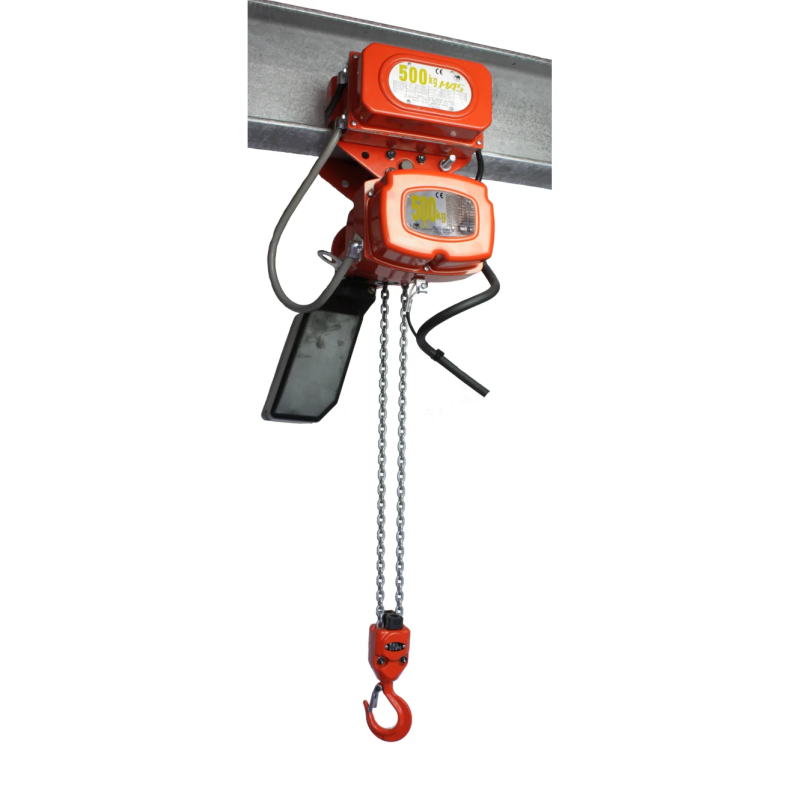

Elephant ALCMS 400 V – electric chain hoist with integrated electric trolley
The ALCMS series merges a compact aluminium chain hoist (400 V AC) with an electric trolley. The hoist’s high duty‑cycle and the trolley’s 10 m/min travel speed deliver fast, ergonomic load handling in machine‑building, assembly and maintenance settings.
Key Features
| Feature | Specification |
|---|---|
| Capacity (WLL) | 0.25 t (250 kg) or 0.5 t (500 kg) |
| Lifting height | 3 – 10 m (standard) |
| Hoist speed | 9 m/min (250 kg) or 4.5 m/min (500 kg) |
| Trolley speed | 10 m/min |
| Hoist motor | 0.55 kW (all models) |
| Trolley motor | 0.4 kW |
| Enclosure | Aluminium, IP54 |
| Insulation class | E |
| Load chain | Galvanised DAT‑8 (Grade 8) |
| Brake | Self‑locking brake holds the load at any height |
| Slip‑clutch | Overload protection |
| Trolley flange width | 75 – 125 mm |
| Control | 24 V pendant control station, 1.8 m direct‑control cable |
| Number of falls | 1 (standard) – 2 (optional) |
| Weight | 407 kg (250 kg model) – 415 kg (500 kg model) |
| CE marking | EN 818‑7, EN 12100, EN 14492 |
| Options | Higher lifting/operating height, larger chain bucket (> 3 m), push or electric trolley (if additional) |
Technical data
| Capacity | Example model | Hoist speed (m/min) | Trolley speed (m/min) | Max. lifting height (m) | Weight (kg) |
|---|---|---|---|---|---|
| 0.25 t | ALCMS/250KG/3M → ALCMS/250KG/10M | 9 | 10 | 3 – 10 | 407 |
| 0.5 t | ALCMS/500KG/3M → ALCMS/500KG/10M | 4.5 | 10 | 3 – 10 | 415 |
Standard delivery
- 3 m lifting height (max. distance between top and bottom hook)
- 1.8 m control cable (direct 24 V control)
- 4 m power cable
- 24 V pendant control station
- Limit switches for highest and lowest hook positions
- Plastic chain bucket for chain up to 6 m (or plastic bag for longer chain)
- Electric trolley supplied (motor and drive) – trolley accessories (push trolley, additional battery, etc.) not included
Optional accessories (on request)
- Increased lifting or operating height
- Larger chain bucket (> 3 m)
- Radio remote control
- Push trolley (if a manual trolley is preferred)
Marking & standards
- CE‑marked in accordance with EN 818‑7, EN 12100, EN 14492
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB05141053 |
| SKU | SB05141053 |
| EAN | 9504845183344 |
