Elephant 230 V Electric Chain Hoist – 250 kg – Variable Speed – Lifting Height 2.5 m
Elephant ALHVDH 230 V compact aluminium electric chain hoist, 250 kg capacity, variable speed (0.9‑10 m/min), lifting height 2.5 m, slip‑clutch, self‑locking brake, IP54, CE‑marked to EN 818‑7, EN 12100, EN 14492.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

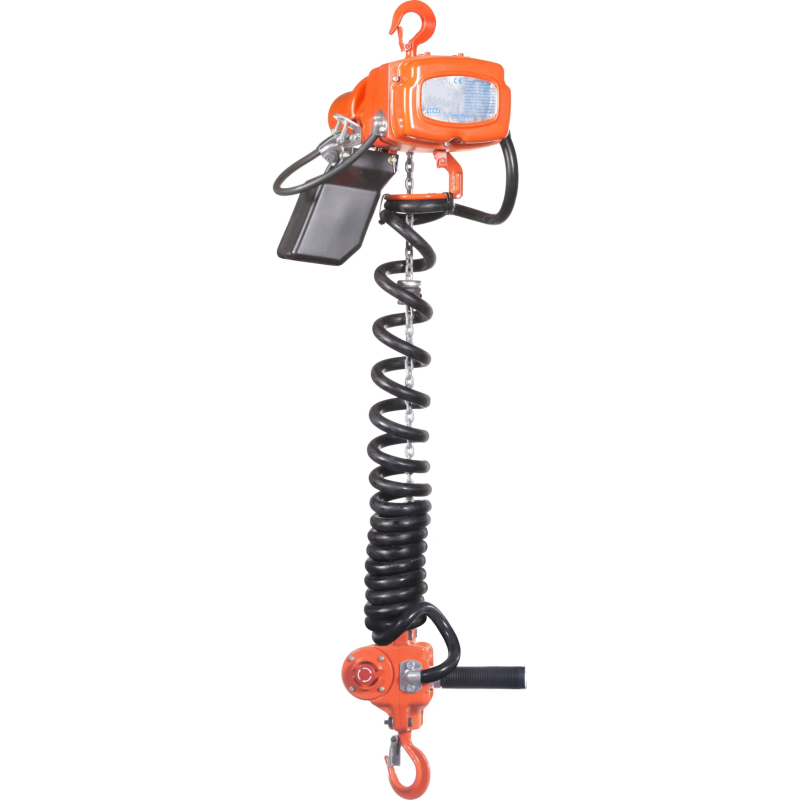

Elephant ALHVDH 230 V – compact aluminium electric chain hoist - 250 kg - 2.5 m
The ALHVDH hoist features a compact aluminium housing with a very low tare weight, making it suitable for a wide range of applications. Lifting speed is variable (0.9 – 10 m/min) and is set by turning the handle. A slip‑clutch protects against overload and the self‑locking brake holds the load at any desired height. If overloaded, the hook bends gradually rather than snapping.
Key Features
| Feature | Specification |
|---|---|
| Capacity (WLL) | 0.25 t (250 kg) |
| Lifting height | 2.5 m (max. distance between top and lower hook) |
| Lifting speed | 0.9 – 10 m/min (variable via handle) |
| Motor | 0.6 kW (FEM 9.511, 1 Am) |
| Enclosure | Aluminium, IP54 |
| Insulation class | B |
| Load chain | Galvanised DAT‑8 (Grade 8) |
| Brake | Self‑locking brake holds the load at any height |
| Slip‑clutch | Overload protection |
| Operation | Works on the lower hook; spiral control cable wrapped around the load chain |
| Standard delivery | 2.5 m lifting height, 4 m power cable, plastic chain container for 3 m chain |
| Options | Push trolley (manual) |
| CE marking | EN 818‑7, EN 12100, EN 14492 |
| Weight | 673 kg |
Technical data
| Attribute | Value |
|---|---|
| WLL | 0.25 t |
| Lifting height | 2.5 m |
| Lifting speed | 0.9 – 10 m/min (variable) |
| Number of falls | 1 |
| Motor | 0.6 kW |
| Weight | 673 kg |
| Construction height | not specified |
| Load‑chain diameter | not specified |
Standard delivery
- 2.5 m lifting height (max. distance between top and lower hook)
- 4 m power cable
- Plastic chain container for chain up to 3 m
- Trolley not included (push trolley available as an option)
Optional accessories (on request)
- Push trolley (manual)
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB0513205 |
| SKU | SB0513205 |
| EAN | 9506428151696 |
