Elephant Alpha 230 V Electric Chain Hoist – 0.1‑0.5 t – 1‑2‑Speed – Lifting Height 3–10 m
Elephant Alpha 230 V compact aluminium electric chain hoist, 0.1‑0.5 t capacity, 1‑ or 2‑speed. Slip‑clutch, self‑locking brake, IP54 enclosure, CE‑marked to EN 818‑7, EN 12100, EN 14492.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

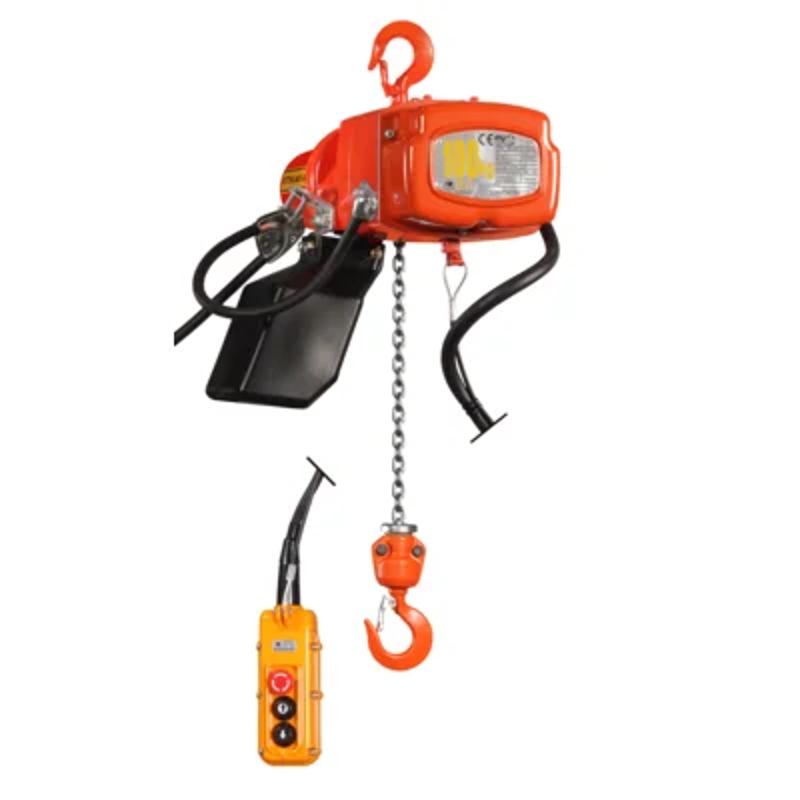

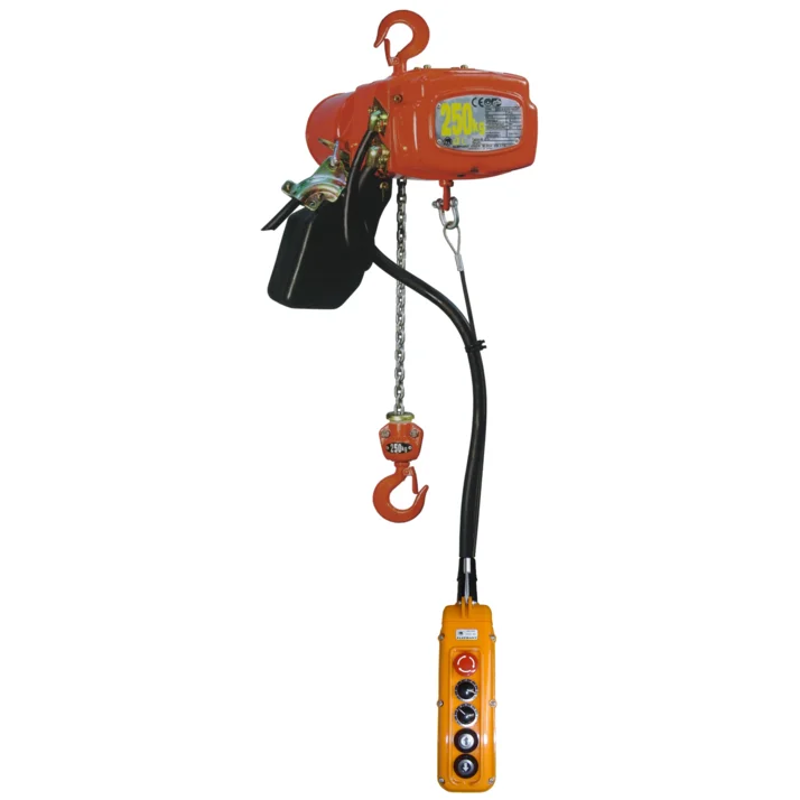

Elephant Alpha 230 V – lightweight aluminum electric chain hoist
The Alpha line pairs a compact aluminum housing with high‑performance components. With 1‑ or 2‑speed options (ALH, ALHB, ALHV) and a high lifting speed, the hoist is perfect for fast, ergonomic lifting in machine‑building, assembly and maintenance environments.
Key Features
| Feature | Description |
|---|---|
| Capacity (WLL) | 0.1 t, 0.16 t, 0.25 t or 0.5 t (different model numbers) |
| Speed options | ALH – single speed, ALHB – two‑speed, ALHV – variable |
| Lifting height | 3 – 10 m (max. distance between top and bottom hook) |
| Control voltage | 230 VAC, direct‑control (no extra power supply) |
| Motor | 0.3 kW (0.1 t) or 0.6 kW (≥ 0.16 t) |
| Lifting speed | 13 m/min (0.1 t ALH), 1‑13 m/min (variable), 15 m/min (≥ 0.16 t) |
| Load chain | Galvanised DAT‑8 chain, 4 mm × 12 mm |
| Enclosure | Aluminium, IP54 |
| Brake | Self‑locking brake holds the load at any height |
| Slip‑clutch | Protects against overload |
| Overload behaviour | Hook bends gradually, does not snap suddenly |
| Number of falls | 1 (standard) – 2 optional |
| Weight | 43 kg (0.1 t) up to 415 kg (0.5 t) |
| CE marking | EN 818‑7, EN 12100, EN 14492 |

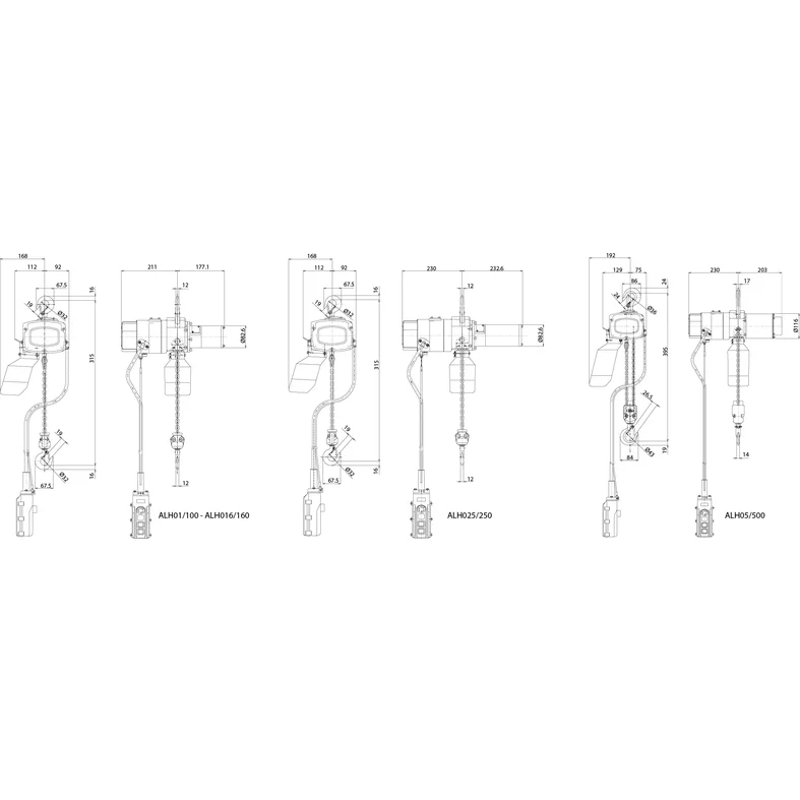

Technical data

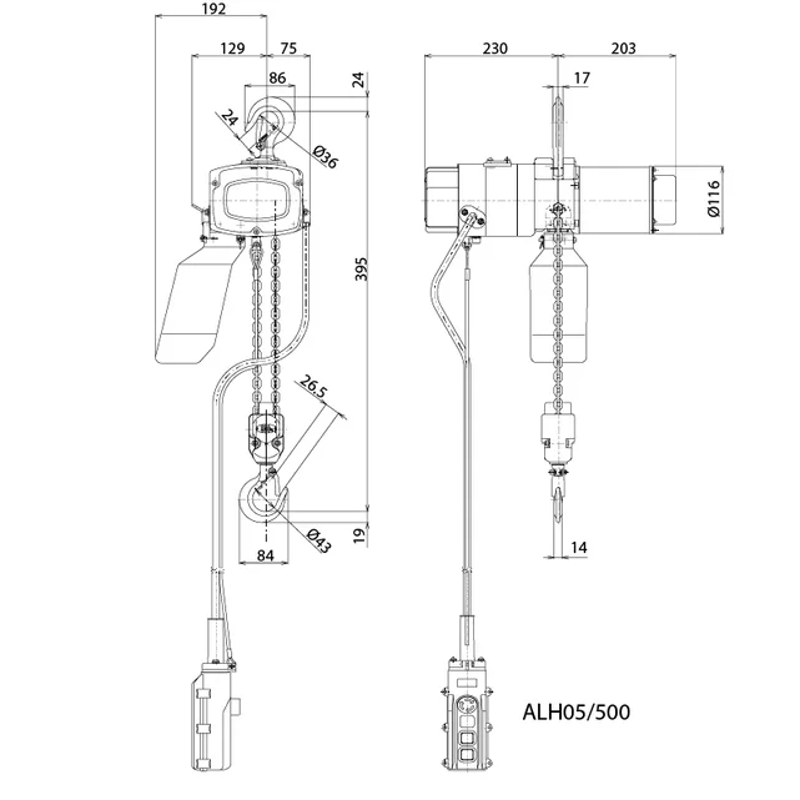

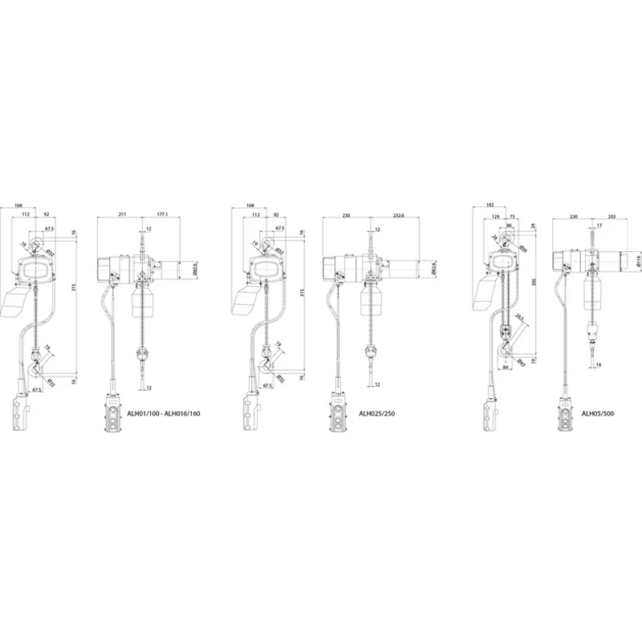

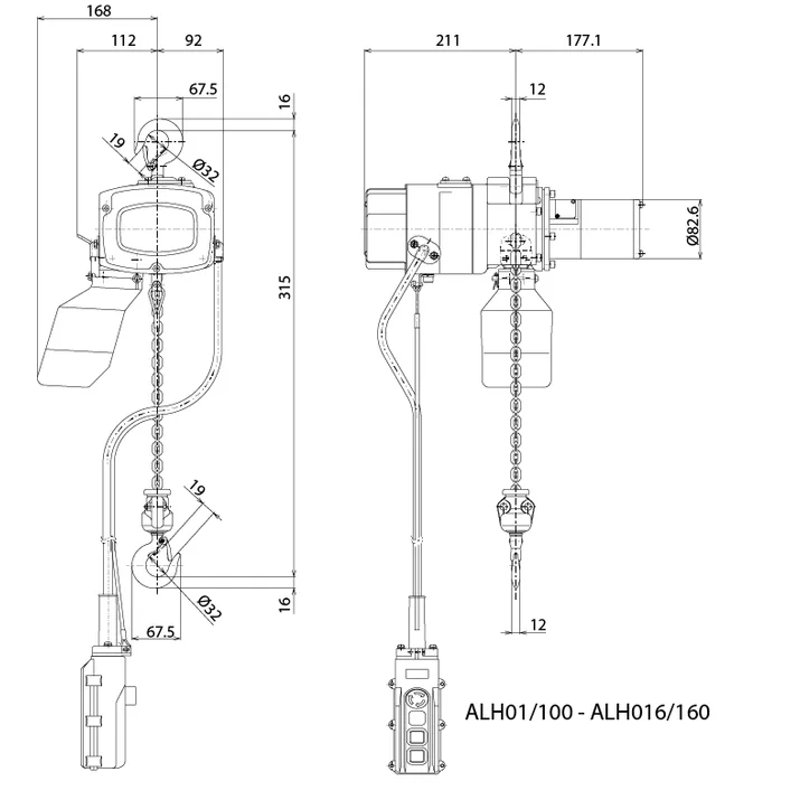

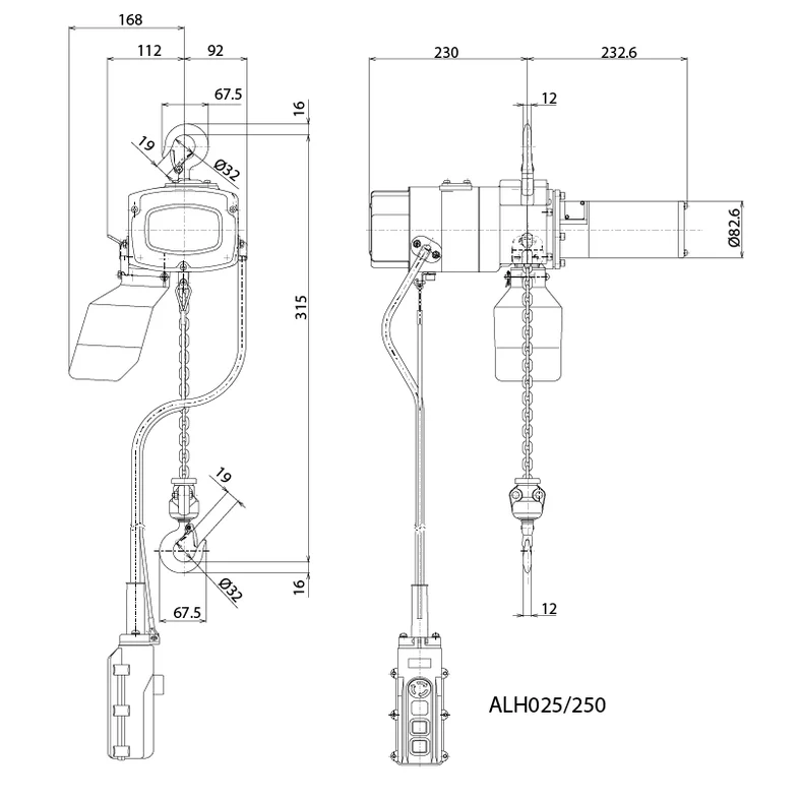

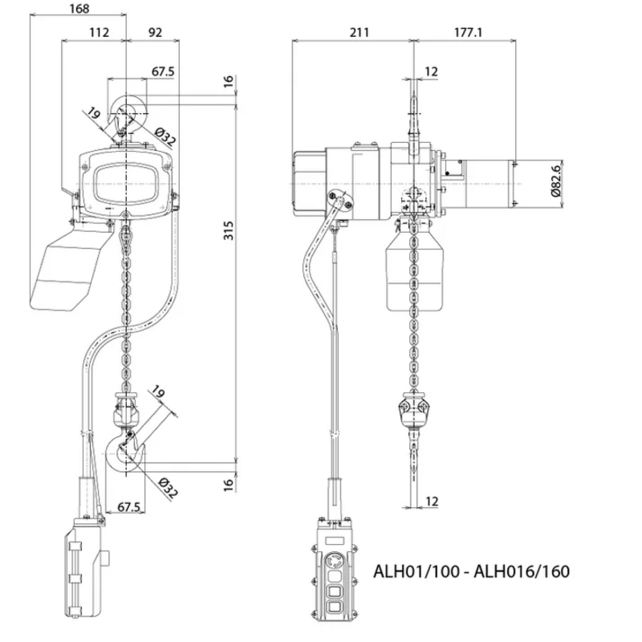

| Capacity | Example model | Motor kW | Lifting speed (m/min) | Max. lifting height (m) | Weight (kg) |
|---|---|---|---|---|---|
| 0.1 t | ALH/100KG/3M, ALHB/100KG/3M, ALHV/100KG/3M | 0.3 kW | 13 / 1‑13 | 3‑10 | 43 kg |
| 0.16 t | ALH/160KG/3M, ALHB/160KG/3M, ALHV/160KG/3M | 0.6 kW | 15 / 1‑15 | 3‑10 | 325 kg |
| 0.25 t | ALH/250KG/3M, ALHB/250KG/3M, ALHV/250KG/3M | 0.6 kW | 10 / 1‑10 | 3‑10 | 325 kg |
| 0.5 t | ALH/500KG/3M, ALHB/500KG/3M, ALHV/500KG/3M | 0.6 kW | 5 / 0.5‑5 | 3‑10 | 415 kg |
Standard delivery
- 3 m lifting height (maximum distance between top and bottom hook)

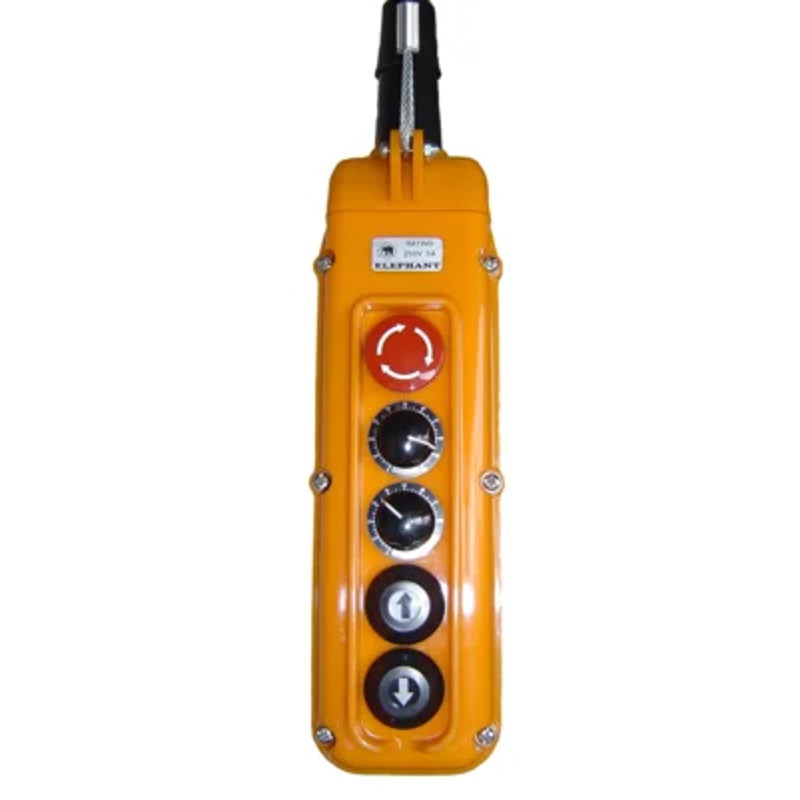

- 1.8 m control cable (direct 230 V control)
- 4 m power cable
- Plastic chain bucket for up to 6 m chain (or a plastic bag for longer chain)
- Trolley not included
Optional accessories (on request)
- Increased lifting and/or operating height
- Larger chain bucket (> 3 m)
- Radio remote control
- Push‑ or electric trolley
Marking & standards
- CE‑marked in accordance with EN 818‑7, EN 12100, EN 14492
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB05130093 |
| SKU | SB05130093 |
| EAN | 9508949815545 |
