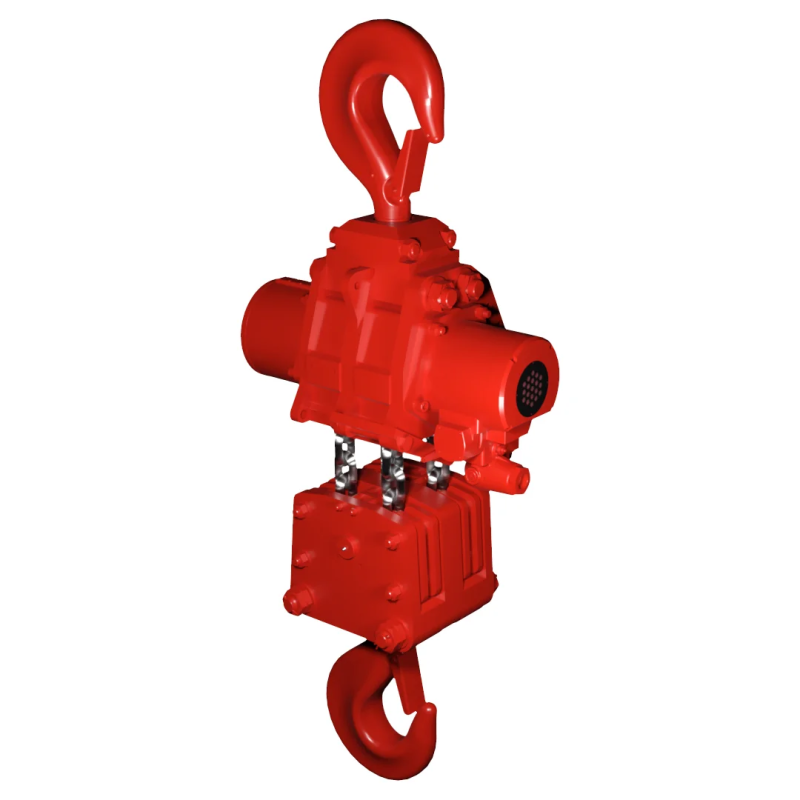

Red Rooster TMH Heavy Duty Air Chain Hoist – 50 & 60 tonnes
The Red Rooster TMH series air chain hoists for 50 and 60 tonnes offer the highest lifting speed with the lowest headroom on the hoist market. With mechanism classification M3 for the TMH-60 (60t) and M2 for the TMH-600 (50t), these hoists are extremely reliable and will guarantee the continuity of your process. The TMH hoists are designed with a supporting eye for easy installation.
Standard Features
| Feature | Description |
|---|---|
| Speed control | Precise variable speed control (cord control) |
| Positioning | Optimum load control, very precise positioning |
| Safety | Mechanical end stop system |
| Load limiter | Built-in without loss of headroom |
| Air shut off | Main air shut off valve |
| Noise level | Low – 84 dBA |
| Working air pressure | 0.4 – 0.63 MPa (4 – 6.3 Bar) |
| Exhaust air | Piped away exhaust air |
| Classification | M3 (60t) / M2 (50t) mechanism classification |
| Installation | Supporting eye for easy installation |
ATEX Compliance
-
According to EC Directive 94/9/EC (Ex Classification)
Recommendation
We strongly recommend using an air handling unit (e.g., from SMC) – offered separately.
Marking & Standards
-
CE-marked according to EN 14492-2
Technical Specifications

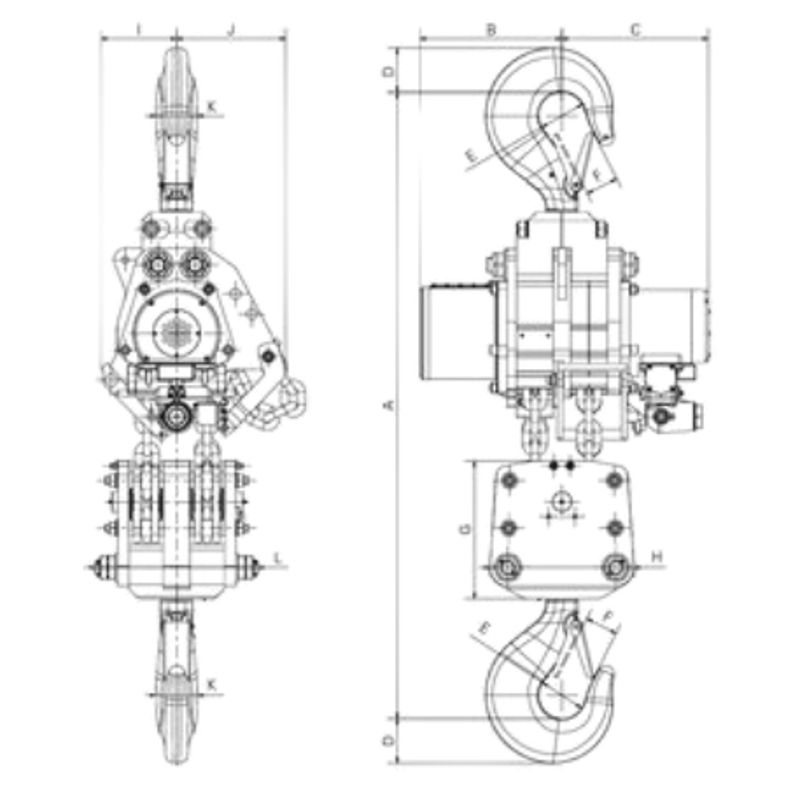

| WLL (ton) | Falls | Control type | Speed unloaded (m/min) | Air cons. lift (l/sec) | Air cons. lower (l/sec) | Speed loaded (m/min) | Speed lower (m/min) | Weight at 3m HOL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 4 | Cord control | 1.3 | 108 | 180 | 0.7 | 1.5 | 1,800 | 1,790 | 433 | 446 | 134 | ø140 | 100 | 420 | 440 | 230 | 333 | 125 | 496 |
| 50 | 4 | Pendant control | 1.3 | 108 | 180 | 0.7 | 1.5 | 1,800 | 1,790 | 433 | 446 | 134 | ø140 | 100 | 420 | 440 | 230 | 333 | 125 | 496 |
| 60 | 4 | Cord control | 1.3 | 108 | 167 | 0.5 | 1.3 | 1,800 | 1,790 | 433 | 446 | 134 | ø140 | 100 | 420 | 440 | 230 | 333 | 125 | 496 |
| 60 | 4 | Pendant control | 1.3 | 108 | 167 | 0.5 | 1.3 | 1,800 | 1,790 | 433 | 446 | 134 | ø140 | 100 | 420 | 440 | 230 | 333 | 125 | 496 |
Variants (Loaded Speed)
-
Red Rooster TMH Heavy Duty Air Chain Hoist 50t, 0.7 m/min
-
Red Rooster TMH Heavy Duty Air Chain Hoist 60t, 0.5 m/min
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SBTMHH0702999 |
| SKU | SBTMHH0702999 |
| EAN | 9509488466670 |
