Red Rooster TCR/TCS Air Chain Hoist with Pneumatic Trolley – 250‑2000 kg
Red Rooster TCR/TCS air chain hoist with built-on pneumatic trolley. 250‑2000 kg capacity. Precise variable speed control, 4-button pendant, endstop system, load limiter, 4-wheel trolley, low noise. ATEX certified.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

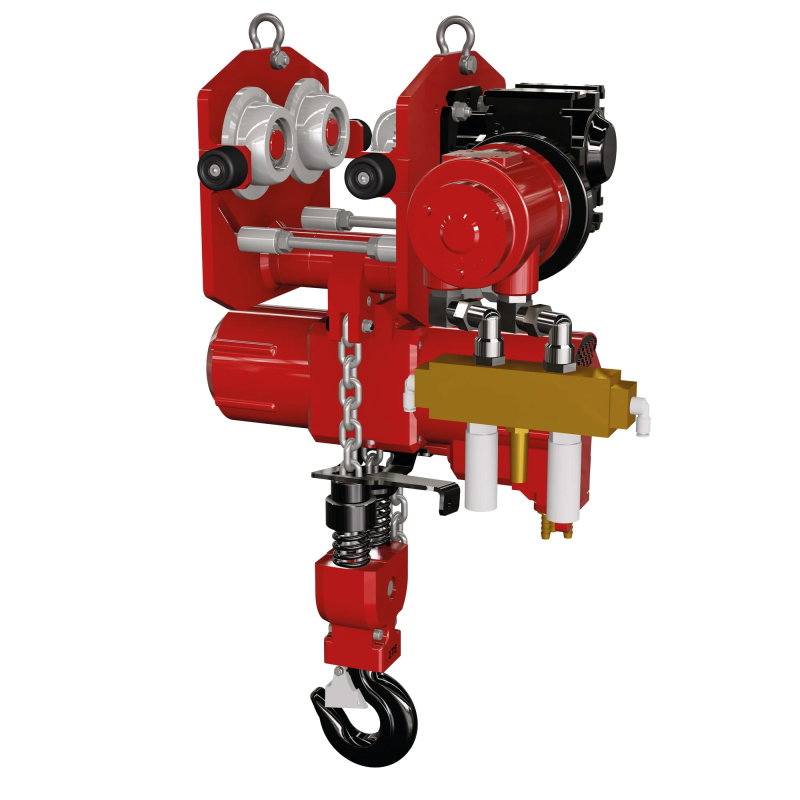

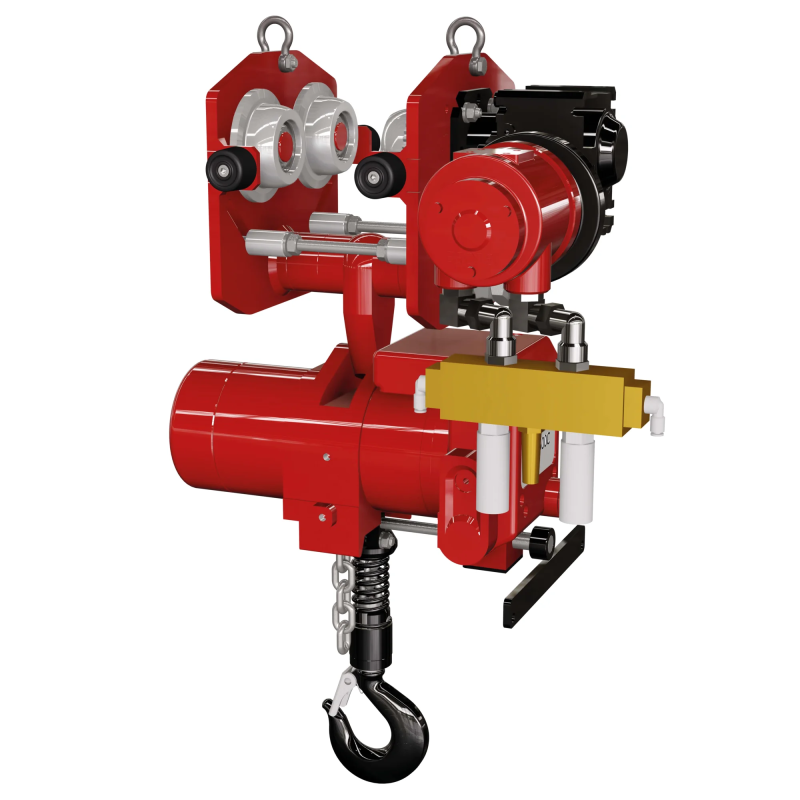

Red Rooster TCR/TCS Air Chain Hoist with Built-on Pneumatic Trolley – 250‑2000 kg
The Red Rooster TCR/TCS combines an air-powered chain hoist with an integrated pneumatic trolley, creating a complete lifting and traversing solution for industrial environments. Designed for loads from 250 kg up to 2000 kg, this unit eliminates the need for separate hoist and trolley components, saving installation time and reducing overall system complexity. The TCR-series features a robust cast steel body for heavy industrial use, while the TCS-series offers a lightweight aluminium housing for high-speed material handling applications. With precise variable speed control, built-in load limiting, and ATEX certification, the Red Rooster TCR/TCS delivers safe, reliable performance in demanding workplaces.
Standard Features
| Feature | Description |
|---|---|
| Speed control | Precise variable speed control (cord and pendant) |
| Positioning | Optimum load control, very precise positioning |
| Control | 4-button pendant controlling both hoist and trolley |
| Design | Compact |
| Safety | Endstop system |
| Load limiter | Built-in without loss of headroom |
| Trolley | 4-wheel trolley |
| Flange compatibility | Suits various flange profiles (parallel or tapered) |
| Anti-tilt | Anti-tilt & anti-drop plates |
| Noise level | Low |
| Air pressure | 0.4 – 0.63 MPa (4 – 6.3 Bar) |
Optional Features
| Option | Details |
|---|---|
| Marine / Corrosion-resistant | Available |
| Paint systems | C2 (Industrial) to C5 (Offshore) – Red standard, other RAL on request |
| Pendants | Choice available |
| Radio control | For electro-pneumatic controls |
| Control systems | Customizable |
| Chain collectors | PVC, galvanised, or stainless steel |
| Hooks/clevis | Various types |
| Air supply systems & valves | Available |
| Air Service unit | Available |
| Piped away exhaust air | Yes |
| In-house design | For "specials" |
| Festoon systems | Available |
| Main air shut-off valve | Available |
ATEX Compliance
-
According to EC Directive 94/9/EC (Ex Classification)
Recommendation
We strongly recommend using an air handling unit (e.g., from SMC) – offered separately.
Technical Specifications
| WLL (ton) | Falls | Speed unloaded (m/min) | Air cons. (l/sec) | Speed loaded (m/min) | Min. hose (inch) | Weight (kg) |
|---|---|---|---|---|---|---|
| 0.25 | 1 | 20.5 | 25 | 10.5 | 1/2" | 31 |
| 0.25 | 1 | 19 | 15 | 9.3 | 1/2" | 32 |
| 0.5 | 2 | 9.5 | 15 | 4.6 | 1/2" | 34 |
| 0.5 | 1 | 33 | 28 | 17 | 1/2" | 41 |
| 1 | 1 | 11.3 | 25 | 6 | 1/2" | 34 |
| 1 | 2 | 16 | 28 | 8.5 | 1/2" | 45 |
| 2 | 2 | 5.7 | 25 | 3 | 1/2" | 40 |
Series Overview
| Series | Housing Material | Best For |
|---|---|---|
| TCR | Robust cast steel | Heavy industrial use |
| TCS | Aluminium (high speed) | Material handling |
Standard Delivery
-
Complete air chain hoist with built-on pneumatic trolley
-
4-button pendant control
-
Red finish (standard)
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB0702999 |
| SKU | SB0702999 |
| EAN | 9508448512693 |
