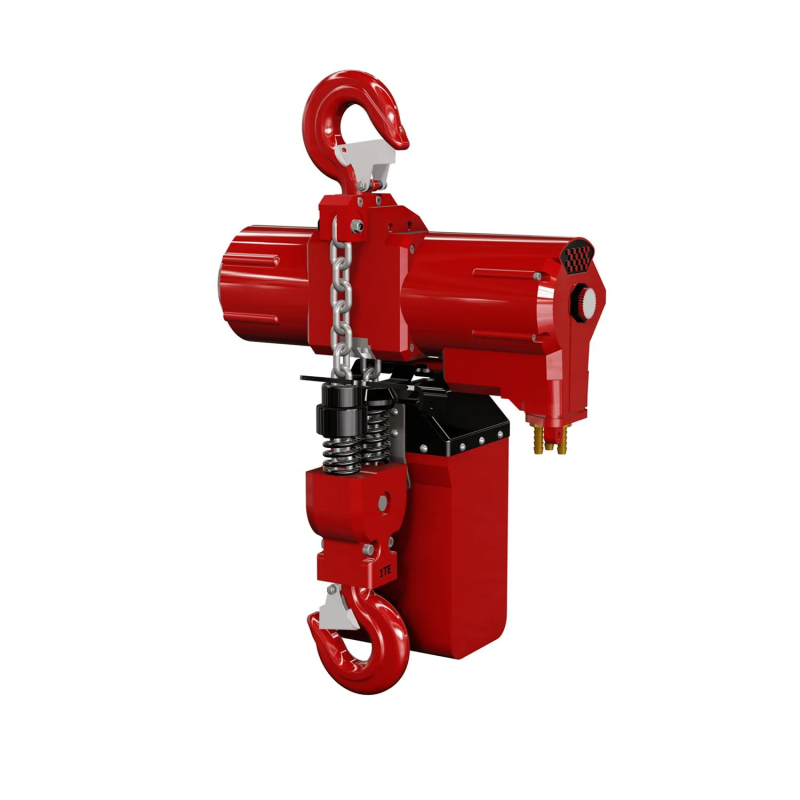

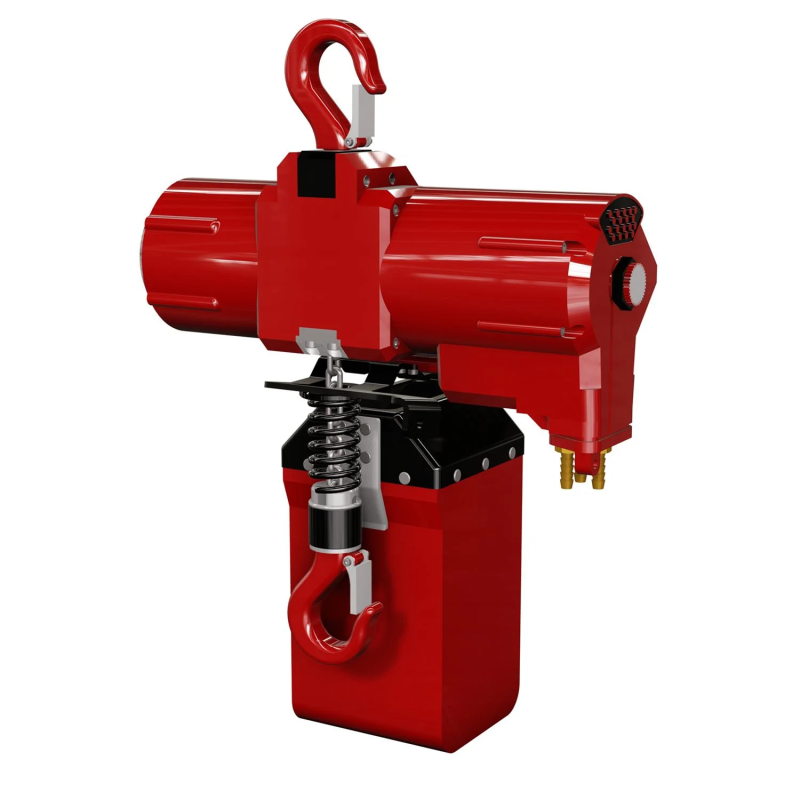

Red Rooster TCS High Speed Air Chain Hoist – 500‑980 kg
The Red Rooster TCS series high speed air chain hoists are especially developed for the material handling industry, including warehousing and packaging applications. These hoists feature very high lifting and lowering speeds, making them very suitable for applications with long lifting heights. The maximum speed is adjustable, with lifting and lowering speeds independent from each other. The compact and lightweight aluminium housing makes these hoists easy to install and operate.
Standard Features
| Feature | Description |
|---|---|
| Speed | Very high lifting and lowering speeds |
| Speed adjustment | Maximum speed adjustable, lifting & lowering independent |
| Speed control | Precise variable speed control (cord and pendant) |
| Positioning | Optimum load control, very precise positioning |
| Design | Compact and light weight |
| Exhaust | Exhaust hose easy to assemble |
| Safety | Endstop system |
| Motor cooling | Air motor cooled by exhaust air (internal) |
| Control | Cord control or pendant control |
| Noise level | Low |
| Housing | Aluminium |
Optional Features
| Option | Details |
|---|---|
| Marine / Corrosion-resistant | Available |
| Paint systems | C2 to C5 – Red standard, other RAL on request |
| Pendants | Choice available |
| Radio control | For electro-pneumatic controls |
| Chain collectors | PVC, galvanised, or stainless steel |
| Hooks / clevis | Various types |
| Air Service unit | Recommended |
| Festoon systems | Available |
ATEX Compliance
-
According to EC Directive 94/9/EC (Ex Classification)
Recommendation
- We strongly recommend using an air handling unit (e.g., from SMC) – offered separately.
Technical Specifications
| WLL (kg) | Falls | Speed loaded (m/min) | Speed lower (m/min) | Air cons. lift (l/sec) | Weight (kg) |
|---|---|---|---|---|---|
| 500 | 1 | 17 | 34 | 28 | 19 |
| 980 | 2 | 8.5 | 17 | 28 | 24 |
Standard Delivery
-
Complete high-speed air chain hoist
-
Cord control or pendant control
-
Red finish (standard)
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SBTCS0702999 |
| SKU | SBTCS0702999 |
| EAN | 9501319383972 |
