Red Rooster TCR Low Headroom Air Chain Hoist – 500‑2000 kg
Red Rooster TCR low headroom air chain hoist for applications where standard trolley headroom is too large. Hoist built into trolley frame for minimum hook-to-beam distance. New drive motor, low maintenance, accurate speed control. Available as spark resi
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Red Rooster TCR Low Headroom Air Chain Hoist – 500‑2000 kg

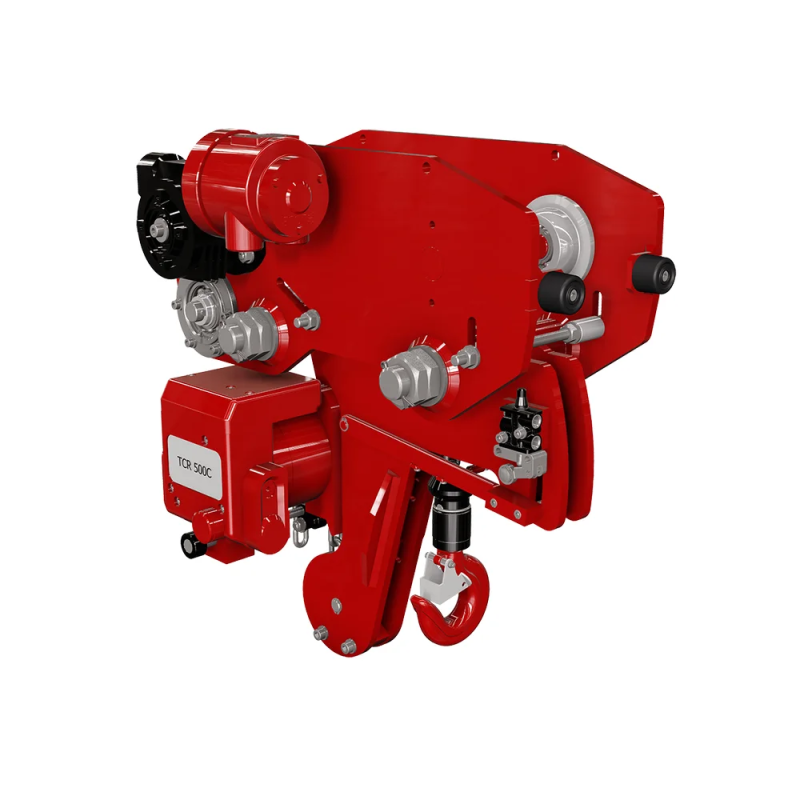

The Red Rooster TCR Low Headroom (LHR) series is designed for applications where a standard trolley headroom is too large. With this special version, the hoist is built into the frame of the trolley to decrease the distance from the lower hook to the beam to an absolute minimum. This range features a state-of-the-art new drive motor for the trolley, offering low maintenance and reduced wear through fewer parts.
Standard Features
| Feature | Description |
|---|---|
| Drive motor | State-of-the-art new drive motor for the trolley |
| Maintenance | Low maintenance and wearing through fewer parts |
| Hoist speed control | Accurate speed control at lifting and lowering |
| Trolley speed control | Accurate speed control of the trolley |
| Beam adjustment | Adjustable to a range of beam sizes |
| Versions | Standard (LHATP) or spark-resistant (LHATPSR) with ATEX |
| Spark-resistant features | Bronze wheels, bronze-coated hooks for explosive areas |
Optional Features
| Option | Details |
|---|---|
| Rack and pinion drive | Available |
| Marine paint | With certificate |
| ATEX specifications | Group II2 & II3 |
Recommendation
- We strongly recommend using an air handling unit (e.g., from SMC) – offered separately.
Technical Specifications
| WLL (ton) | Falls | Type | Speed loaded (m/min) | Speed lower (m/min) | Air cons. hoist (l/sec) | Air cons. trolley (l/sec) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 0.5 | 1 | TCR-500-LHR | 10.5 | 17.9 | 25 | 25 | 85 |
| 1 | 2 | TCR-1000/2-LHR | 5.3 | 9 | 25 | 25 | 90 |
| 1 | 1 | TCR-1000-LHR | 6 | 10.3 | 25 | 25 | 90 |
| 2 | 2 | TCR-2000-LHR | 3 | 5.2 | 25 | 25 | 105 |
Standard Delivery
-
Complete low headroom air chain hoist with built-in trolley
-
Red finish (standard)
-
Adjustable beam fit
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SBTCRL0702999 |
| SKU | SBTCRL0702999 |
| EAN | 9503211283619 |
