Red Rooster TCR Mini Air Chain Hoist – 125‑500 kg
Red Rooster TCR mini air chain hoist for 125‑500 kg. Low weight (TCR-125/250 only 7 kg, TCR-500/2 only 9 kg with 3m lift). Precise variable speed control, compact design, aluminium housing, low noise. ATEX certified. Stainless steel chain option for tank
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

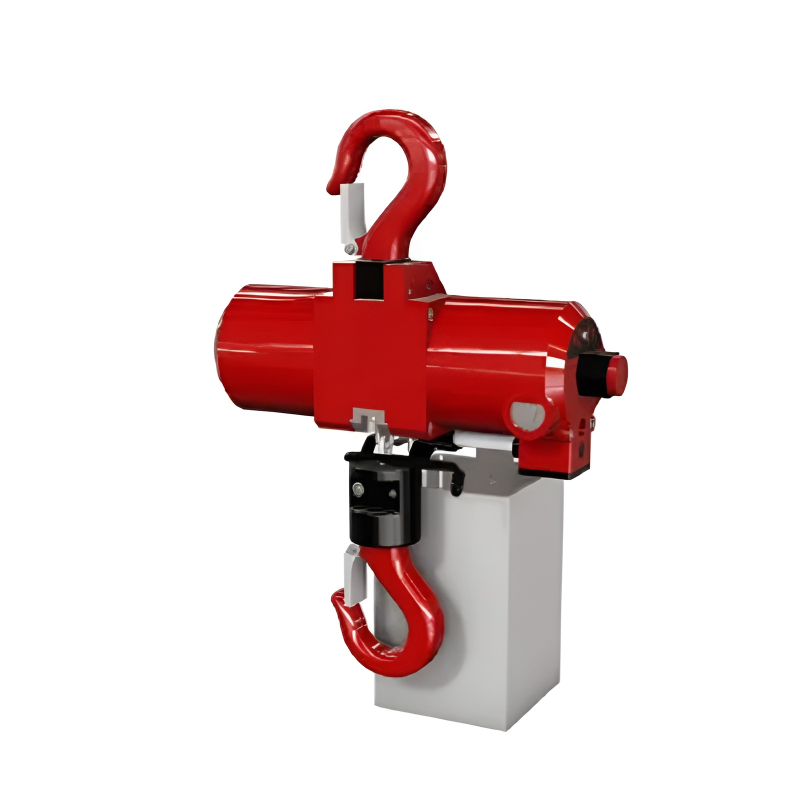

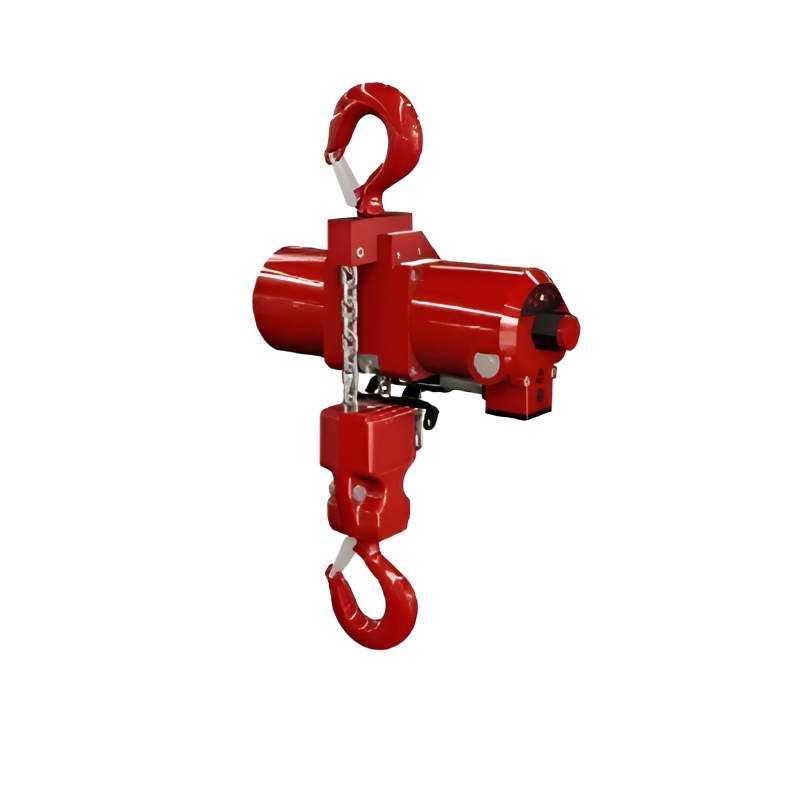

Red Rooster TCR Mini Air Chain Hoist – 125‑500 kg – Lightweight & Portable
The Red Rooster Mini Air Chain Hoists are besides industrial use also very suitable for material handling. Due to the low weight, these hoists are very suitable for service applications. The TCR-125 and TCR-250 weigh only 7 kg including 3 meter lift, while the TCR-500/2 weighs only 9 kg. Special for use in tank cleaning installations, we recommend stainless steel chain.
Standard Features
| Feature | Description |
|---|---|
| Weight | Very low – TCR-125/250 only 7 kg, TCR-500/2 only 9 kg (with 3m lift) |
| Portability | Very mobile, easy mounting |
| Speed control | Precise variable speed control (cord and pendant) |
| Design | Very compact |
| Housing | Robust aluminium housing |
| Motor cooling | Air motor cooled by exhaust air (internal) |
| Control | Cord control or pendant control |
| Noise level | Low |
Optional Features
| Option | Details |
|---|---|
| Marine / Corrosion resistant | Available |
| Paint systems | C2 to C5 – Red standard, other RAL on request |
| Stainless steel chain | Recommended for tank cleaning installations |
| Pendants | Choice available |
| Radio control | For electro-pneumatic controls |
| Chain collectors | PVC, galvanised, or stainless steel |
| Hooks / clevis | Various types |
| Air Service unit | Recommended |
| Festoon systems | Available |
ATEX Compliance
-
According to EC Directive 94/9/EC (Ex Classification)
Recommendation
- We strongly recommend using an air handling unit (e.g., from SMC) – offered separately.
Technical Specifications
| WLL (kg) | Lifting height (m) | Falls | Type | Speed loaded (m/min) | Speed lower (m/min) | Air cons. lift (l/sec) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 125 | 3 | 1 | TCR125C | 14 | 16 | 11.7 | 7 |
| 125 | 3 | 1 | TCR125DPE | 12.8 | 13 | 11.7 | 8.6 |
| 250 | 3 | 1 | TCR250C | 9.3 | 17 | 11.7 | 7 |
| 250 | 3 | 1 | TCR250DPE | 8.1 | 13 | 11.7 | 7 |
| 500 | 3 | 2 | TCR500DP2 | 4.6 | 9 | 11.7 | 9 |
Standard Delivery
-
Complete mini air chain hoist with 3m lift
-
Cord control or pendant control
-
Red finish (standard)
-
Aluminium housing
Special Recommendation
-
For tank cleaning installations: stainless steel chain recommended
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SBTCRM0702999 |
| SKU | SBTCRM0702999 |
| EAN | 9506324221516 |
