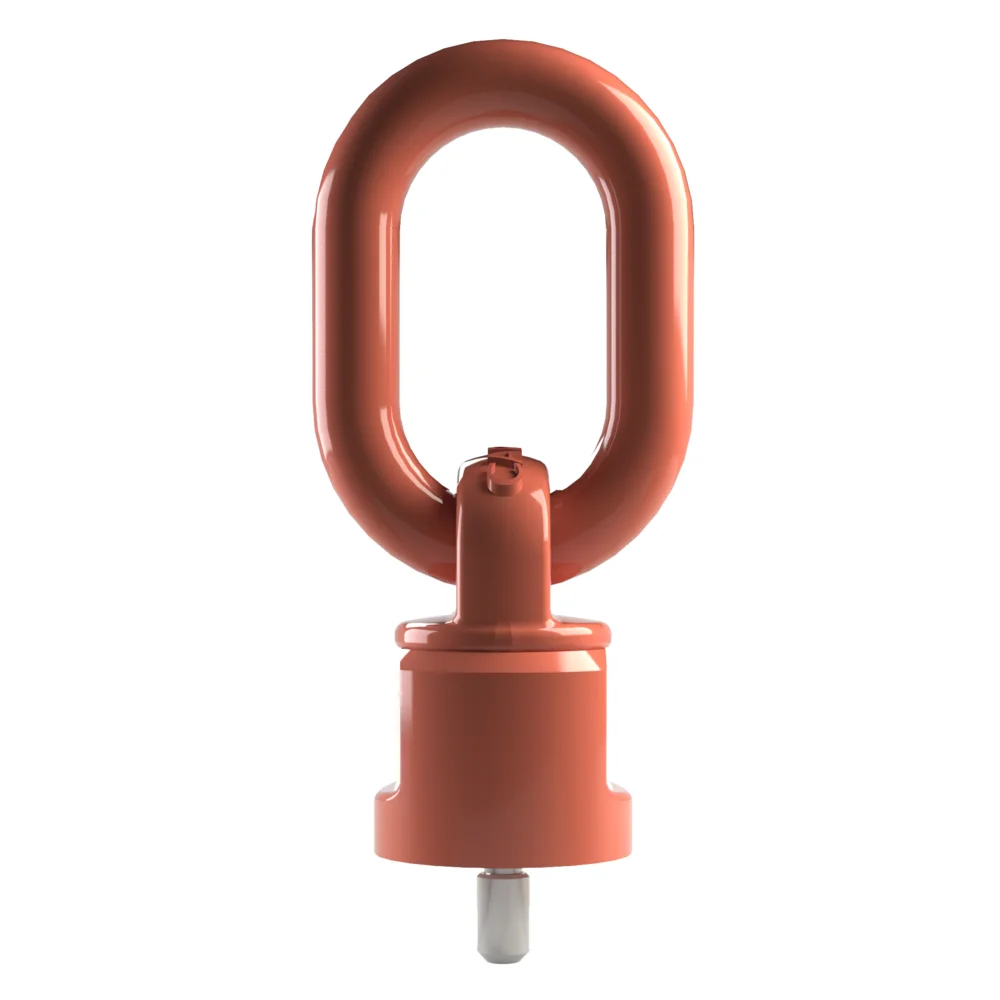

C800X Lifting Point Grade 10 – 360° Rotatable, 180° Foldable

Create your own review

EUR 120,00 Excl. tax

EUR 145,20 Incl. tax

Excl. Shipping costs

Rotatable through 360° and foldable 180° | Rotates into the correct lifting direction

In stock

3-4 days

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

C800X Lifting Point Grade 10 – 360° Rotatable, 180° Foldable

C800X Lifting Point Grade 10 – 360° Rotatable, 180° Foldable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.

Key features

Rotatable through 360° and foldable 180°
Rotates into the correct lifting direction
Safety factor 4 in all loading directions
According to GS-OA 15-04 / EN1677

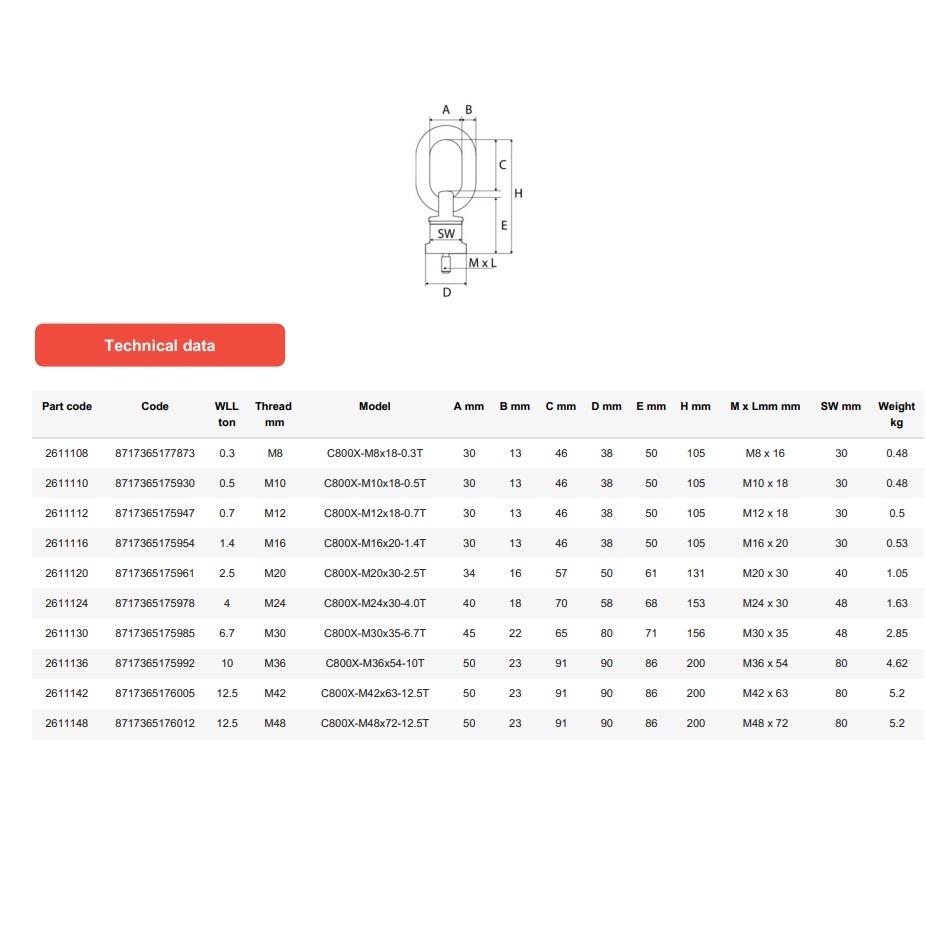

Technical specifications

Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)	M x L (mm)	SW (mm)	Weight (kg)	Salesbridges SKU
C800X-M8x18-0.3T	300	30	13	46	38	50	105	8 x 16	30	0.48	SB2611108
C800X-M10x18-0.5T	500	30	13	46	38	50	105	10 x 18	30	0.48	SB2611110
C800X-M12x18-0.7T	700	30	13	46	38	50	105	12 x 18	30	0.5	SB2611112
C800X-M16x20-1.4T	1400	30	13	46	38	50	105	16 x 20	30	0.53	SB2611116
C800X-M20x30-2.5T	2500	34	16	57	50	61	131	20 x 30	40	1.05	SB2611120
C800X-M24x30-4.0T	4000	40	18	70	58	68	153	24 x 30	48	1.63	SB2611124
C800X-M30x35-6.7T	6700	45	22	65	80	71	156	30 x 35	70	2.85	SB2611130
C800X-M36x54-10T	10000	50	23	91	90	86	200	36 x 54	80	4.62	SB2611136
C800X-M42x63-12.5T	12500	50	23	91	90	86	200	42 x 63	80	5.2	SB2611142
C800X-M48x72-12.5T	12500	50	23	91	90	86	200	48 x 72	80	5.2	SB2611148
