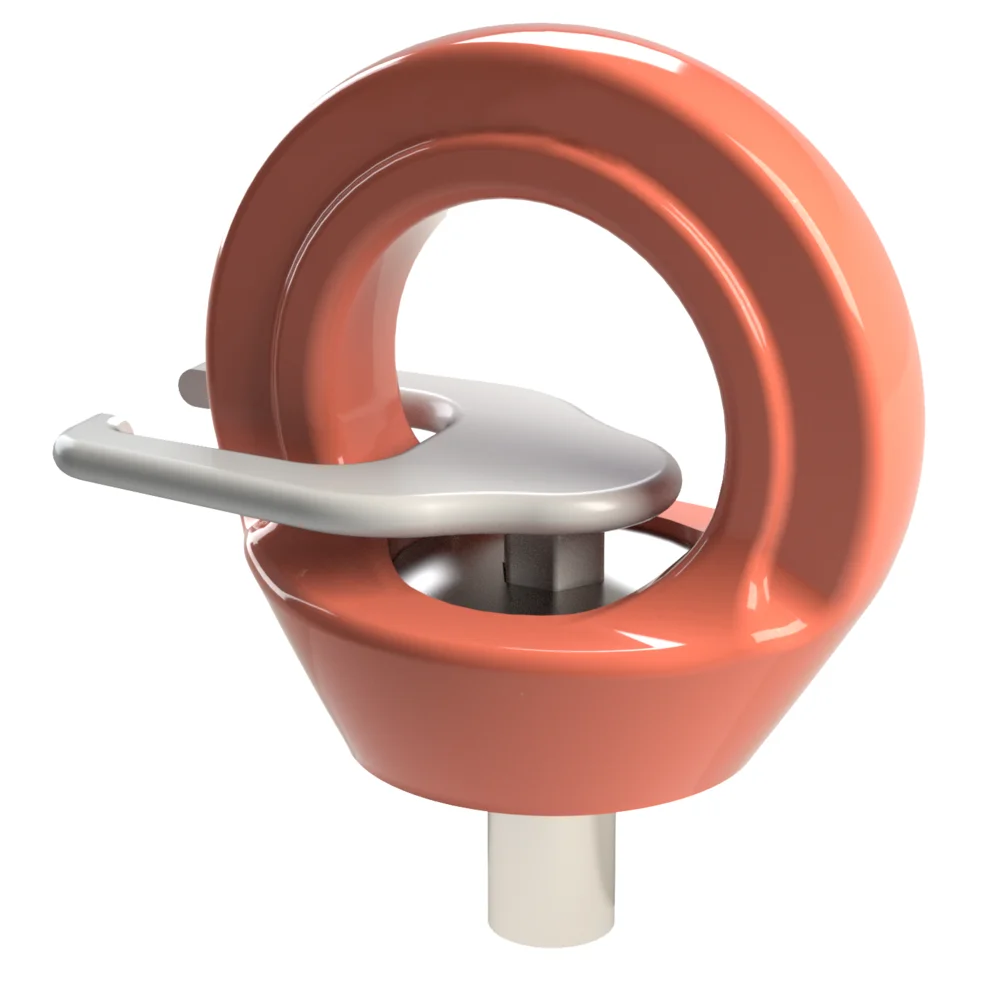

C807X+KEY Lifting Point Grade 10 – 360° Rotatable

Create your own review

EUR 60,00 Excl. tax

EUR 72,60 Incl. tax

Excl. Shipping costs

Rotatable through 360° | Tighten hand-tight in the load direction

In stock

3-4 days

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

C807X+KEY Lifting Point Grade 10 – 360° Rotatable

C807X+KEY Lifting Point Grade 10 – 360° Rotatable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.

Key features

Rotatable through 360°
Tighten hand-tight in the load direction
Safety factor 4 in all loading directions
Not rotatable under load
According to GS-OA 15-04 / EN1677

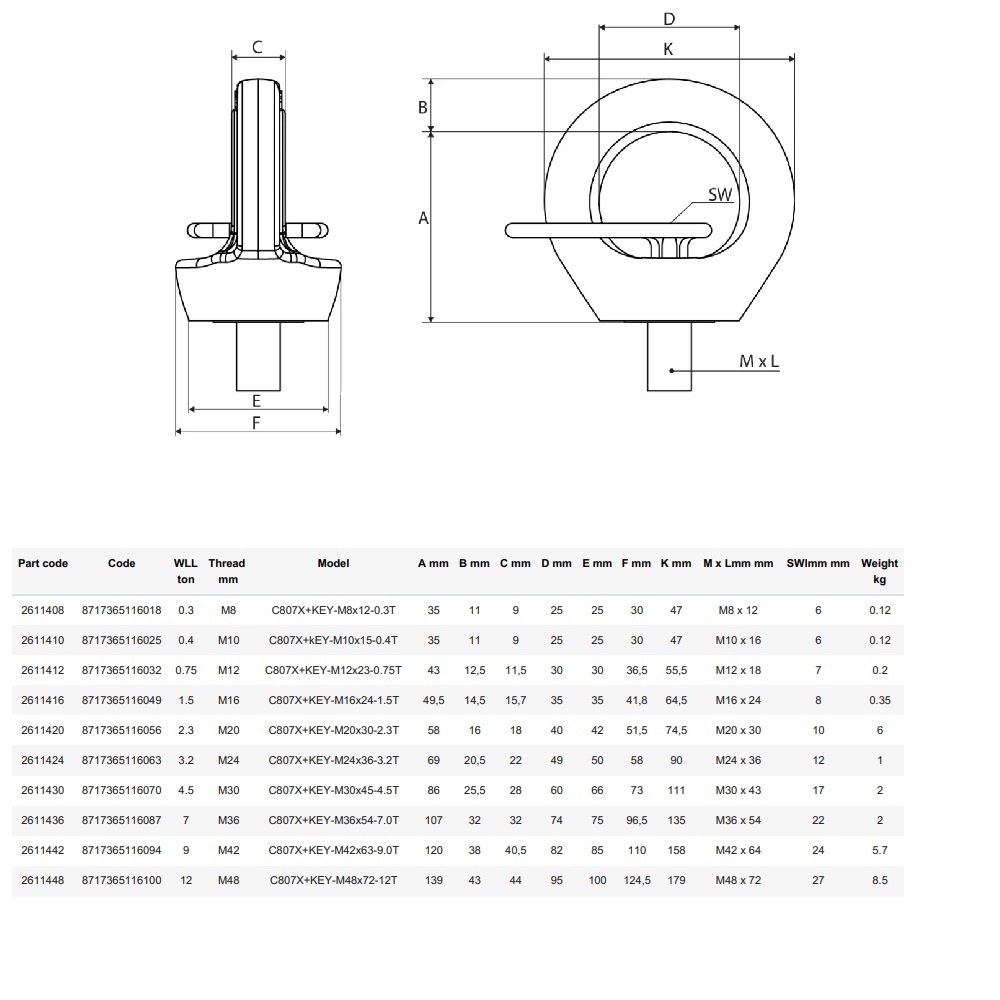

Technical specifications

Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	K (mm)	M x L (mm)	SWI (mm)	Weight (kg)	Salesbridges SKU
C807X+KEY-M8x12-0.3T	300	35	11	9	25	25	30	47	M8 x 12	6	0.3	SB2611408
C807X+KEY-M10x15-0.4T	400	35	11	9	25	25	30	47	M10 x 16	6	0.3	SB2611410
C807X+KEY-M12x23-0.75T	750	43	12.5	11.5	30	30	36.5	55.5	M12 x 18	7	0.46	SB2611412
C807X+KEY-M16x24-1.5T	1500	49.5	14.5	15.7	35	35	41.8	64.5	M16 x 24	8	0.9	SB2611416
C807X+KEY-M20x30-2.3T	2300	58	16	18	40	42	51.5	74.5	M20 x 30	10	1.15	SB2611420
C807X+KEY-M24x36-3.2T	3200	69	20.5	22	49	50	58	90	M24 x 36	12	2.05	SB2611424
C807X+KEY-M30x45-4.5T	4500	86	25.5	28	60	66	73	111	M30 x 43	17	3.12	SB2611430
C807X+KEY-M36x54-7.0T	7000	107	32	32	74	75	96.5	135	M36 x 54	22	6.7	SB2611436
C807X+KEY-M42x63-9.0T	9000	120	38	40.5	82	85	110	158	M42 x 64	24	9.5	SB2611442
C807X+KEY-M48x72-12T	12000	139	43	44	95	100	124.5	179	M48 x 72	27	13.55	SB2611448
