Product description

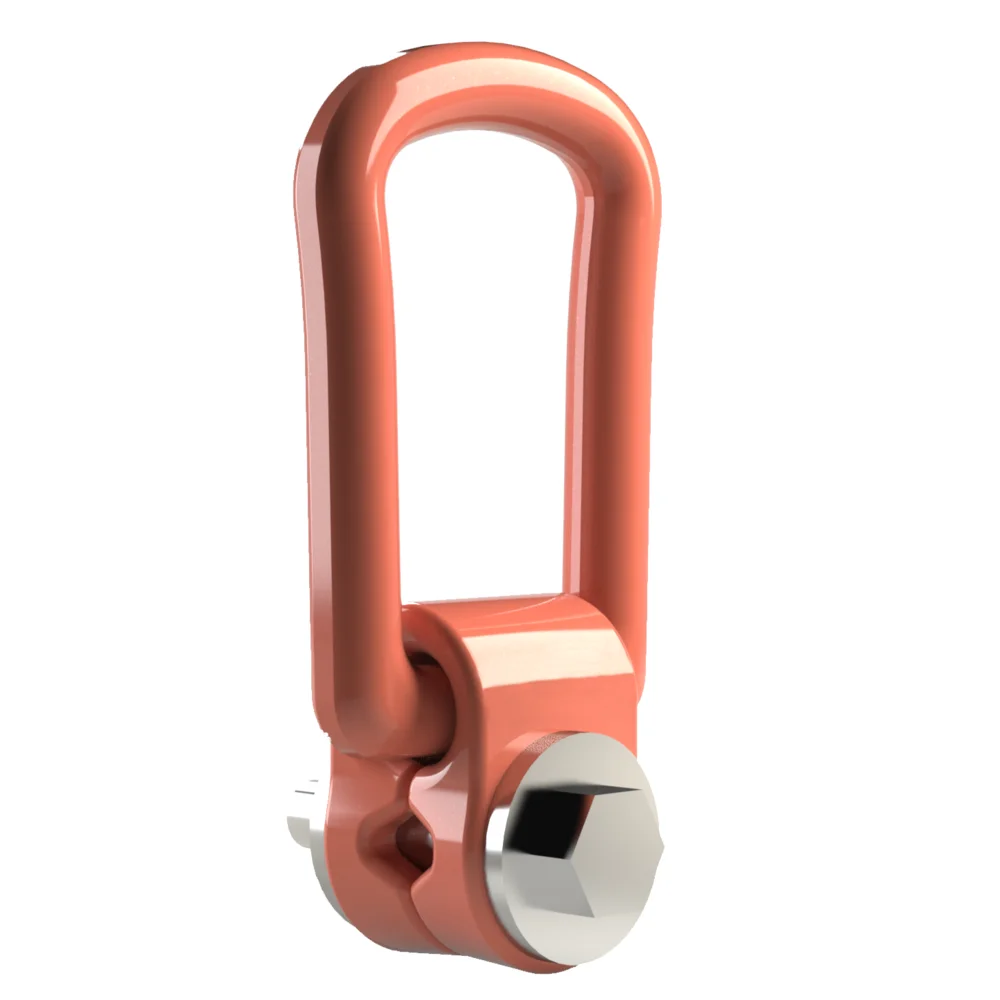

C806X Lifting Point Grade 10 – 360° Rotatable, 90° Foldable

C806X Lifting Point Grade 10 – 360° Rotatable, 90° Foldable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.

Key features

Rotatable through 360° and foldable 90°
Not rotatable under load
Safety factor 4 in all loading directions
According to GS-OA 15-04 / EN1677

Technical specifications

Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	K (mm)	M	L (mm)	SW (mm)	Weight (kg)	Salesbridges SKU
C806X-M8x15-0.3T	300	34	57	24	10	43	78	25	M8	15	13	0.275	SB2611208
C806X-M10x15-0.63T	630	34	57	24	10	42	78	25	M10	15	17	0.29	SB2611210
C806X-M12x23-1.0T	1000	38	66	30	13.5	40	85	32	M12	23	19	0.5	SB2611212
C806X-M16x24-1.5T	1500	38	66	30	13.5	38	85	32	M16	24	24	0.51	SB2611216
C806X-M20x31-2.5T	2500	55	87	48	16	54	111	45	M20	31	30	1.25	SB2611220
C806X-M24x37-4.0T	4000	55	87	48	16	51	111	45	M24	37	36	1.3	SB2611224
C806X-M30x45-5.0T	5000	66	109	54	22.5	62	145	60	M30	45	46	3.25	SB2611230
C806X-M36x50-7.0T	7000	66	109	54	22.5	60	145	60	M36	50	55	3.3	SB2611236
C806X-M42x75-10T	10000	78	136	62	28	86	190	70	M42	75	65	6.5	SB2611242
C806X-M42.x63-15T	15000	97	169	68	36	121	242	85	M42	63	65	11.2	SB2611243
C806X-M48x71-20T	20000	97	169	68	36	117	242	95	M48	71	75	11.6	SB2611248
