Product description

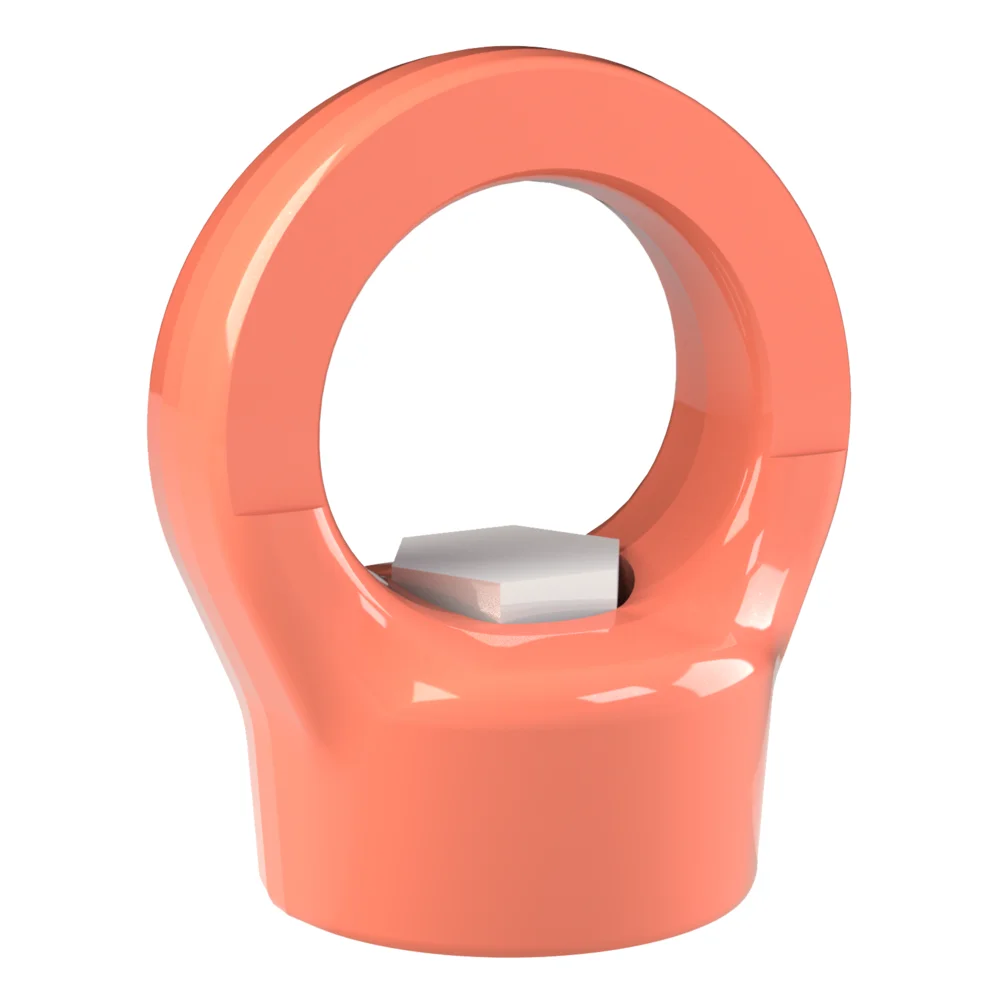

C810FX Lifting Point Grade 10 – 360° Rotatable

C810FX Lifting Point Grade 10 – 360° Rotatable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.

Key features

Rotatable through 360°
Tighten hand-tight in the load direction
Safety factor 4 in all loading directions
Not rotatable under load
According to GS-OA 15-04 / EN1677

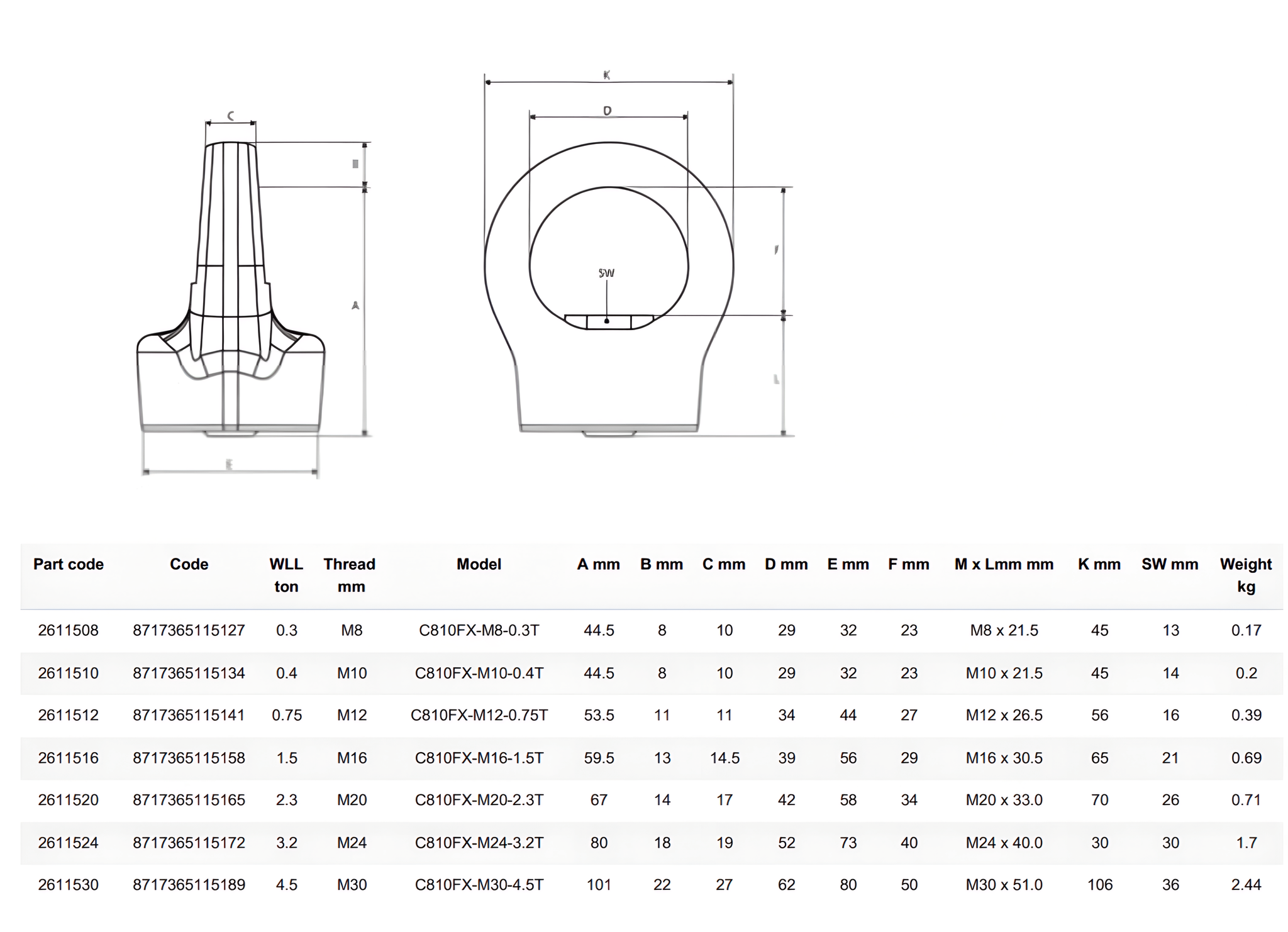

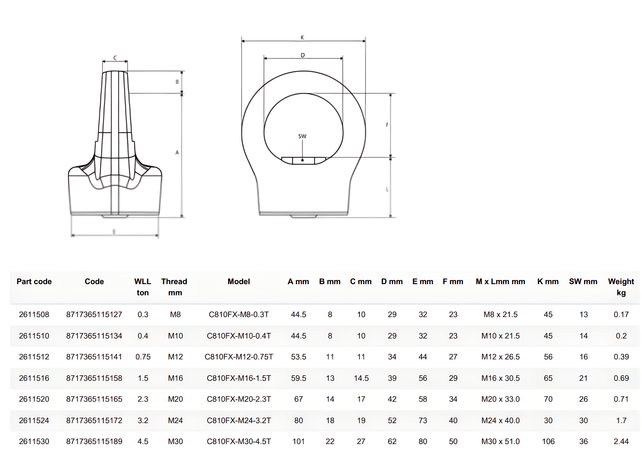

Technical specifications

Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	KL (mm)	M x L (mm)	SW (mm)	Weight (kg)	Salesbridges SKU
C810FX-M8-0.3T	300	44.5	8	10	29	32	23	45	M8 x 21.5	13	0.17	SB2611508
C810FX-M10-0.4T	400	44.5	8	10	29	32	23	45	M10 x 21.5	14	0.2	SB2611510
C810FX-M12-0.75T	750	53.5	11	11	34	44	27	56	M12 x 26.5	16	0.39	SB2611512
C810FX-M16-1.5T	1500	59.5	13	14.5	39	56	29	65	M16 x 30.5	21	0.69	SB2611516
C810FX-M20-2.3T	2300	67	14	17	42	58	34	70	M20 x 33.0	26	0.71	SB2611520
C810FX-M24-3.2T	3200	80	18	19	52	73	40	30	M24 x 40.0	30	1.7	SB2611524
C810FX-M30-4.5T	4500	101	22	27	62	80	50	106	M30 x 51.0	36	2.44	SB2611530
