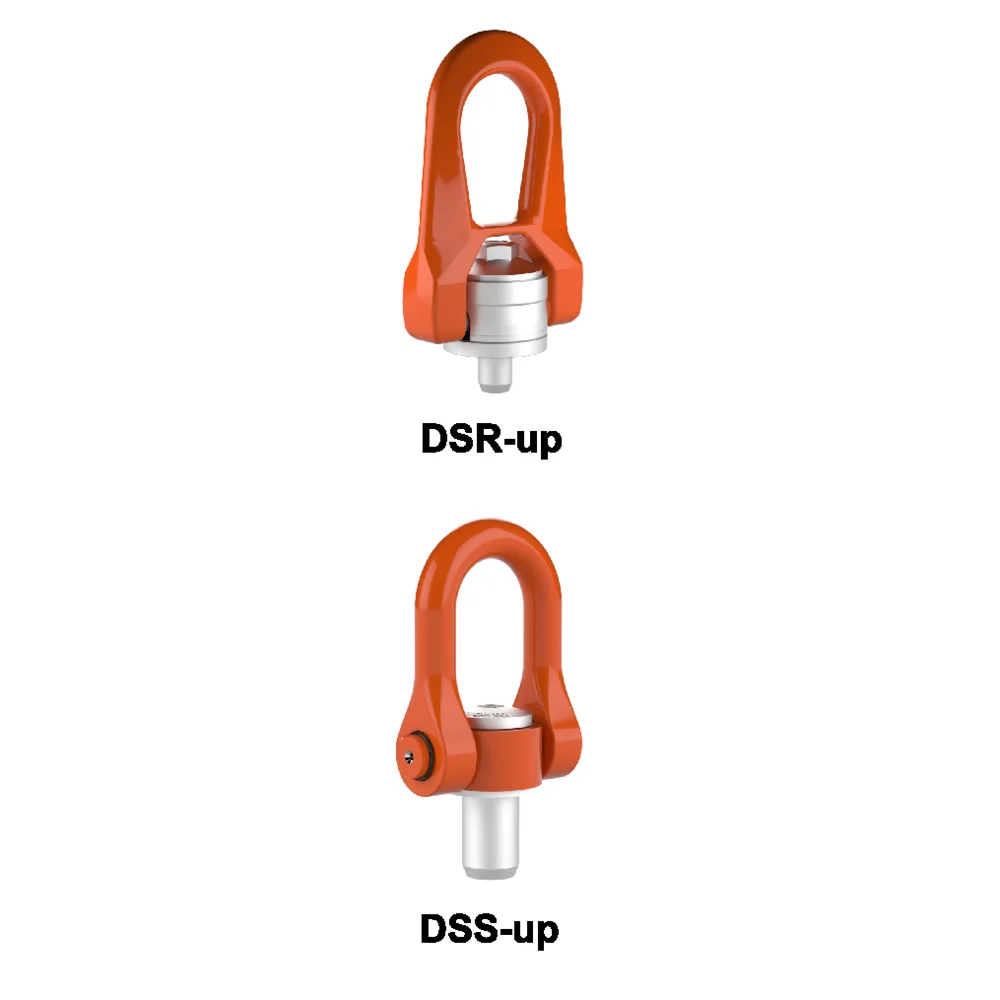

DSR/DSS UP Screw Suspension Eye Grade 8 – 360° Rotatable
€90,00
Incl. tax
Rema
DSR/DSS UP Screw Suspension Eye Grade 8 – 360° Rotatable
EUR 90,00
Excl. tax
EUR 108,90
Incl. tax
Excl. Shipping costs
Rotatable through 360° and foldable 90° | Rotatable under load
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description
DSR/DSS UP Screw Suspension Eye Grade 8 – 360° Rotatable
DSR/DSS UP Screw Suspension Eye Grade 8 – 360° Rotatable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.
Key features
- Rotatable through 360° and foldable 90°
- Rotatable under load
- According to EN1677 and ASME-B30.26

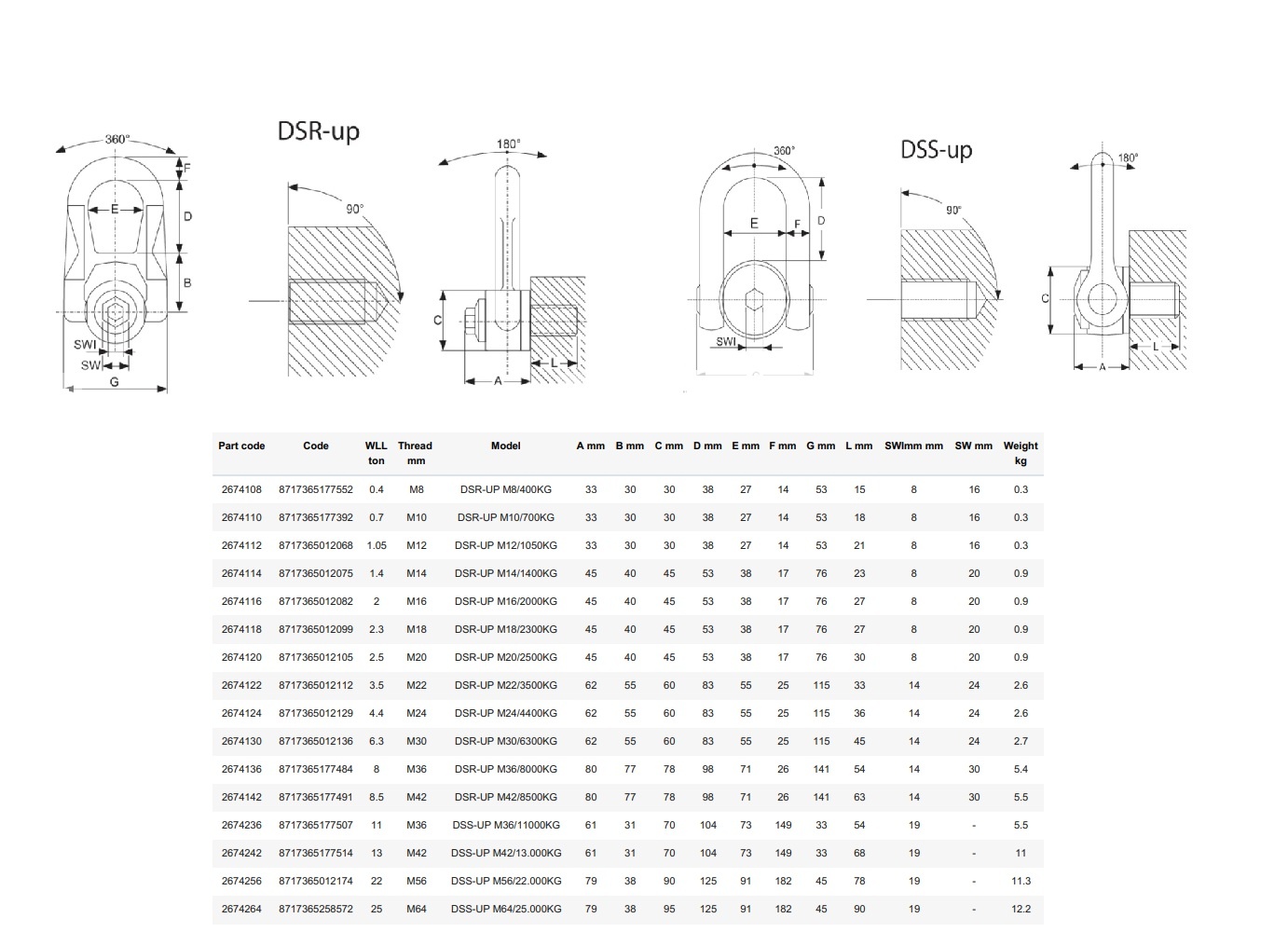

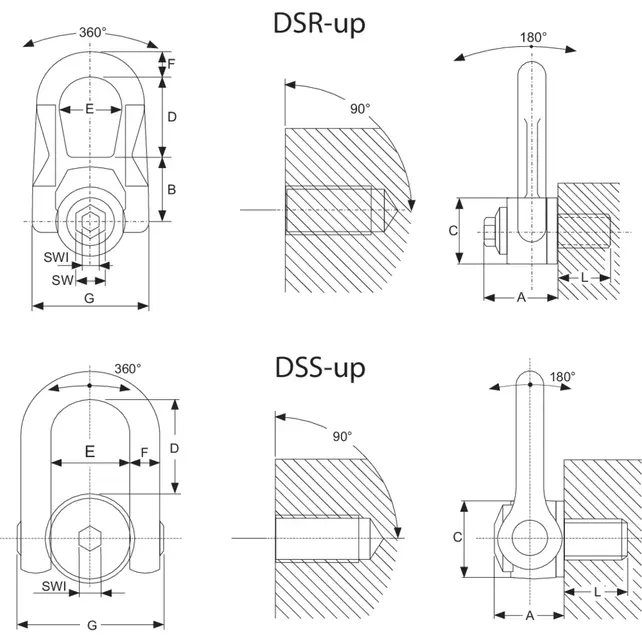

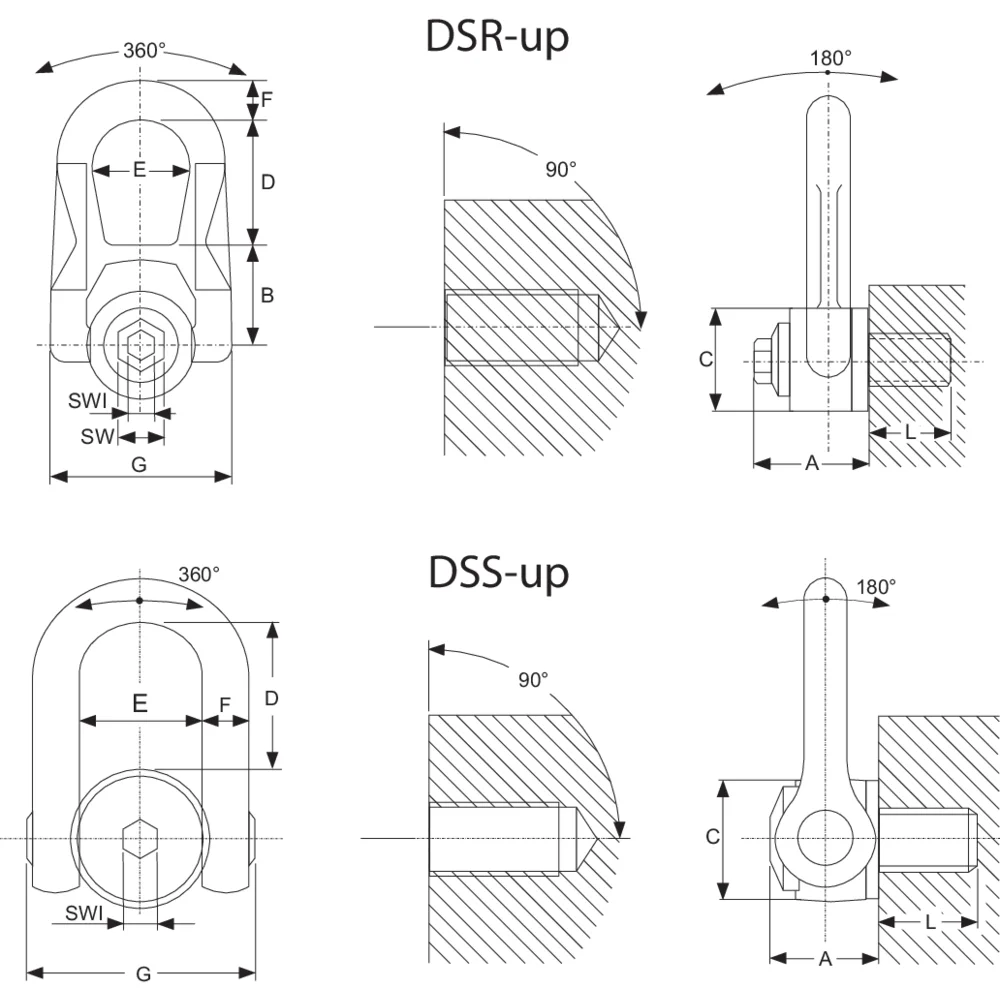

Technical specifications
| Type | WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | SWI (mm) | SW (mm) | Weight (kg) | Salesbridges SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSR-UP M8/400KG | 400 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 15 | 8 | 16 | 0.3 | SB2674108 |
| DSR-UP M10/700KG | 700 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 18 | 8 | 16 | 0.3 | SB2674110 |
| DSR-UP M12/1050KG | 1050 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 21 | 8 | 16 | 0.3 | SB2674112 |
| DSR-UP M14/1400KG | 1400 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 23 | 8 | 20 | 0.9 | SB2674114 |
| DSR-UP M16/2000KG | 2000 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 27 | 8 | 20 | 0.9 | SB2674116 |
| DSR-UP M18/2300KG | 2300 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 27 | 8 | 20 | 0.9 | SB2674118 |
| DSR-UP M-20/2500KG | 2500 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 30 | 8 | 20 | 0.9 | SB2674120 |
| DSR-UP M-22/3500KG | 3500 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 33 | 14 | 24 | 2.6 | SB2674122 |
| DSR-UP M24/4400KG | 4400 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 36 | 14 | 24 | 2.6 | SB2674124 |
| DSR-UP M30/6300KG | 6300 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 45 | 14 | 24 | 2.7 | SB2674130 |
| DSR-UP M36/8000KG | 8000 | 80 | 77 | 78 | 98 | 71 | 26 | 141 | 54 | 14 | 30 | 5.4 | SB2674136 |
| DSR-UP M42/8500KG | 8500 | 80 | 77 | 78 | 98 | 71 | 26 | 141 | 63 | 14 | 30 | 5.5 | SB2674142 |
| DSS-UP M36/11000KG | 11000 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 54 | 19 | - | 5.5 | SB2674236 |
| DSS-UP M42/13.000KG | 13000 | 61 | 31 | 70 | 104 | 73 | 149 | 33 | 68 | 19 | - | 11.0 | SB2674242 |
| DSS-UP M56/22.000KG | 22000 | 79 | 38 | 90 | 125 | 91 | 182 | 45 | 78 | 19 | - | 11.3 | SB2674256 |
| DSS-UP M64/25.000KG | 25000 | 79 | 38 | 95 | 125 | 91 | 182 | 45 | 90 | 19 | - | 12.2 | SB2674264 |
Delivery
Delivery is available in the Netherlands and across Europe. Select the correct variant based on WLL, thread size, dimensions and application.
Request a quotation
For pricing, availability or a tailored quotation: [email protected] | +31 6 52883848.
Product information
| Brand | Rema |
| Article code | SB2674108 |
| SKU | SB2674108 |
