C835X Lifting Eye with Fixing Screws Grade 10 – 120° Foldable
€100,00
Incl. tax
Rema
C835X Lifting Eye with Fixing Screws Grade 10 – 120° Foldable
EUR 100,00
Excl. tax
EUR 121,00
Incl. tax
Excl. Shipping costs
Foldable through 120° | Can be loaded in a tilting device
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description

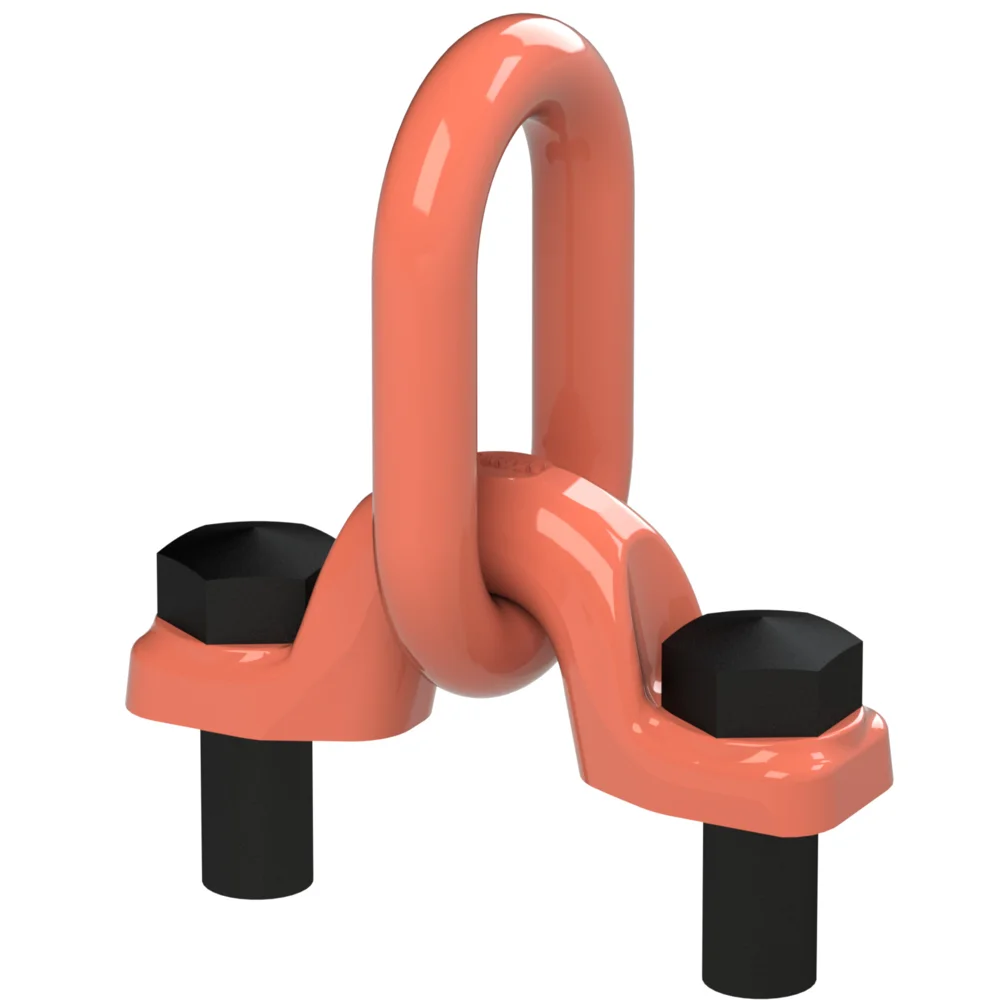

C835X Lifting Eye with Fixing Screws Grade 10 – 120° Foldable
C835X Lifting Eye with Fixing Screws Grade 10 – 120° Foldable – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.
Key features
- Foldable through 120°
- Can be loaded in a tilting device
- For bolt mounting on machine parts or truck construction
- Suitable for hooking and lashing equipment
- Higher capacity available on request
- According to GS-OA 15-04 / EN1677
Technical specifications

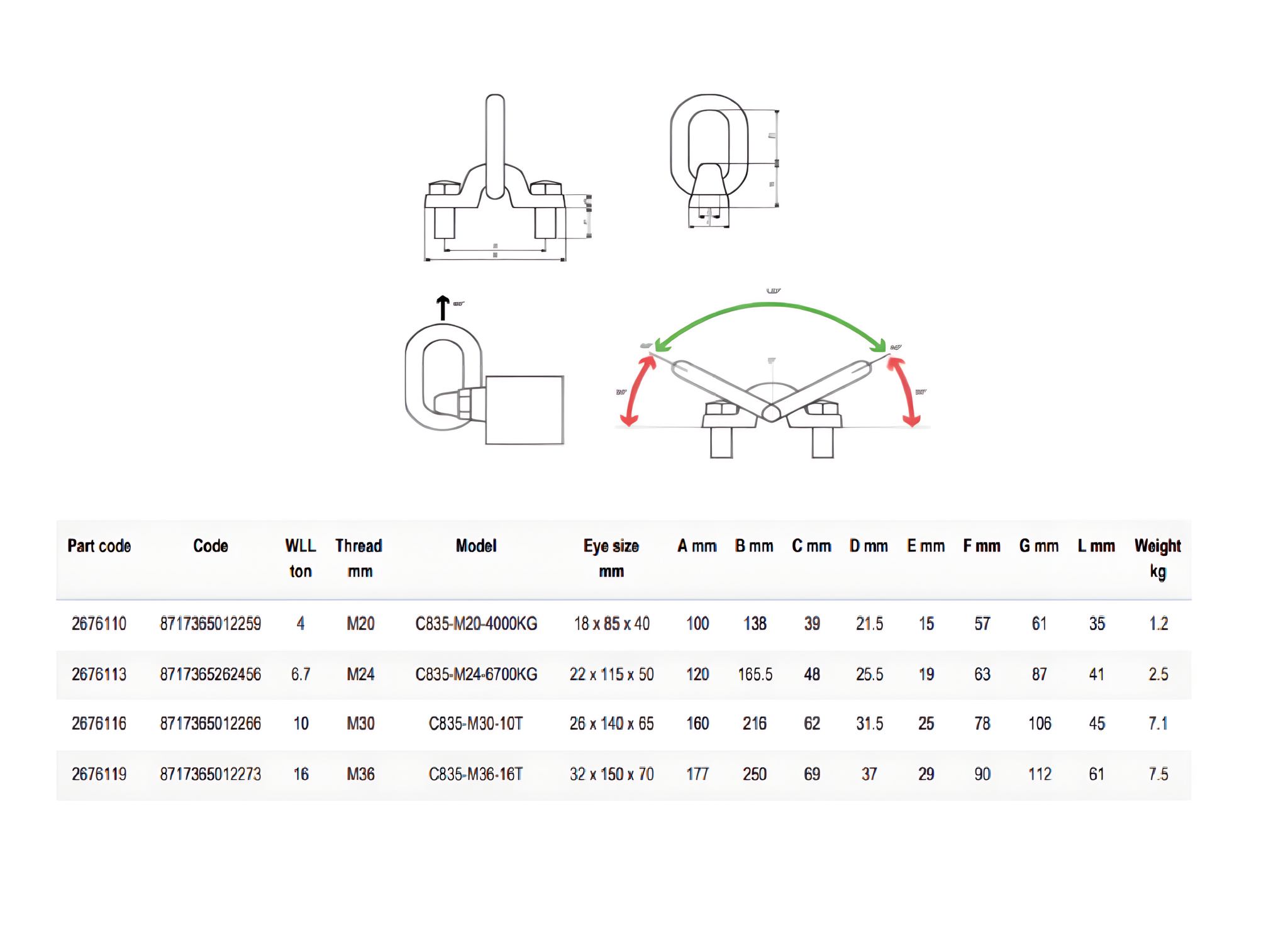

| Type | WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | Eye dimension (mm) | Weight (kg) | Salesbridges SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C835-M20-4000KG | 4000 | 100 | 138 | 39 | 21.5 | 15 | 57 | 61 | 35 | 18 x 85 x 40 | 1.2 | SB2676110 |
| C835-M24-6700KG | 6700 | 120 | 165.5 | 48 | 25.5 | 19 | 63 | 87 | 41 | 22 x 115 x 50 | 2.5 | SB2676113 |
| C835-M30-10T | 10000 | 160 | 216 | 62 | 31.5 | 25 | 78 | 106 | 45 | 26 x 140 x 65 | 7.1 | SB2676116 |
| C835-M36-16T | 16000 | 177 | 250 | 69 | 37 | 29 | 90 | 112 | 61 | 32 x 150 x 70 | 7.5 | SB2676119 |
Delivery
Delivery is available in the Netherlands and across Europe. Select the correct variant based on WLL, thread size, dimensions and application.
Request a quotation
For pricing, availability or a tailored quotation: [email protected] | +31 6 52883848.
Product information
| Brand | Rema |
| Article code | SB2676110 |
| SKU | SB2676110 |
