SalesBridges Stationary Lifting Table 2000kg - Electric Platform 1300 mm x 850  mm
Stationary Lifting Table 2000kg - Electric Platform 1300 mm x 850 mm
€2.280,00 Incl. tax
SalesBridges

Stationary Lifting Table 2000kg - Electric Platform 1300 mm x 850 mm

EUR 2.280,00 Excl. tax
EUR 2.758,80 Incl. tax

Electric platform 1300 mm x 850 mm, lifting up to 2000 kg, height adjustable from 230 mm to 1000 mm. Features all-round safety protection and an external control panel for easy operation.

In stock
3-4 days
Quantity
- +
Product description

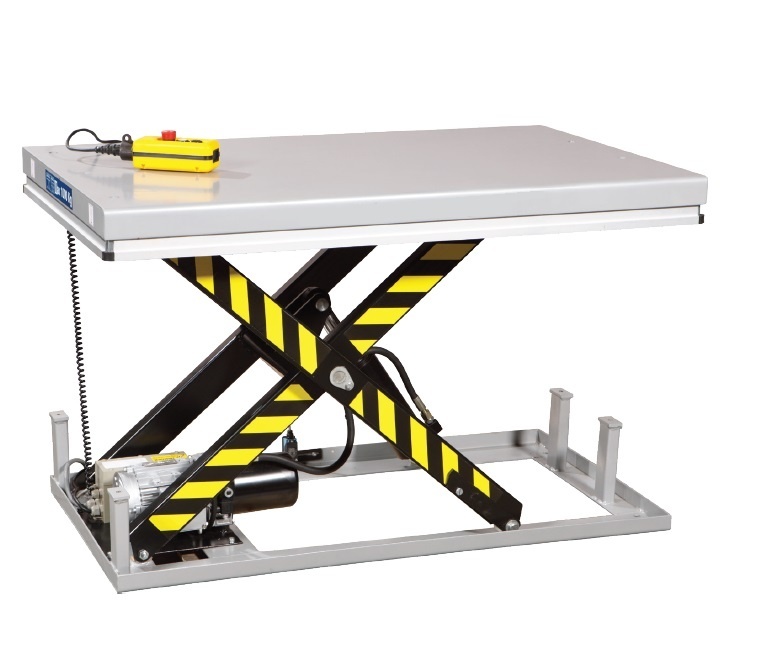

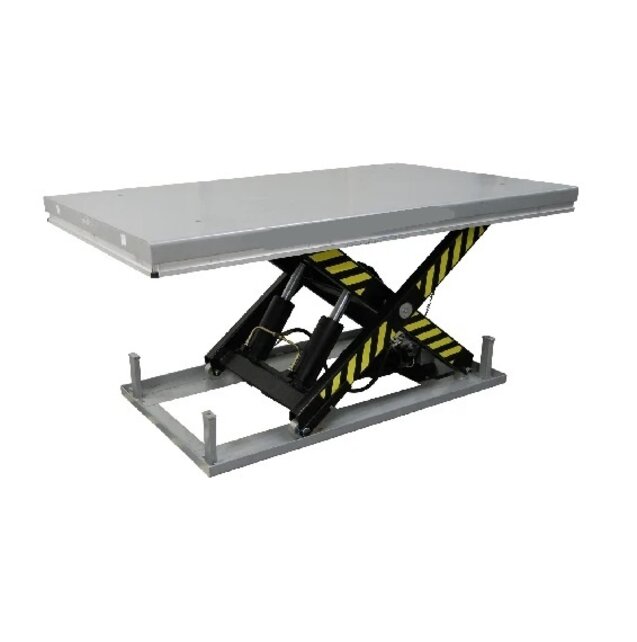

Stationary scissor lift table – SBHTHW2001

This stationary lift table positions goods at a fixed workstation. Its lifting movement helps match material height to assembly, processing and transfer tasks.

The stated load capacity is 2,000 kg. The technical table identifies the configuration, dimensions and operating details for this model.

Features and benefits

  • Maximum load capacity: 2000 kg.
  • Platform (L × W): 1300 × 850 mm.
  • Lift height min.–max.: 230 – 1000 mm.

Technical specifications

SKUSBHTHW2001
ConfigurationStationary scissor lift table
Maximum load capacity2000 kg
Platform (L × W)1300 × 850 mm
Lift height min.–max.230 – 1000 mm
Lift stroke770 mm
Base frame / plate (L × W)1255 × 785 mm
Time to maximum lift heightApprox. 20 – 25 seconds
Lifting motor1.5 kW
Motor voltage380 V / 50 Hz
Power supply3-phase, 380 V / 16 A
Hydraulic unitLow-noise, with integrated overload valve
Net weight235 kg
Standard stated in product specificationEN 1570-1
ModelSBHTHW2001

Applications

  • Material supply in production and assembly
  • Positioning at packing and processing stations
  • Transferring goods between suitable working heights

Configuration and use

Match installation, floor fixing, platform size and lift height to the location. Check the power supply and load distribution. Confirm custom configurations against the quotation and drawing. Use as a personnel lift is not included in this description.

Options and accessories

Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.

Delivery in the Netherlands and across Europe

Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.

Request a quotation

Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.

Product information
Brand SalesBridges
Article code SBHTHW2001
SKU SBHTHW2001
EAN 9503229431583
