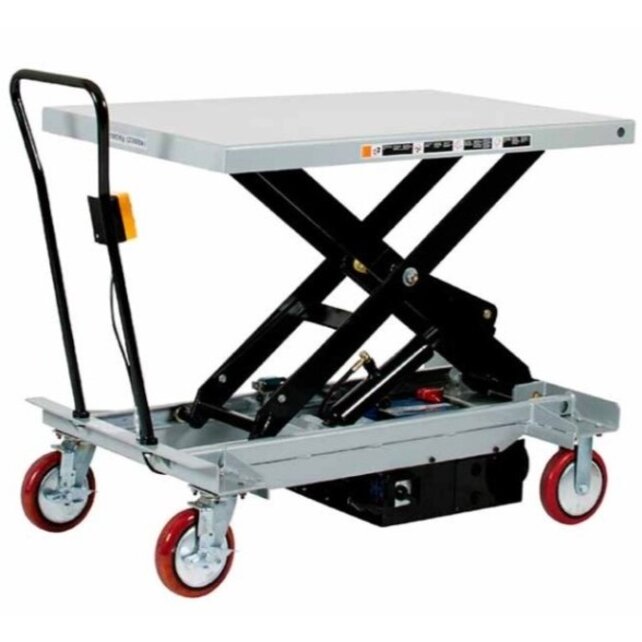

Electric mobile lift table, 1200x800mm, 1000kg capacity
Lifting table 1000Kg Scissor lift truck on wheels from Salesbridges is a mobile lifting table and the ideal support for loading, filling or unloading by means of an electric lifting motor.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Mobile scissor lift table – SBHTES100L
This mobile lift table presents goods at a useful height for packing, filling and assembly. The lifting platform and wheeled base help adapt the workstation to the material flow.
The stated load capacity is 1000 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 1000 kg.
- Platform (L × W): 1200 × 800 mm.
- Maximum lift height: 1220 mm.
- Operation / lifting system: Electric push-button control.
- Battery: Maintenance-free.
Technical specifications
| SKU | SBHTES100L |
|---|---|
| Model | SBHTES100L |
| Configuration | Mobile scissor lift table |
| Maximum load capacity | 1000 kg |
| Platform (L × W) | 1200 × 800 mm |
| Platform format | EUR pallet dimensions |
| Minimum height | 450 mm |
| Maximum lift height | 1220 mm |
| Lift stroke | 770 mm |
| Operation / lifting system | Electric push-button control |
| Time to maximum lift height | 20 – 25 seconds |
| Lifting motor | 1.2 kW |
| Power supply | DC power supply |
| Battery | Maintenance-free |
| Wheel / roller dimensions | Ø200 mm |
| Overall dimensions (L × W × H) | 1390 × 800 mm |
| Handle height | 1185 mm |
| Net weight | 225 kg |
| Standard stated in product specification | CE stated in product data |
| Factory warranty stated in product data | 1-year factory warranty |
Applications
- Presenting cartons and bins at packing stations
- Preparing components for assembly
- Moving goods between workstations
Configuration and use
Check platform size, lifting range and loading. Distribute the load and use the table on a suitable surface according to its instructions. A mobile goods lift table is not a personnel lift.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBHTES100L |
| SKU | SBHTES100L |
| EAN | 9508427281688 |
