SalesBridges Heavy-Duty Lift Table | 4000kg Capacity | 2500x850mm | High Lift Scissor Table
Heavy-Duty Lift Table | 4000kg Capacity | 2500x850mm | High Lift Scissor Table
€4.589,95 Incl. tax
SalesBridges

Heavy-Duty Lift Table | 4000kg Capacity | 2500x850mm | High Lift Scissor Table

EUR 4.589,95 Excl. tax
EUR 5.553,84 Incl. tax

Heavy-duty lift table with 4000kg capacity, 2500x850mm platform, and high lifting height up to 1000 mm. Designed for long goods and high lifts, with enhanced safety features and low-maintenance operation.

In stock
1-2 weeks
Quantity
- +
Product description

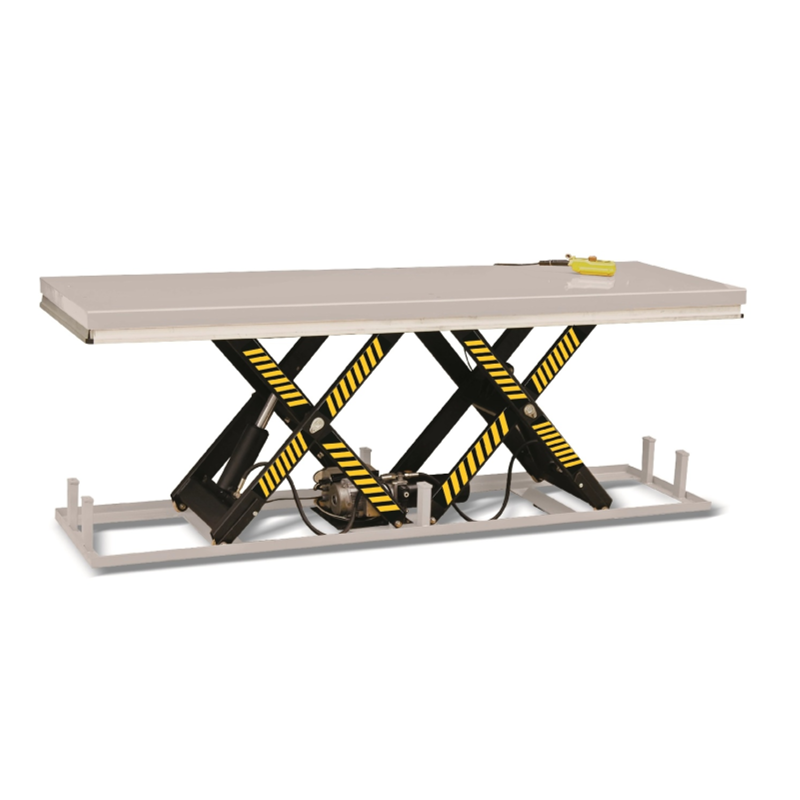

Stationary scissor lift table – SBLV4000

This stationary lift table positions goods at a fixed workstation. Its lifting movement helps match material height to assembly, processing and transfer tasks.

The stated load capacity is 4000 kg. The technical table identifies the configuration, dimensions and operating details for this model.

Features and benefits

  • Maximum load capacity: 4000 kg.
  • Platform (L × W): 2500 × 850 mm.
  • Lift height min.–max.: 230 – 1000 mm.

Technical specifications

SKUSBLV4000
ConfigurationStationary scissor lift table
Maximum load capacity4000 kg
Platform (L × W)2500 × 850 mm
Base frame / plate (L × W)2470 × 785 mm
Lift height min.–max.230 – 1000 mm
Lift stroke770 mm
Net weight360 kg
Time to maximum lift height25–30 seconds
Lifting motor380V / 50Hz, 2.2kW
Power supply3-phase, 380V/16A
Pivot bushingsMaintenance-free
Safety featuresSafety valve, hose-burst protection, clearance, limit switch
Standard stated in product specificationEN1570-1
Assembly / installationBolt to the floor
Factory warranty stated in product data1-year factory warranty
ModelSBLV4000

Applications

  • Material supply in production and assembly
  • Positioning at packing and processing stations
  • Transferring goods between suitable working heights

Configuration and use

Match installation, floor fixing, platform size and lift height to the location. Check the power supply and load distribution. Confirm custom configurations against the quotation and drawing. Use as a personnel lift is not included in this description.

Options and accessories

Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.

Delivery in the Netherlands and across Europe

Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.

Request a quotation

Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.

Product information
Brand SalesBridges
Article code SBLV4000
SKU SBLV4000
EAN 9504568599484
