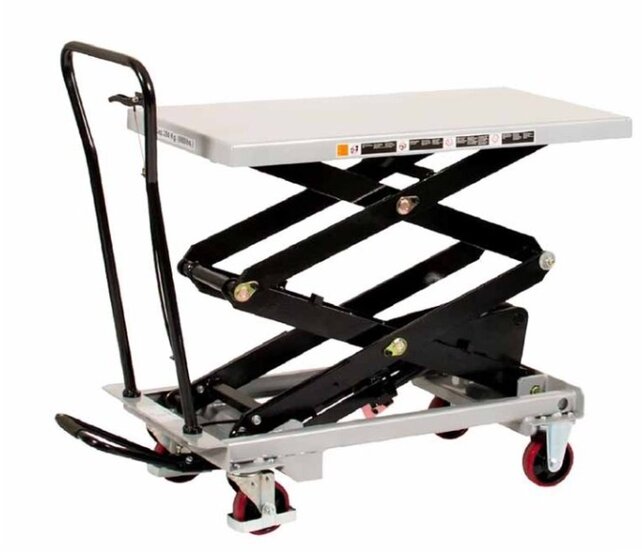

Lift table 300Kg double Scissor lift truck on wheels Height up to 1585mm Platform 1010x520mm
Lifting table 300Kg or 800Kg double Scissor lifting trolley on wheels. Platform 1010x520mm A mobile lifting table and the ideal support when loading, filling or unloading. Materials and goods are brought to an appropriate working height.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Double Scissor Lift Table 300 kg – SBHTBS30D
The Salesbridges SBHTBS30D is a mobile double scissor lift table with a 300 kg load capacity and a maximum lifting height of 1585 mm. Its double scissor design makes this hydraulic lift table especially suitable for tasks requiring greater lifting heights, including order picking, assembly, warehousing, manufacturing and internal material handling.
The large 1010 x 520 mm steel platform provides a stable surface for boxes, containers, components and other materials. The double scissor mechanism offers a stable lifting movement with limited platform movement, including when raised to maximum height.
Key benefits
- Load capacity up to 300 kg
- Double scissor design for an extra-high lifting range
- Maximum lifting height of 1585 mm
- Large 1010 x 520 mm platform
- Hydraulic lifting with centrally positioned foot pedal
- Smooth and controlled stepless lowering using the handle lever
- Heavy-duty steel frame with high-quality powder coating
- Polyurethane wheels for quiet movement and reliable traction on smooth floors
- Two parking brakes on the steering castors for stable positioning
- Ideal for order picking, warehousing, assembly, production and logistics
- All spare parts are available
- Includes a 1-year factory warranty
Efficient and ergonomic lifting at height
The SBHTBS30D allows operators to raise goods to the required working height with ease. This reduces repetitive bending, lifting and reaching, helping to lower physical strain for employees. Its high maximum lift height makes this double scissor lift table highly suitable for use at workbenches, machinery, shelving systems and production lines.
Lifting is performed comfortably using the robust foot pedal. The platform can be lowered precisely and smoothly with the lever on the push handle. Two parking brakes keep the lift table trolley securely positioned during loading, unloading and assembly operations.
Technical specifications
| Specification | SBHTBS30D |
|---|---|
| Model | SBHTBS30D |
| Type | Mobile double scissor lift table |
| Load capacity | 300 kg |
| Scissor design | Double scissor |
| Lowered table height | 435 mm |
| Lift stroke | 1150 mm |
| Maximum lifting height | 1585 mm |
| Foot pedal cycles to maximum height | 53 |
| Platform dimensions (L x W) | 1010 x 520 mm |
| Overall handle height | 1130 mm |
| Overall length | 1260 mm |
| Maintenance | Manual |
| Wheel diameter | 150 mm |
| Wheel material | Polyurethane |
| Net weight | 150 kg |
| Warranty | 1-year factory warranty |
| Spare parts | Available |
The SBHTBS30D double scissor lift trolley
The scissor lift trolleys SBHTBS30D from Salesbridges achieve great lifting heights thanks to the processed double scissors. Depending on the model, a maximum lifting height of 1,585 mm (SBHTBS30D) is achieved. The stroke takes place conveniently via a foot pedal. Thanks to this equipment, they are ideal for order picking, general warehousing or everyday operations. When it comes to carrying capacity, there are three different options to choose from. Here you can choose between 300 and 800Kg . Depending on the load capacity, the size of the table platform also changes. The exact table dimensions of the various models can be found in the technical data.
| Technical specifications | Lift table SBHTSPS15 | Lift table SBHTSPS35 |
|---|---|---|
| Load capacity (kg) | 300 | 800 |
| features | dubbele schaar | dubbele schaar |
| Height of the table, lowered | 435 | 470 |
| lifting height (mm) | 1150 | 940 |
| max. lifting height (mm) | 1585 | 1410 |
| Foot Pedal Cycles to Max Height | 53 | 85 |
| Table size (LxWxH) (mm) | 1010x520 | 1010x520 |
| overall height (mm) | 1130 | 1185 |
| total length (mm) | 1260 | 1260 |
| service | hand | hand |
| wheel diameter (d mm) | 150 | 150 |
| tires | polyurethaan | polyurethaan |
| Own weight (kg) | 150 | 165 |
All spare parts are available
1 year factory warranty
Furnishing
The scissor lift table trolleys have a robust steel frame construction and stable scissor struts which give the lift tables stability. The high-quality powder coating prevents the device from being accidentally scratched. A quality hydraulic pump ensures a long service life. The stable foot pedal is used for effortless lifting of the table. The table is lowered using a hand lever. The two parking brakes on both castors give the scissor lift trolley a secure footing. High-quality polyurethane castors ensure smooth running on level surfaces
double scissors
Double scissors consist of two scissors that are attached one above the other. With scissor lift trolleys that are equipped with double scissors, the lift is relatively free of fluctuations up to the maximum height.
Lift via foot pedal
The stroke takes place via a centrally mounted foot pedal. Heavy loads are conveniently brought to a desired working height, which makes work easier.
Make a choice: * to select the right model with the corresponding price
Delivery and RFQ request
Salesbridges delivers the SBHTBS30D double scissor lift table in the Netherlands, Belgium and throughout Europe. Contact us for availability, delivery times, quantity discounts or an RFQ quotation.
Email: [email protected]
Phone: +31652883848
| Brand | Salesbridges |
| Article code | SBHTBS30D |
| SKU | SBHTBS30D |
| EAN | 9508648151760 |
