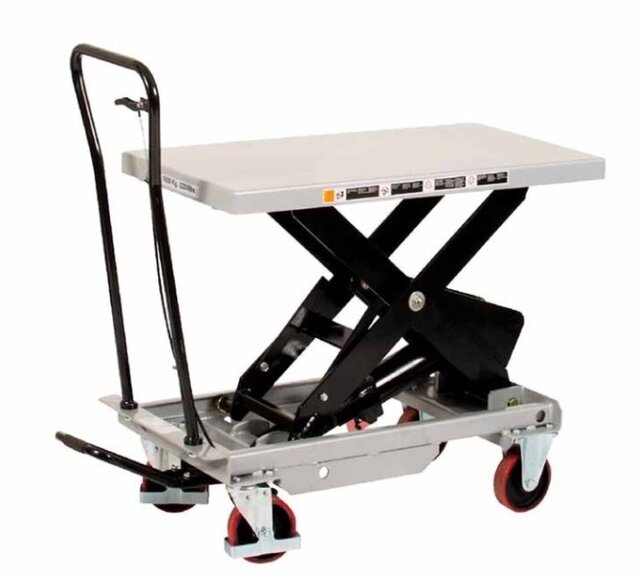

Lifting table mobile 1000Kg Scissor lift on wheels platform size 1010x520
Lifting table 150Kg to 1000kg Scissor lift trolley on wheels 760mm to 950mm from Salesbridges is a mobile lifting table and the ideal support when loading, filling or unloading. Materials and goods are brought to a suitable working height.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Mobile scissor lift table – SBHTBS100
This mobile lift table presents goods at a useful height for packing, filling and assembly. The lifting platform and wheeled base help adapt the workstation to the material flow.
The stated load capacity is 1000 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 1000 kg.
- Platform (L × W): 1010 × 520 mm.
- Operation / lifting system: Hydraulic foot pedal.
- Wheel / roller material: PU (polyurethane).
Technical specifications
| SKU | SBHTBS100 |
|---|---|
| Model | SBHTBS100 |
| Maximum load capacity | 1000 kg |
| Lift stroke | 505 mm |
| Platform (L × W) | 1010 × 520 mm |
| Overall length | 1260 mm |
| Overall width | 520 mm |
| Handle height | 1130 mm |
| Minimum height | 445 mm |
| Operation / lifting system | Hydraulic foot pedal |
| Lowering control | Stepless hand lever control |
| Wheel / roller material | PU (polyurethane) |
| Net weight | 197 kg |
Applications
- Presenting cartons and bins at packing stations
- Preparing components for assembly
- Moving goods between workstations
Configuration and use
Check platform size, lifting range and loading. Distribute the load and use the table on a suitable surface according to its instructions. A mobile goods lift table is not a personnel lift.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBHTBS100 |
| SKU | SBHTBS100 |
| EAN | 9501427159568 |
