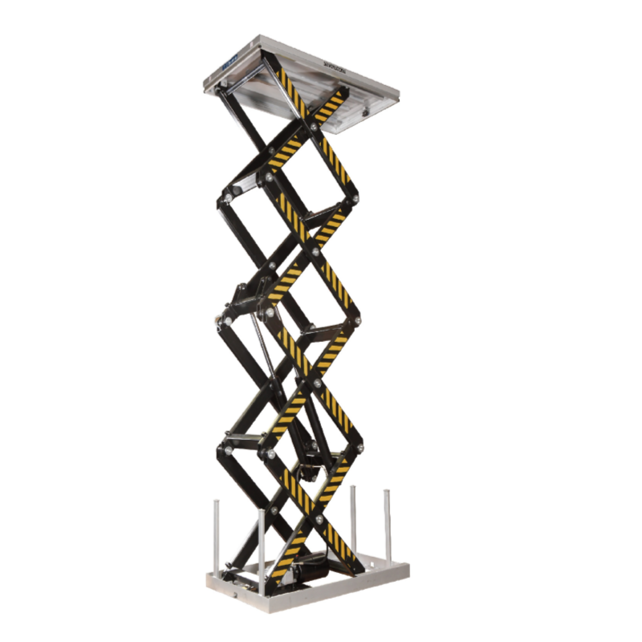

Stationary Electric Lift Table, Supports Up to 800 Kg, 4-Scissor Design, 4.2 m Lift Height
The Salesbridges Four-Scissor Lift Table SBMJQ801 features a lifting height of up to 4210 mm and a spacious table area of 1700x1000 mm. Complies with EN1570-1 standards
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Stationary scissor lift table – SBMJQ801
This stationary lift table positions goods at a fixed workstation. Its lifting movement helps match material height to assembly, processing and transfer tasks.
The stated load capacity is 800 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 800 kg.
- Platform (L × W): 1700 × 1000 mm.
- Lift height min.–max.: 706 – 4210 mm.
Technical specifications
| SKU | SBMJQ801 |
|---|---|
| Model | SBMJQ801 |
| Configuration | Stationary scissor lift table |
| Maximum load capacity | 800 kg |
| Scissor configuration | Four-scissor design |
| Lift height min.–max. | 706 – 4210 mm |
| Lift stroke | 3504 mm |
| Platform (L × W) | 1700 × 1000 mm |
| Base frame / plate (L × W) | 1606 × 1010 mm |
| Time to maximum lift height | Approx. 60 – 65 seconds |
| Lifting motor | 2.2 kW |
| Power supply | 3-phase, 380 V / 16 A |
| Net weight | 858 kg |
| Standard stated in product specification | EN 1570-1 |
| Conformity stated in product data | CE stated in product data |
| Factory warranty stated in product data | 1-year factory warranty |
Applications
- Material supply in production and assembly
- Positioning at packing and processing stations
- Transferring goods between suitable working heights
Configuration and use
Match installation, floor fixing, platform size and lift height to the location. Check the power supply and load distribution. Confirm custom configurations against the quotation and drawing. Use as a personnel lift is not included in this description.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBMJQ801 |
| SKU | SBMJQ801 |
| EAN | 9509643197128 |
