Gravity Box Roller Conveyor Set 3000x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm

Create your own review

EUR 960,00 Excl. tax

EUR 1.161,60 Incl. tax

Excl. Shipping costs

Complete gravity conveyor set: 3000x500 mm with plastic rollers (105 mm pitch) plus adjustable support leg 651–959 mm. Up to 160 kg (legs at 1–1.5 m). Delivery in NL/BE and across Europe.

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

Overview

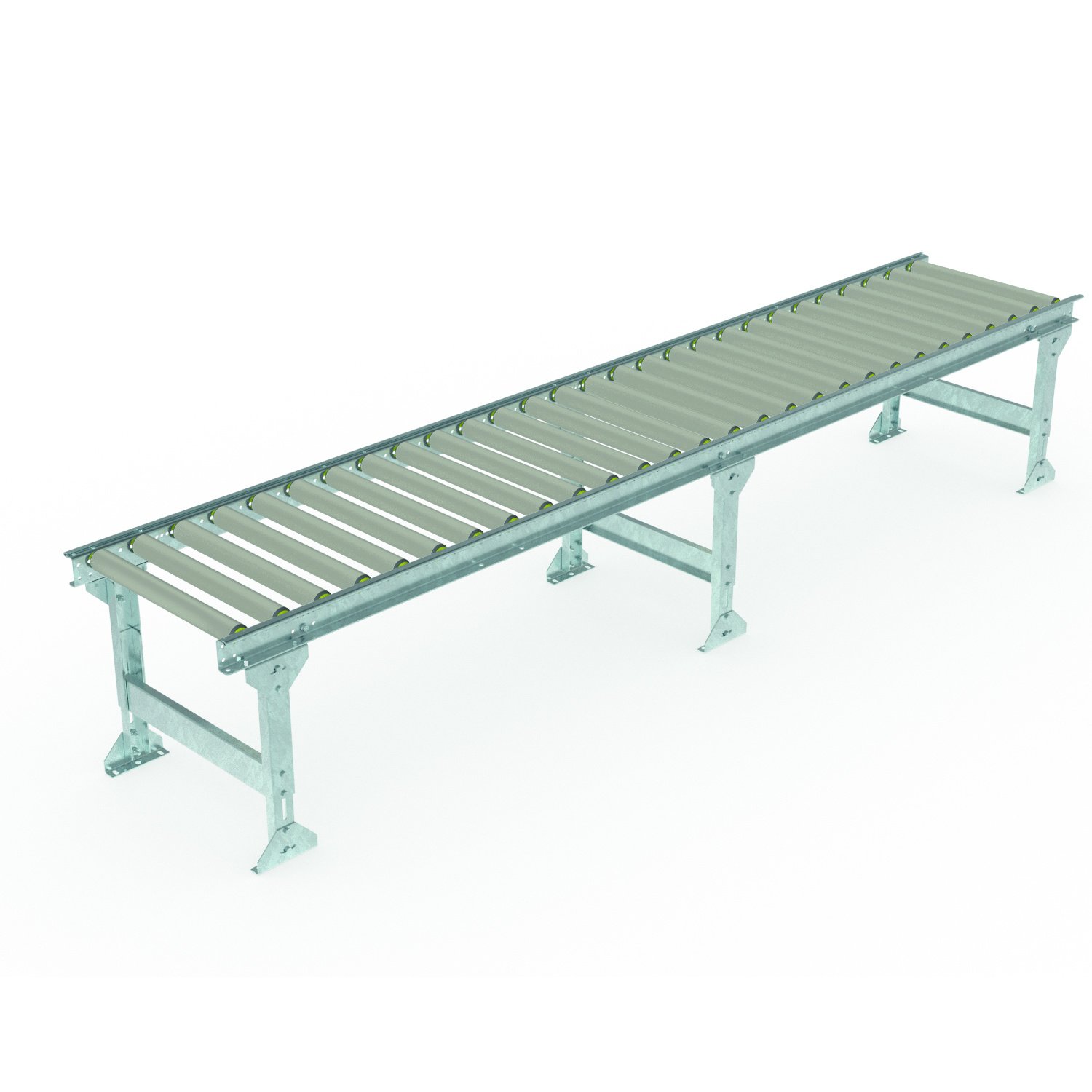

This complete gravity box roller conveyor set combines a non-powered roller conveyor section 3000x500 mm with plastic rollers and an adjustable support leg (651–959 mm). Ideal for moving cartons, trays, parcels and lightweight unit loads using gravity flow.

Key benefits

All-in-one set: conveyor section + adjustable leg as one webshop product
Height adjustable 651–959 mm: quickly set incline and working height
Plastic rollers Ø50 mm: suitable for lightweight handling and quieter conveying
105 mm roller pitch (c/c): stable support for cartons and totes
Spring-loaded axle Ø8x11 mm: reliable roller mounting and easier service
Caster-ready option: leg connection plate can be replaced by SLG999-AC (for caster with 105x85 mm top plate)

Typical applications

Picking and packing gravity lanes (gravity flow)
Buffer/transfer lanes for cartons and parcels
Warehouse and production intralogistics without powered conveying

What’s included

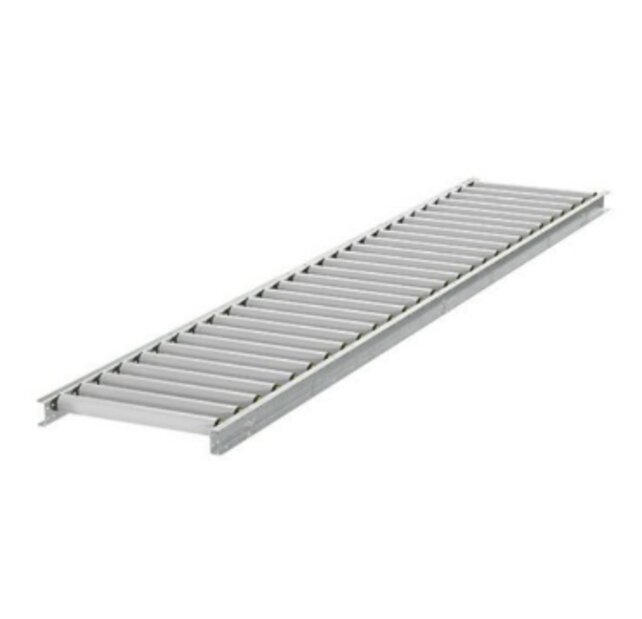

1× Gravity box conveyor 3000x500 mm, plastic rollers, 105 mm pitch (c/c) (Art. S03050050VF-29)

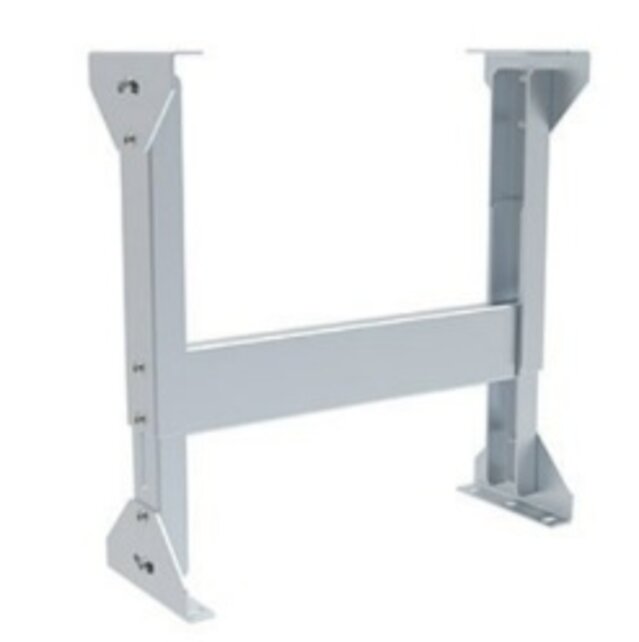

1× Adjustable support leg 651–959 mm (Art. S00005062)
Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)

Technical specifications

Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.

Specification	Conveyor (3000 mm, plastic rollers)	Support Leg (adjustable)	Notes
Article number	S03050050VF-29	S00005062	Supplied as one set
Length	3000 mm	—	Conveyor section
Roller width	500 mm	500 mm	Matching width
Total width	560 mm	560 mm	Overall width
Roller diameter	50 mm	—	Plastic roller
Total height (conveyor)	75 mm	—	Section height
Leg height range	—	651–959 mm	For incline/working height
Roller pitch (c/c)	105 mm	—	Center-to-center distance
Tread material	Plastic	—
Axle design	Spring-loaded axle Ø8x11 mm	—
Heat resistant	No	No
Load capacity (legs c/c 1.0 m)	160 kg	—	Depends on layout/conditions
Load capacity (legs c/c 1.5 m)	160 kg	—	Depends on layout/conditions
Load capacity (legs c/c 3.0 m)	100 kg	—	Depends on layout/conditions
Product weight	31.18 kg	6.53 kg	Total set approx. 37.71 kg
