Gravity Box Roller Conveyor Set 2400x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm

Create your own review

EUR 950,00 Excl. tax

EUR 1.149,50 Incl. tax

Excl. Shipping costs

Complete gravity conveyor set: 2400x500 mm section with plastic rollers (105 mm pitch) plus adjustable support leg 651–959 mm. For cartons and parcels. Load up to 160 kg (legs at 1.2 m). Delivery in NL/BE and across Europe.

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

Overview

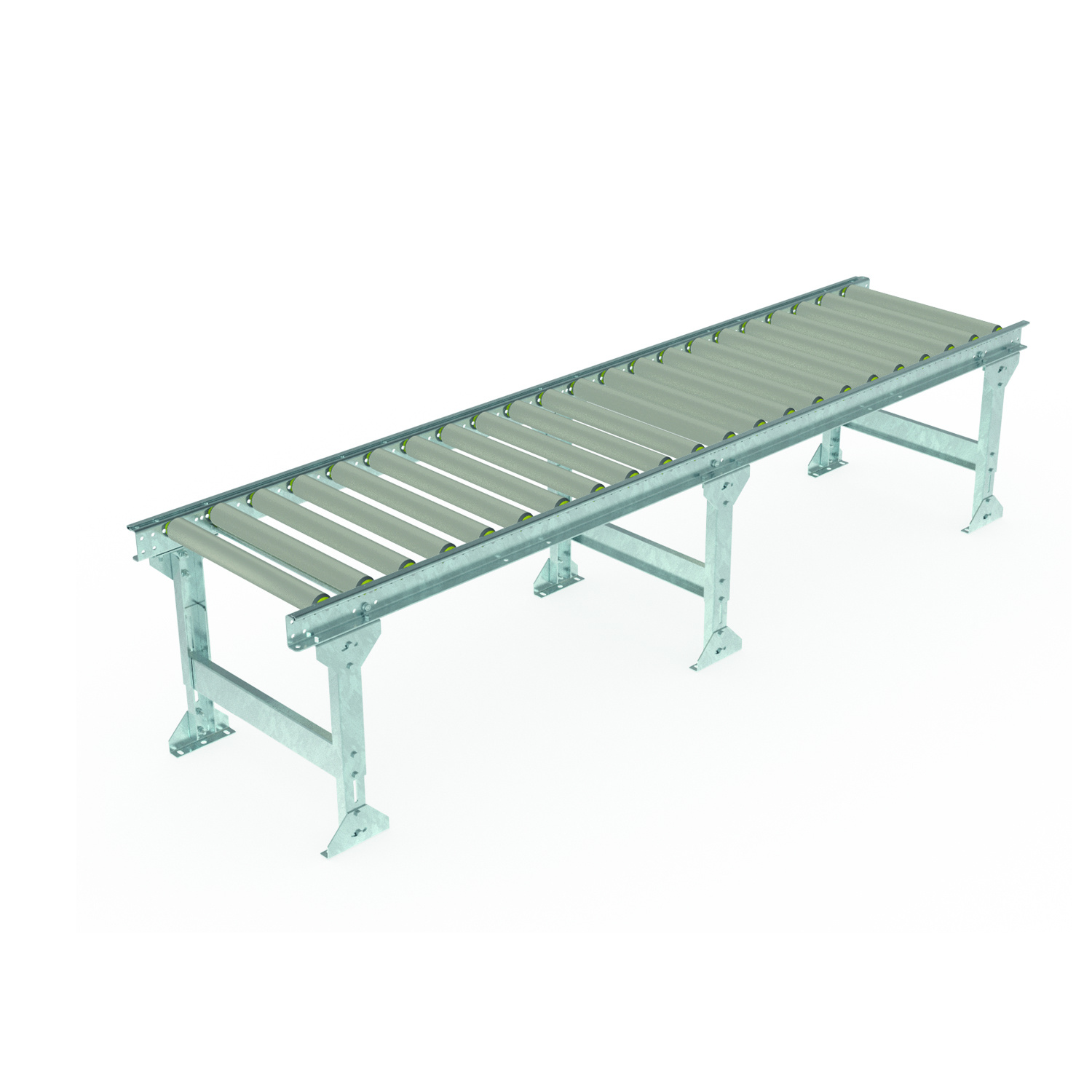

This complete gravity box roller conveyor set includes a non-powered roller conveyor section 2400x500 mm with plastic rollers plus an adjustable support leg. Set the right incline for smooth gravity flow of cartons, parcels, trays and lightweight unit loads.

Key benefits

All-in-one set: conveyor + support leg as one webshop product
Height adjustable (651–959 mm): easy incline/working height adjustment
Plastic rollers (Ø50 mm): suitable for lightweight handling and quieter operation
Spring-loaded axle (8x11 mm): stable roller mounting and easier service
Caster-ready option: lower connection plate can be replaced by SLG999-AC (for a caster with 105x85 mm top plate)

Typical applications

Gravity flow lanes for picking and packing
Buffer and sorting lanes for cartons/parcels
Internal logistics without powered conveying

What’s included

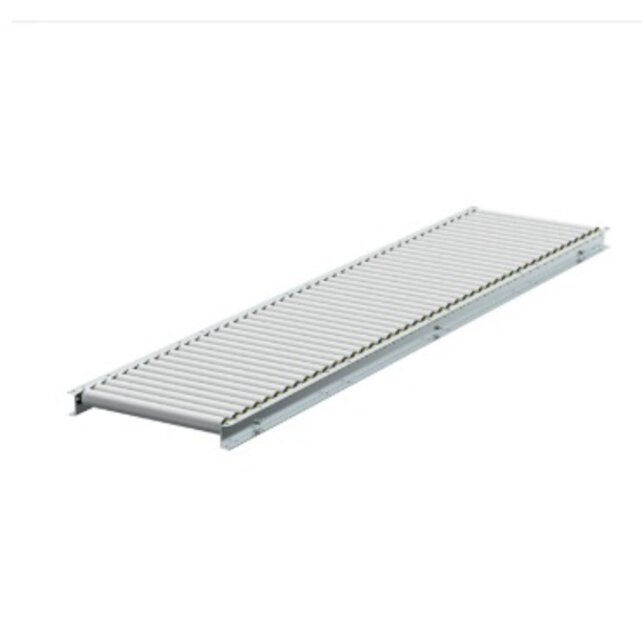

1× Gravity box conveyor 2400x500 mm, plastic rollers, 105 mm pitch (c/c) (Art. S02450050VF-23)

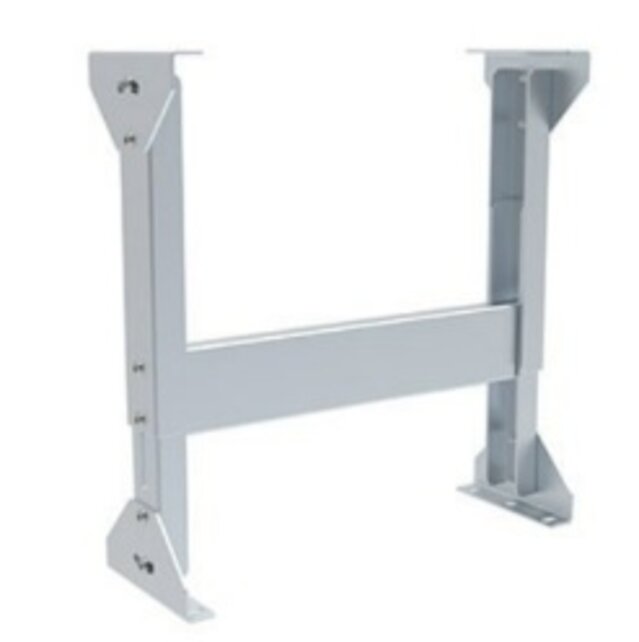

1× Adjustable support leg 651–959 mm (Art. S00005062)
Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)

Technical specifications

Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.

Specification	Conveyor (2400 mm, plastic rollers)	Support Leg (adjustable)	Notes
Article number	S02450050VF-23	S00005062	Supplied as one set
Length	2400 mm	—	Conveyor section
Roller width	500 mm	500 mm	Matching width
Total width	560 mm	560 mm	Overall width
Roller diameter	50 mm	—	Plastic roller
Total height (conveyor)	75 mm	—	Section height
Leg height range	—	651–959 mm	For incline/working height
Roller pitch (c/c)	105 mm	—	Center-to-center distance
Tread material	Plastic	—
Axle design	Spring-loaded axle 8x11 mm	—
Heat resistant	No	No
Load capacity (with legs c/c 1.2 m)	160 kg	—	Depends on layout/conditions
Load capacity (with legs c/c 2.4 m)	125 kg	—	Depends on layout/conditions
Product weight	25.94 kg	6.53 kg	Total set approx. 32.47 kg

Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.

Delivery & support

Delivery in the Netherlands and Belgium
Shipping and project deliveries across Europe
Support for configuration (extra sections, extra legs, curves, transitions) on request
