Gravity Box Roller Conveyor Set 1200x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm

Create your own review

EUR 800,00 Excl. tax

EUR 968,00 Incl. tax

Excl. Shipping costs

Complete gravity conveyor set: 1200x500 mm section with plastic rollers (105 mm pitch) plus adjustable support leg 651–959 mm. For cartons, trays and parcels. Delivery in NL/BE and across Europe.

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

Gravity Box Roller Conveyor Set 1200x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm

Overview

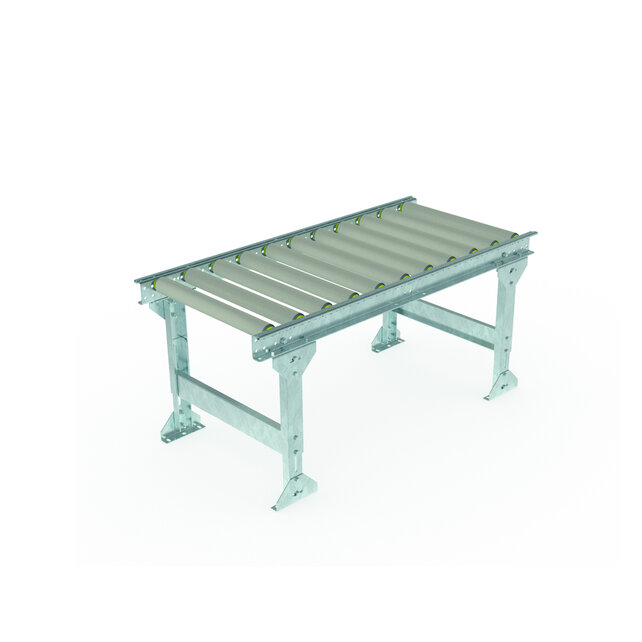

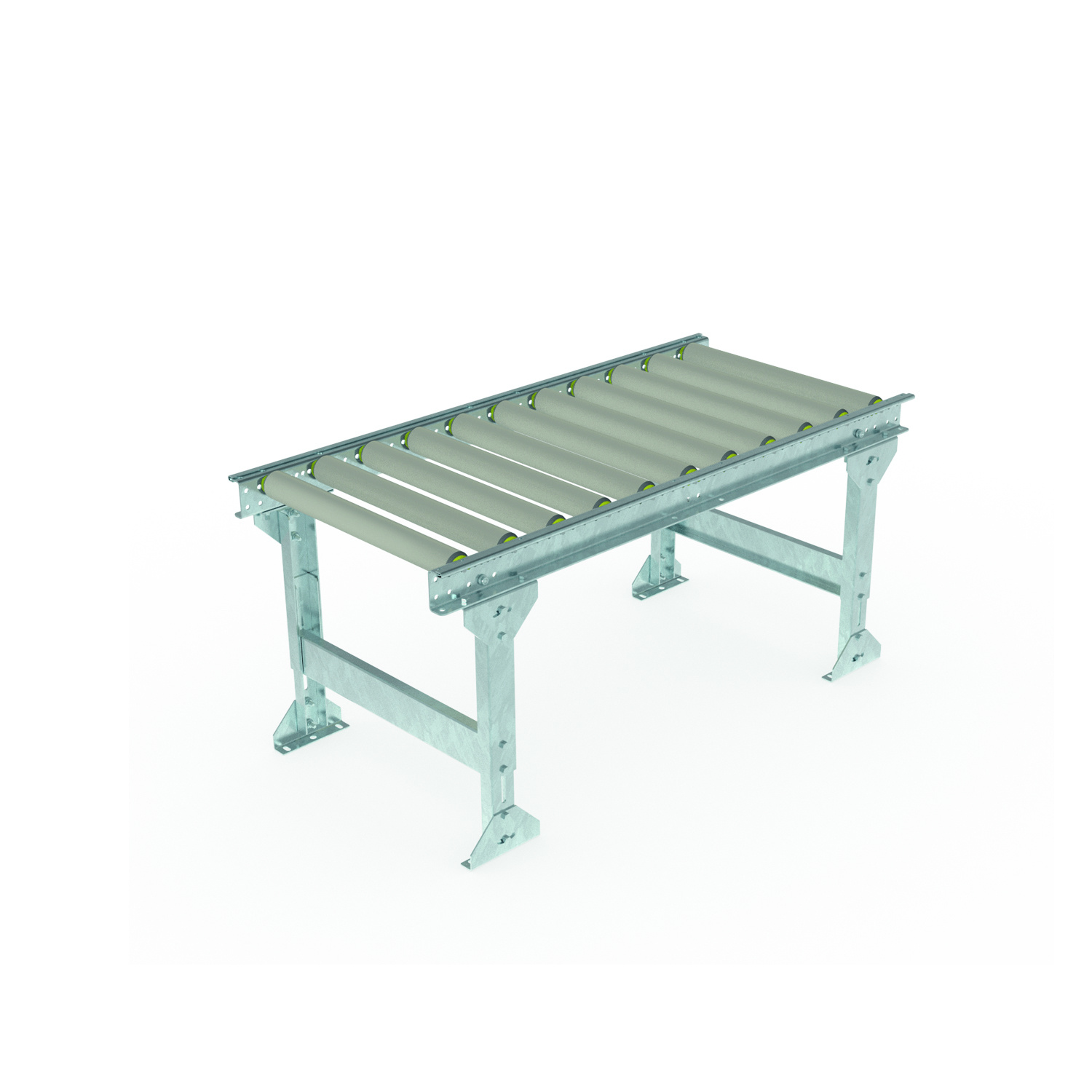

This complete gravity box roller conveyor set combines one conveyor section with an adjustable support leg to create the correct incline. Ideal for moving cartons, trays and parcels in warehouses, production and fulfilment.

Key benefits

One ready-to-buy set: conveyor + leg support as a single webshop product
Height adjustable (651–959 mm): set the incline for smooth gravity flow
Plastic rollers: suited for lightweight loads and quieter conveying
Robust design: side profiles with spring-loaded roller axle
Caster-ready option: lower connection plate can be replaced by SLG999-AC (for a caster with 105x85 top plate)

Typical applications

Carton and parcel handling lanes
Picking/packing lines
Gravity flow buffers
Internal transport for lightweight unit loads

What’s included

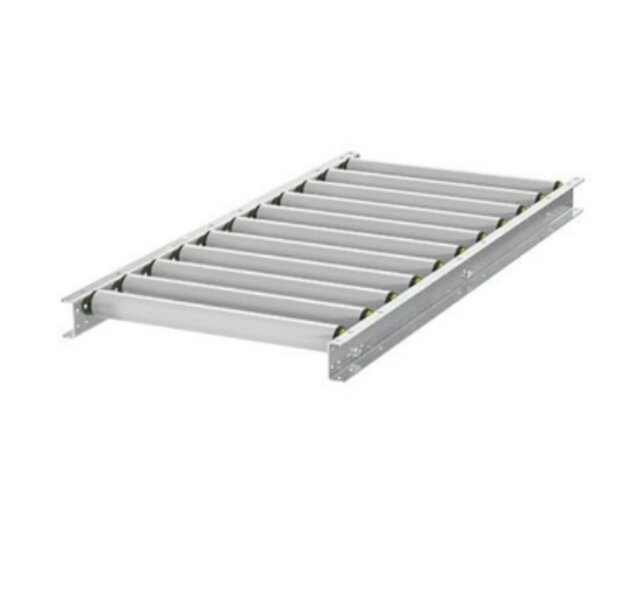

1× Gravity box conveyor 1200x500 mm, plastic rollers, 105 mm pitch (c/c)

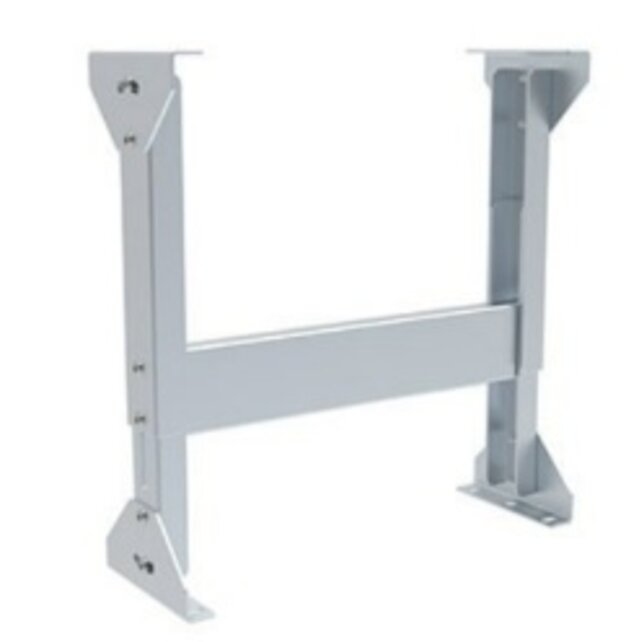

1× Adjustable leg support height 651–959 mm
Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)

Technical specifications

Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.

Specification	Conveyor (Gravity Box Conveyor)	Support Leg (Leg Support)	Notes
Article number	S01250050VF-12	S00005062	Supplied as one set
Length	1200 mm	—	Conveyor section length
Roller width	500 mm	500 mm	Matching conveyor width
Total width	560 mm	560 mm	Overall width
Roller diameter	50 mm	—	Plastic roller
Total height (conveyor)	75 mm	—	Conveyor section height
Leg height range	—	651–959 mm	For incline/working height
Roller pitch (c/c)	105 mm	—	Center-to-center distance
Tread material	Plastic	—
Axle design	Spring-loaded axle Ø8x11 mm	—
Heat resistant	No	No
Load capacity (with legs c/c 1.2 m)	160 kg	—	Depends on layout/conditions
Product weight	13.05 kg	6.53 kg	Total set approx. 19.58 kg

Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.

Delivery & support

Delivery in the Netherlands and Belgium
Shipping and project deliveries across Europe
Support for sizing, adding extra sections/legs, and integration into existing conveyor lines
