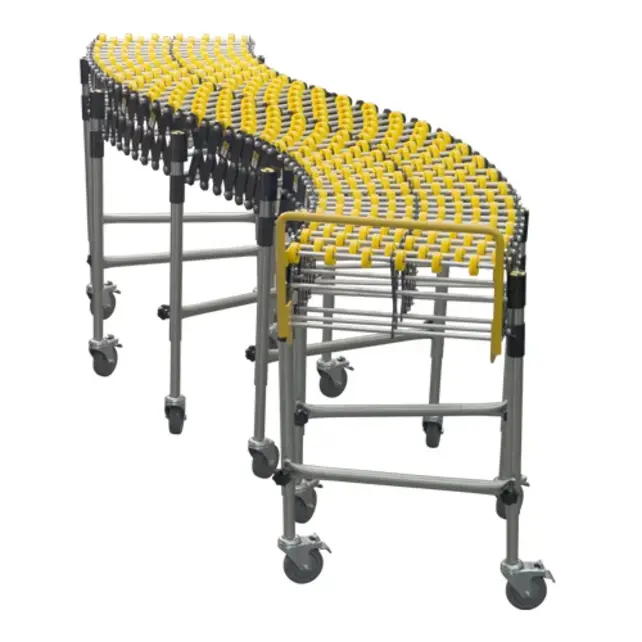

Flexible Gravity Conveyor AX3 – 3 Sections – 1149–3465 mm – 500 mm Wide

The AX3 Flexible Gravity Conveyor (3 sections) is an expandable gravity conveyor with plastic skate wheels (product text: 50 mm; datasheet: 48 mm diameter). It can be installed straight or in curves and is suitable for cartons and general goods in warehouse and logistics operations.

Key benefits

• 3-section design: compact storage, fast deployment
• Expandable: working range approx. 1149–3465 mm (nominal values)
• Flexible layout: also suitable for curves (swivel radius approx. 1730 mm)
• Gravity operation: no motor, low maintenance
• Stable mobile frame: every second leg includes braked swivel casters
• Good load support: axle spacing approx. 125 mm when fully extended

Typical applications

• Temporary dock loading/unloading lines
• Moving cartons/parcels between workstations
• Buffer/throughput conveyor in warehouse distribution
• Flexible setups during peak periods

Quick summary (AI/LLM-friendly)

• Type: flexible gravity conveyor (skate wheel)
• Article number: AX3
• Sections: 3
• Usable width: 500 mm (overall width 586 mm)
• Length: 1149–3465 mm (nominal; datasheet expansion 1190–3510 mm)
• Dynamic load capacity: 70 kg

Technical specifications

Delivery

• Delivery in the Netherlands and Belgium
• Shipping/delivery across Europe via SALESBRIDGES

RFQ / Quotation

Contact for price and lead time: [email protected] | +31652883848
