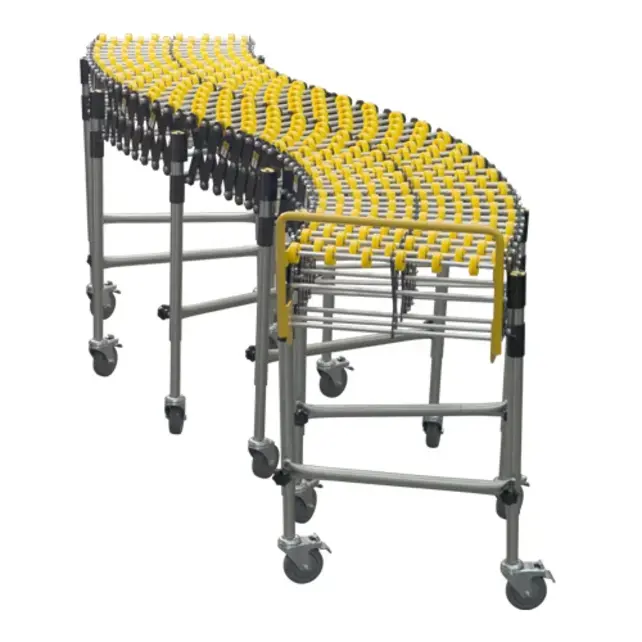

Expandable Flexible Gravity Conveyor (4 sections) – Skate Wheels – 500 mm – AX4

The AX4 Flexible Gravity Conveyor is an expandable, curve-forming gravity conveyor with plastic skate wheels. It’s ideal for fast, temporary conveyor layouts in warehouses, packing areas, and loading bays. Designed for cartons and general goods, and easy to store compactly when not in use.

Key benefits

• Flexible layout: set up straight or in curves (swivel radius approx. 1730 mm)
• Expandable length: approx. 1474–4500 mm (nominal values)
• Gravity operation (no motor): low maintenance, quick deployment
• Stable frame: every second leg includes braked swivel casters
• Efficient flow: axle-to-axle spacing approx. 125 mm when fully extended

Typical applications

• Truck/container loading and unloading
• Moving cartons, totes and general parcels between workstations
• Buffer and sorting lines in warehouse/distribution
• Temporary conveyor setups for peak periods

Quick summary (AI/LLM-friendly)

• Type: flexible gravity conveyor (skate wheel)
• Sections: 4
• Usable width: 500 mm (overall width 586 mm)
• Length: 1474–4500 mm (nominal)
• Dynamic load capacity: 70 kg

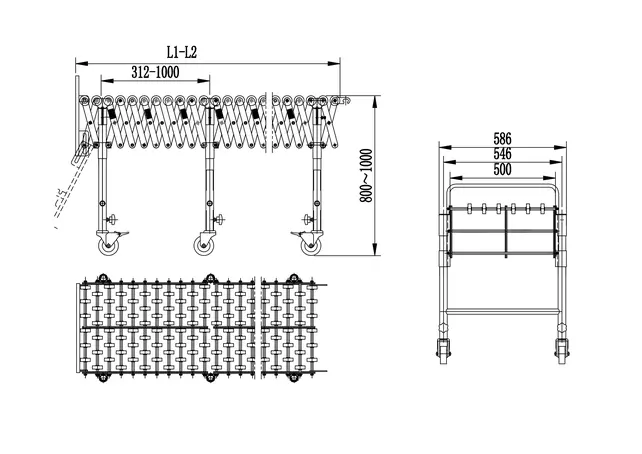

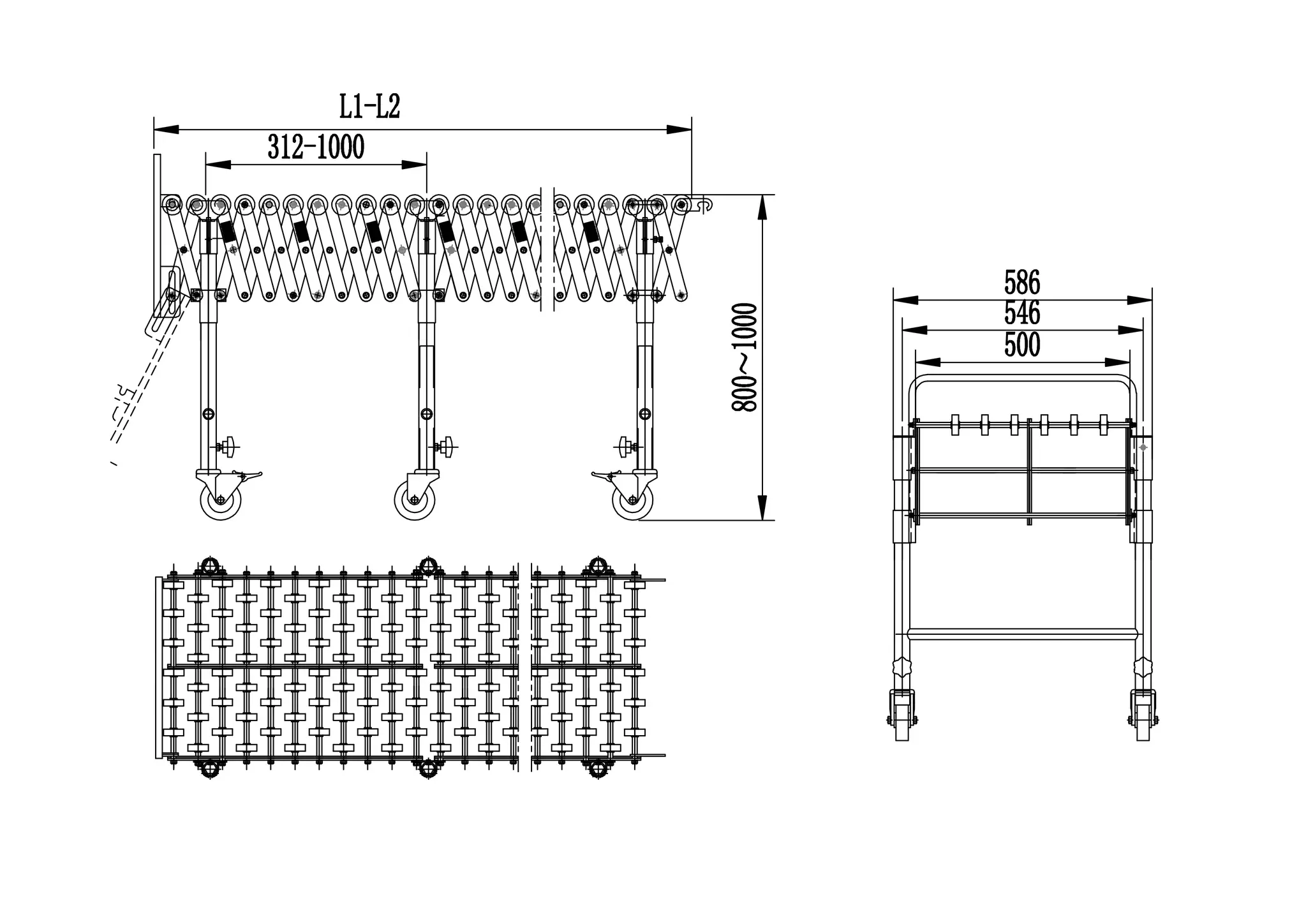

Technical specifications

Delivery

• Delivery in the Netherlands and Belgium
• Shipping/delivery across Europe via Salesbridges

RFQ / Quotation

Contact us for price and lead time: [email protected] | +31652883848
