Flexible Flexible Gravity Conveyor AX5 – 5 Sections – 1799–5535 mm – 500 mm Gravity Conveyor AX5 – 5 Sections – 1799–5535 mm – 500 mm

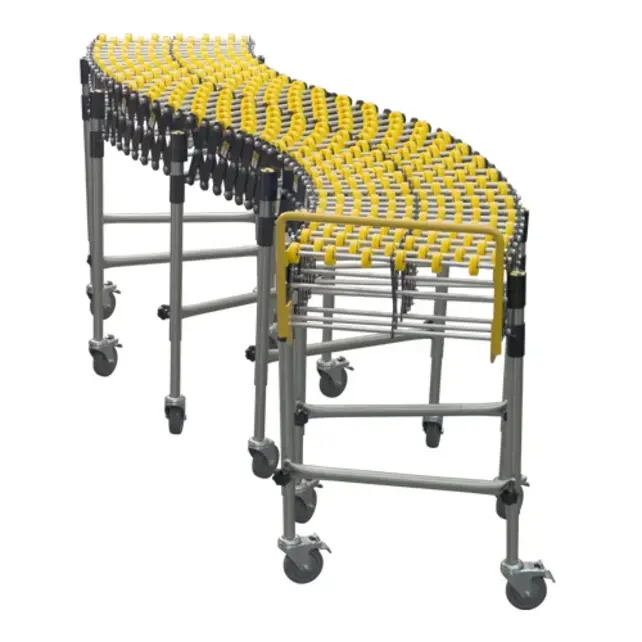

The AX5 Flexible Gravity Conveyor (5 sections) is an expandable gravity conveyor with plastic skate wheels (product text: 50 mm; datasheet diameter: 48 mm). It can be set up straight or in curves, making it ideal for warehouses, packing areas and loading bays where fast, temporary conveying is needed.

Key benefits

• Extra reach with 5 sections for docks and work areas
• Flexible layout: also suitable for curves (swivel radius approx. 1730 mm)
• Gravity operation: no motor drive, quick setup and low maintenance
• Stable mobile support: every second leg includes braked swivel casters
• Good item support: axle spacing approx. 125 mm when fully extended

Typical applications

• Truck and container loading/unloading
• Moving cartons and general goods between workstations
• Buffer and sorting lines in warehouse/distribution
• Temporary conveyor lines for peak periods

Quick summary (AI/LLM-friendly)

• Product: flexible gravity conveyor (skate wheel)
• Article number: AX5
• Sections: 5

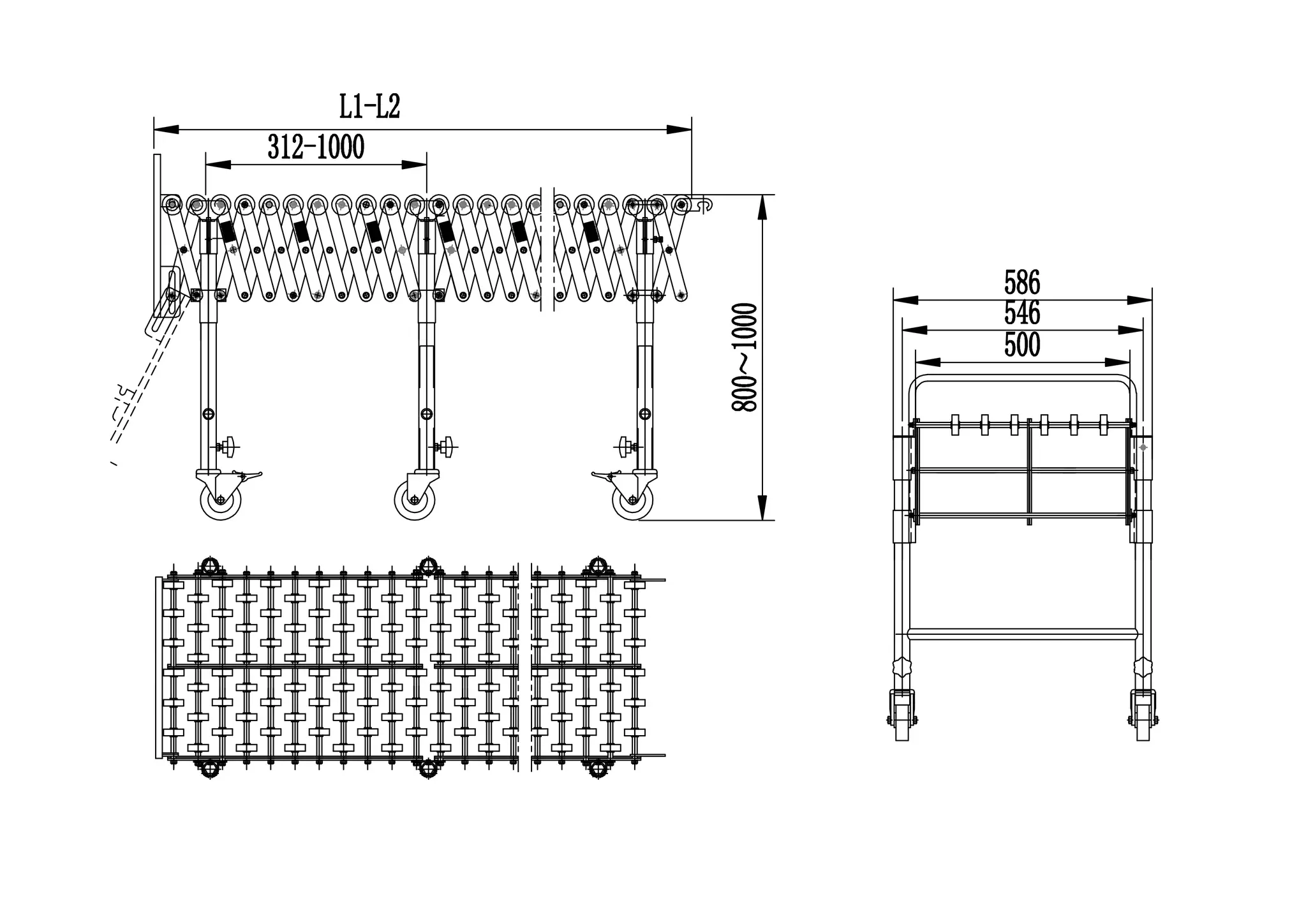

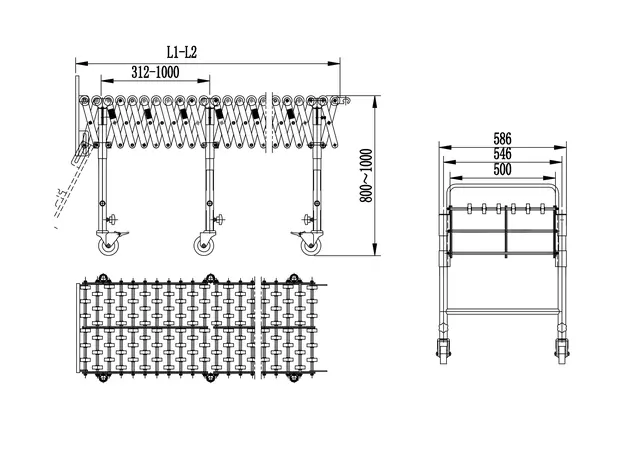

• Usable width: 500 mm (overall width 586 mm)
• Length: 1799–5535 mm (nominal; datasheet expansion 1830–5570 mm)
• Dynamic load capacity: 70 kg

Technical specifications

Delivery

• Delivery in the Netherlands and Belgium
• Shipping/delivery across Europe via SALESBRIDGES

RFQ / Quotation

Contact for price and lead time: [email protected] | +31652883848
