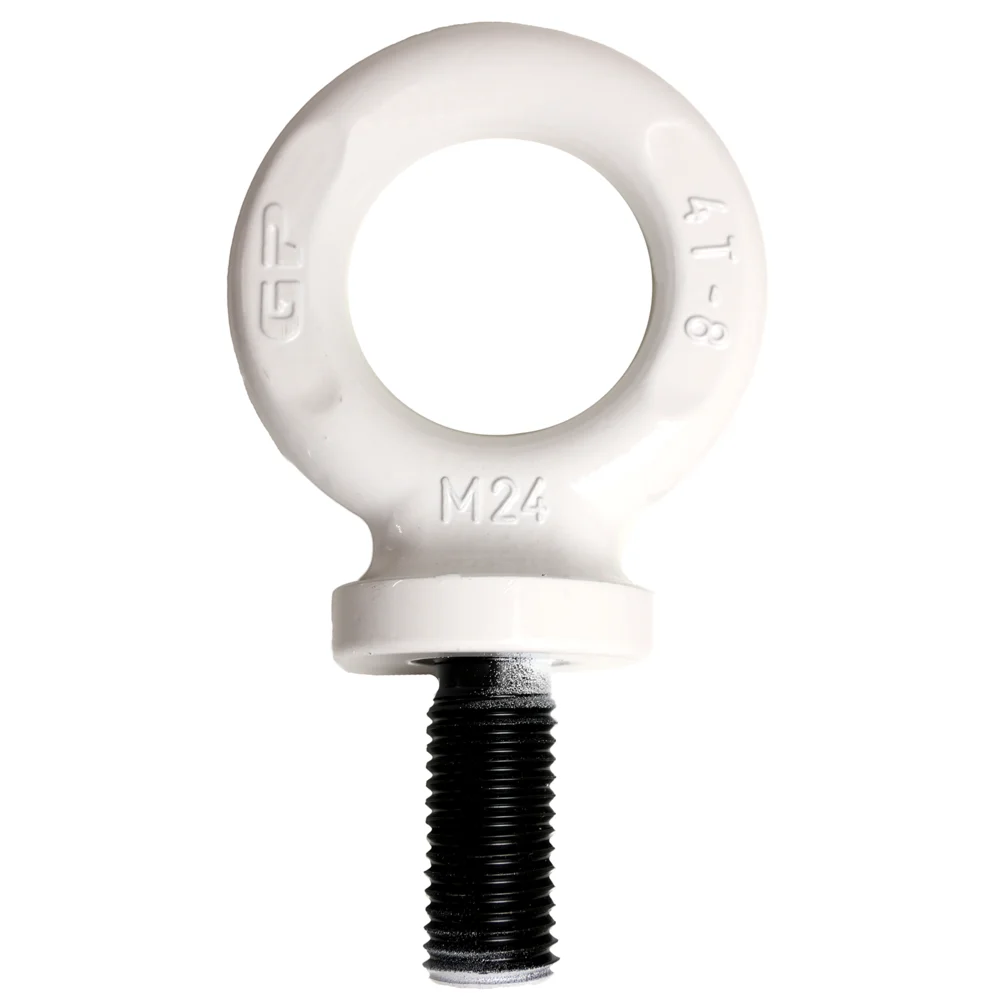

DIN 580 Eye Bolt Grade 8 – High-Alloy Steel
€0,00
Incl. tax
Rema
DIN 580 Eye Bolt Grade 8 – High-Alloy Steel
Price on request
Excl. Shipping costs
High-alloy steel eye bolt | Tighten by hand only
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description
DIN 580 Eye Bolt Grade 8 – High-Alloy Steel
DIN 580 Eye Bolt Grade 8 – High-Alloy Steel – professional lifting component for safe lifting and material handling in industrial applications. Suitable for workshops, production, machine building, logistics and maintenance within the technical limits of the selected variant.
Key features
- High-alloy steel eye bolt
- Tighten by hand only
- Safe workload at a maximum angle of 60° as shown
- Do not load sideways
- According to EN1677 and DIN580
Technical specifications
| Type | WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | M | Weight (kg) | Salesbridges SKU |
|---|---|---|---|---|---|---|---|---|
| DIN580-G8-M8 | 400 | 34 | 7 | 20 | 13 | M8 x 1.25 | 0.05 | SB2675308 |
| DIN580-G8-M10 | 700 | 38 | 8 | 22 | 17 | M10 x 1.50 | 0.07 | SB2675310 |
| DIN580-G8-M12 | 1000 | 47 | 10 | 26 | 21 | M12 x 1.75 | 0.13 | SB2675312 |
| DIN580-G8-M16 | 1500 | 64 | 14 | 35 | 27 | M16 x 2.00 | 0.34 | SB2675316 |
| DIN580-G8-M20 | 2500 | 73 | 16 | 39 | 30 | M20 x 2.50 | 0.52 | SB2675320 |
| DIN580-G8-M24 | 4000 | 95 | 20 | 54 | 36 | M24 x 3.00 | 0.99 | SB2675324 |
Delivery
Delivery is available in the Netherlands and across Europe. Select the correct variant based on WLL, thread size, dimensions and application.
Request a quotation
For pricing, availability or a tailored quotation: [email protected] | +31 6 52883848.
Product information
| Brand | Rema |
| Article code | SB2675308 |
| SKU | SB2675308 |
