S20G Low Headroom Hand Chain Hoist with Geared Trolley 0.5–5 Ton – Lifting Height 3–10 m
S20G low headroom hand chain hoist with geared trolley 0.5–5 ton and lifting height 3–10 m. Supplied with Select 200OD hoist, adjustable for different beam widths and fitted with wheel fracture support devices for extra safety. CE marked to EN13157 and EN
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
S20G Low Headroom Hand Chain Hoist with Geared Trolley – 0.5 to 5 Ton - Lifting Height 3–10 m

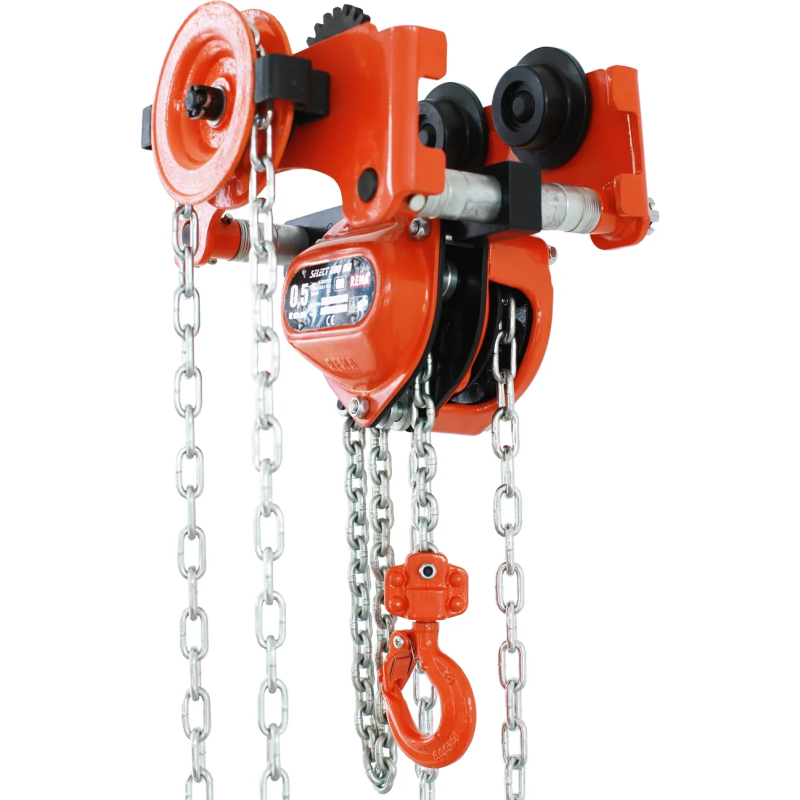

The S20G low headroom hoist/geared trolley combination is designed for applications where limited installation height is critical. This combination is supplied exclusively with the Select 200OD hand chain hoist and provides safe and efficient lifting as well as horizontal load travel.
Thanks to its low headroom design, hand chain operation, and adjustability for different beam widths, this unit is suitable for a wide range of industrial lifting applications. For added safety, the trolley is equipped with wheel fracture support devices.
Key Features
- Capacity: 0.5 to 5 ton
- Available lifting heights: 3 to 10 meters
- Low headroom design for restricted spaces
- Supplied as a geared trolley combination
- Operated by hand chain
- Fitted exclusively with Select 200OD hand chain hoist
- Wheel fracture support devices for additional safety
- Adjustable for different beam widths
- Suitable for industrial lifting and positioning applications
- CE marked

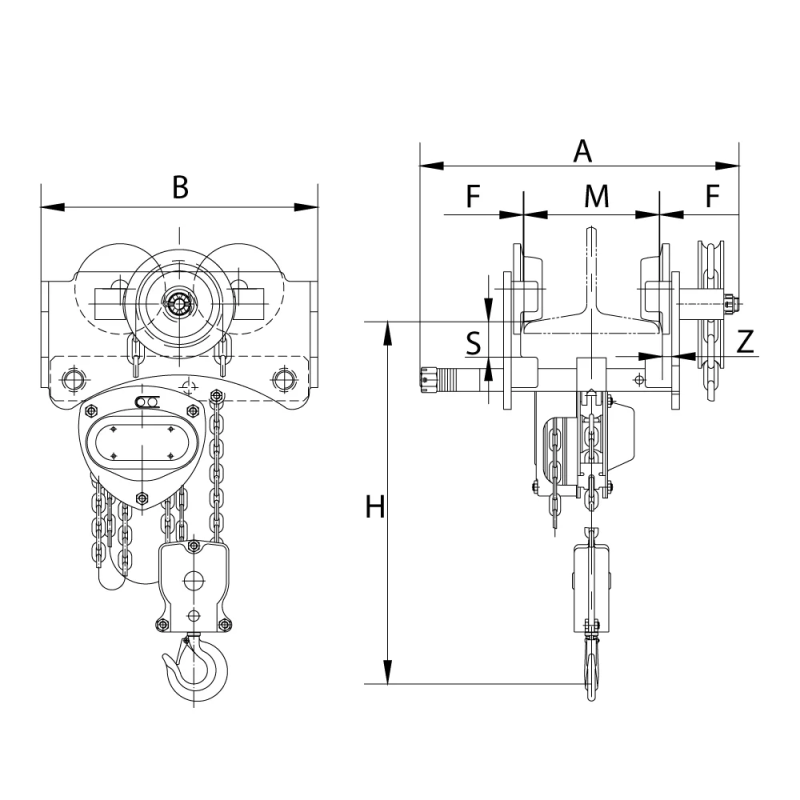

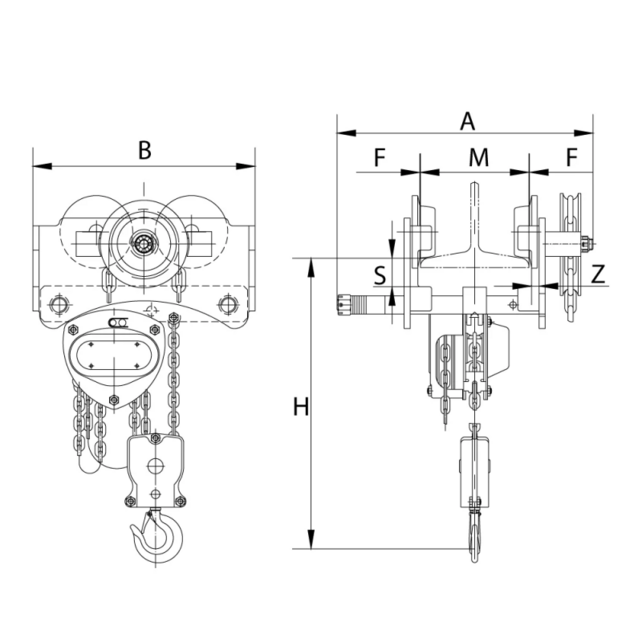

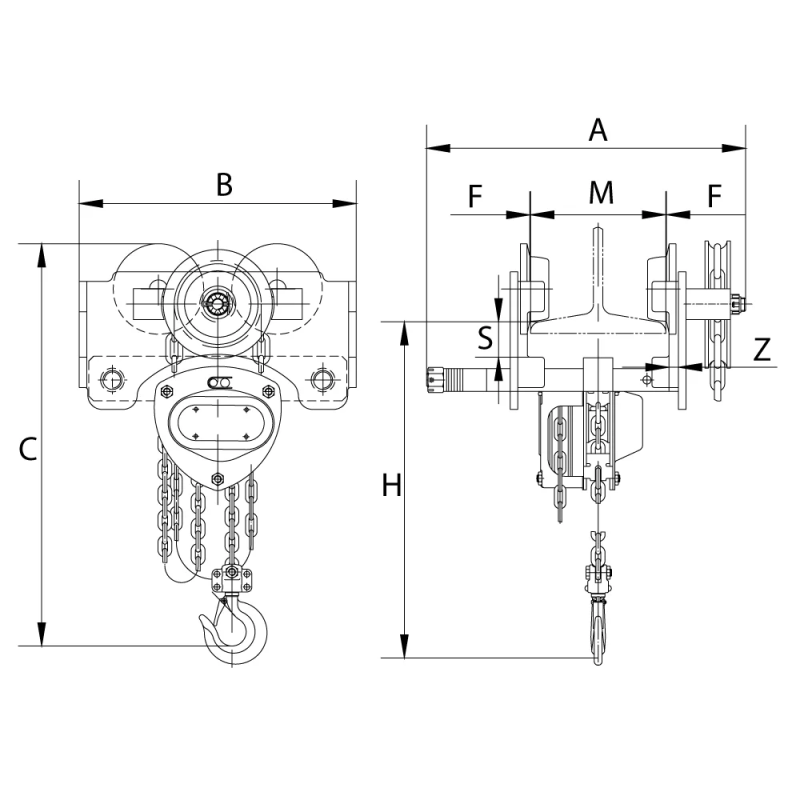

Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 0.5 – 5 ton |
| Lifting height | 3 – 10 m |
| Standard lifting height | 3 m |
| Operating height | 2.5 m |
| Hoist type | Select 200OD |
| Trolley type | Geared trolley |
| Beam width | approx. 50 – 305 mm, depending on model |
| Number of falls | 1 – 2, depending on model |
| Extra safety | Wheel fracture support devices |
| Standards | EN13157, EN818-7 |
| Marking | CE |
Standard Delivery
- Includes hand operated geared trolley
- 3 m lifting height (max. between top and bottom hook)
- 2.5 m operating height
Options
- Other lifting heights on request
- Other operating heights on request
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB09310013 |
| SKU | SB09310013 |
| EAN | 9509242232466 |
