KBT200OD Low Headroom Hand Chain Hoist with Geared Trolley 1–6.3 Ton – Lifting Height 3 m
KBT200OD low headroom hand chain hoist with geared trolley 1–6.3 ton. Extremely low headroom 135–235 mm, suitable for straight and sloping beam flanges, with maintenance-free ball bearings and wheel fracture supports. CE marked.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

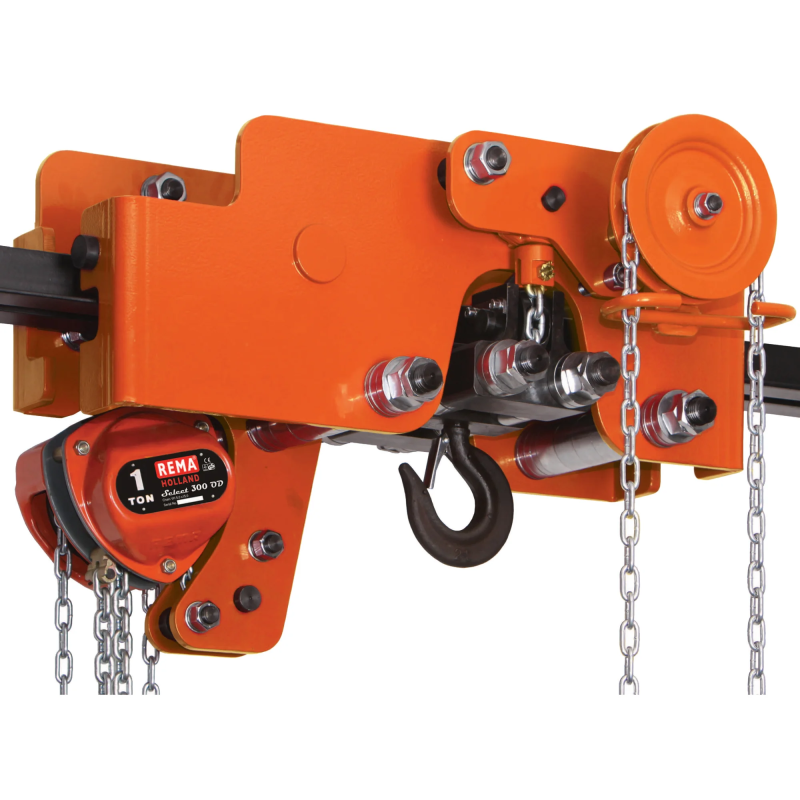

KBT200OD Low Headroom Hand Chain Hoist with Geared Trolley – 1 to 6.3 Ton - Standard Lifting Height 3 m
The KBT200OD low headroom hoist/trolley combination is designed for applications where minimum installation height and maximum hook travel are essential. This unit is only available in combination with the Select 200OD hand chain hoist and is suitable for safe lifting and manual load travel.
With its extremely low headroom of approx. 135 to 235 mm, hand chain operated trolley, and suitability for beams with both straight and sloping flanges, this solution is ideal for a wide range of industrial lifting applications. For additional safety, the trolley is fitted with wheel fracture supports and maintenance-free ball bearings.
Key Features
- Capacities: 1, 2, 3.2, 5 and 6.3 ton
- Standard lifting height: 3 meters
- Operating height: 2.5 meters
- Extremely low headroom: approx. 135 – 235 mm
- Supplied in combination with Select 200OD hand chain hoist only
- Hand chain operated geared trolley
- Suitable for beams with straight and sloping flanges
- Maintenance-free ball bearings
- Wheel fracture supports for additional safety
- CE marked
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 1 / 2 / 3.2 / 5 / 6.3 ton |
| Standard lifting height | 3 m |
| Operating height | 2.5 m |

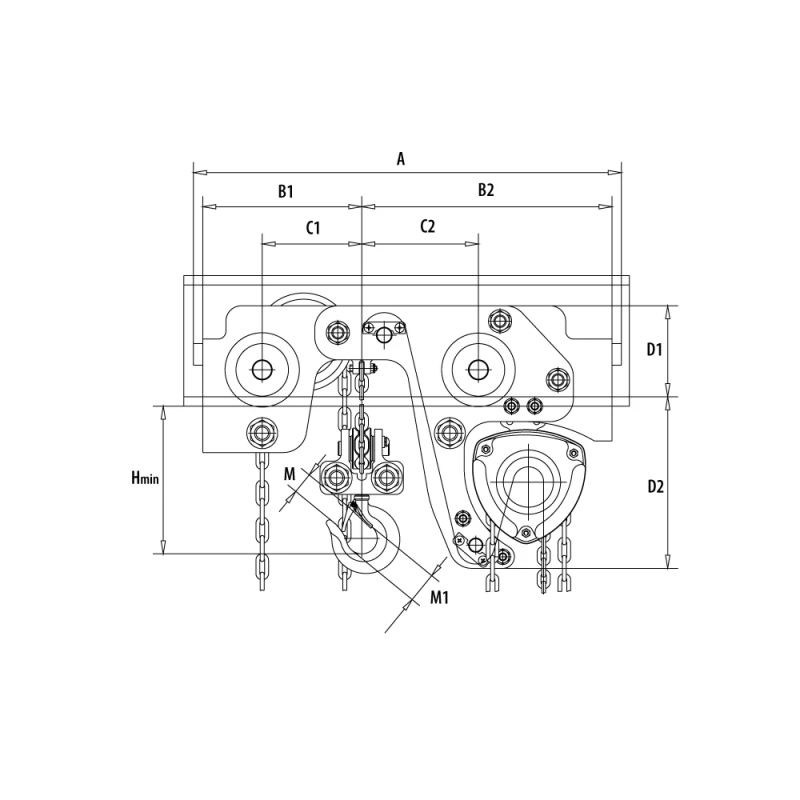

| Headroom | approx. 135 – 235 mm |
| Hoist type | Select 200OD |
| Trolley type | Geared trolley |

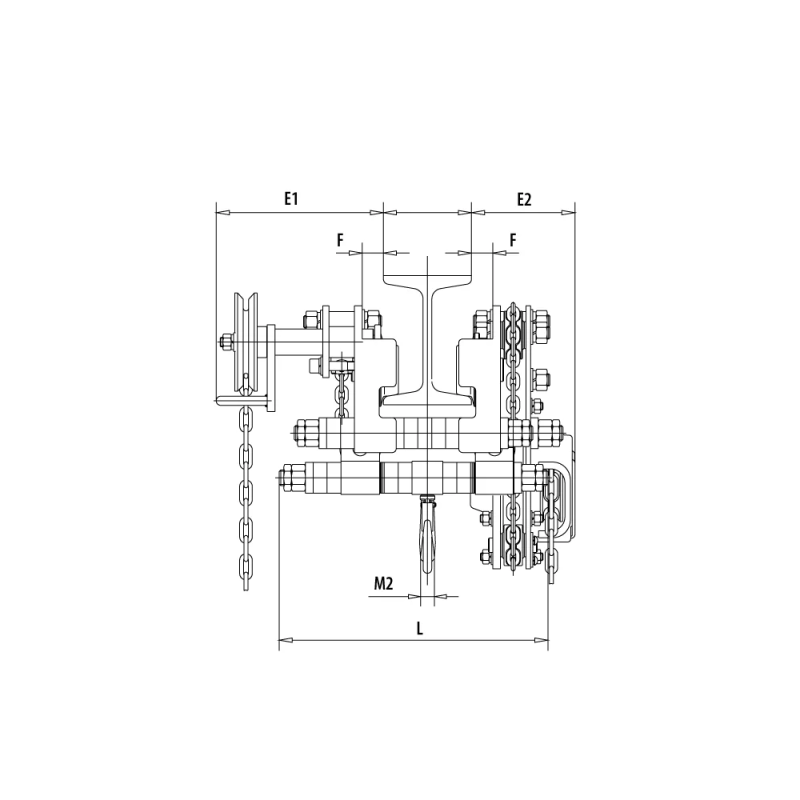

| Flange width | approx. 74 – 223 mm, depending on model |
| Number of falls | 2 – 4, depending on model |
| Load chain | 5.0 x 15 mm to 8.0 x 24.2 mm, depending on model |
| Hand chain | 5.0 x 23.7 mm |
| Minimum radius | approx. 2500 – 6000 mm, depending on model |
| Bearings | Maintenance-free ball bearings |
| Extra safety | Wheel fracture supports |
| Marking | CE |
Standard Delivery
- Supplied as combination with geared trolley
- Only available with Select 200OD hand chain hoist
- 3 m lifting height (max. between top and bottom hook)
- 2.5 m operating height
Options
- Other lifting heights available on request
- Other operating heights available on request
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB0923001 |
| SKU | SB0923001 |
| EAN | 9508877166375 |
