S20P Low Headroom Hand Chain Hoist with Push Trolley 0.5–5 Ton – Lifting Height 3–10 m
S20P low headroom hand chain hoist with push trolley 0.5–5 ton and lifting height 3–10 m. Supplied with Select 200OD hoist, adjustable for different beam widths and fitted with wheel fracture support devices for extra safety. CE marked to EN13157 and EN81
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
S20P Low Headroom Hand Chain Hoist with Push Trolley – 0.5 to 5 Ton - Lifting Height 3–10 m

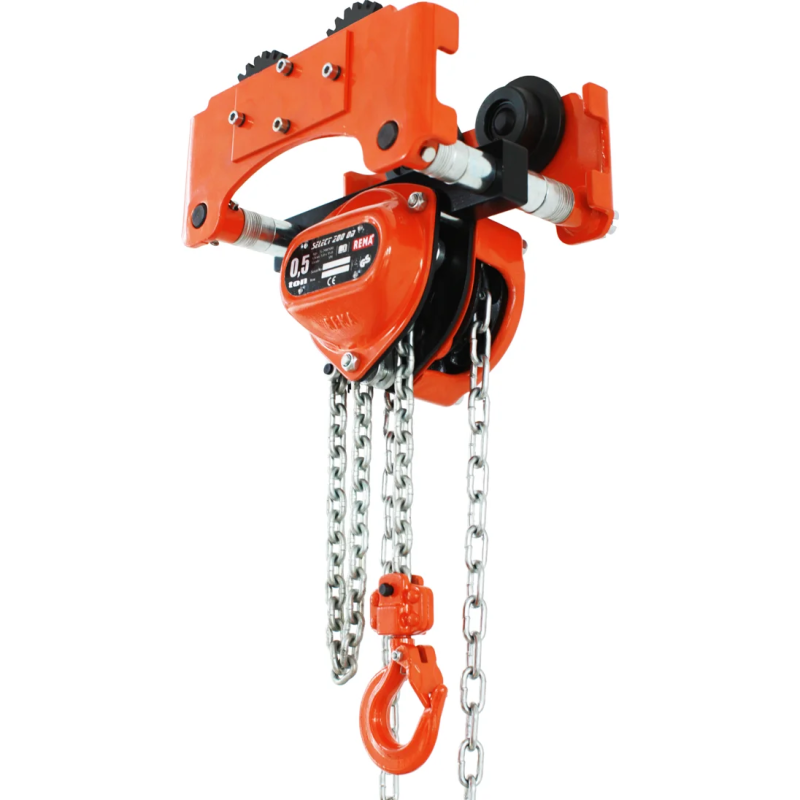

The S20P low headroom hoist/push trolley combination is designed for applications where limited installation height is critical. This combination is supplied exclusively with the Select 200OD hand chain hoist and provides safe and efficient lifting and load travel.
Thanks to its low headroom design, push trolley configuration, and adjustability for different beam widths, this unit is suitable for a wide range of industrial lifting applications. For added safety, the trolley is equipped with wheel fracture support devices.
Key Features
- Capacity: 0.5 to 5 ton
- Available lifting heights: 3 to 10 meters
- Low headroom design for restricted spaces
- Supplied as a push trolley combination
- Fitted exclusively with Select 200OD hand chain hoist
- Wheel fracture support devices for additional safety
- Adjustable for different beam widths
- Suitable for industrial lifting and positioning applications
- CE marked
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 0.5 – 5 ton |
| Lifting height | 3 – 10 m |
| Standard lifting height | 3 m |
| Operating height | 2.5 m |
| Hoist type | Select 200OD |
| Trolley type | Push trolley |
| Beam width | approx. 50 – 305 mm, depending on model |
| Number of falls | 1 – 2, depending on model |
| Extra safety | Wheel fracture support devices |
| Standards | EN13157, EN818-7 |
| Marking | CE |
Standard Delivery
- Includes push trolley
- 3 m lifting height (max. between top and bottom hook)
- 2.5 m operating height
Options
- Other lifting heights on request
- Other operating heights on request
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB09300013 |
| SKU | SB09300013 |
| EAN | 9501576258433 |
