X-Line Hand Chain Hoist 0.25–10 Ton – Lifting Height 3–10 m
X-Line hand chain hoist 0.25–10 ton with lifting height 3–10 m for demanding lifting tasks. Low operating effort, double pawl system, asbestos-free brake discs, galvanized Grade 8 load chain and orange powder-coated steel housing. CE marked to EN13157 and
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
X-Line Hand Chain Hoist – 0.25 to 10 Ton - Lifting Height 3–10 m

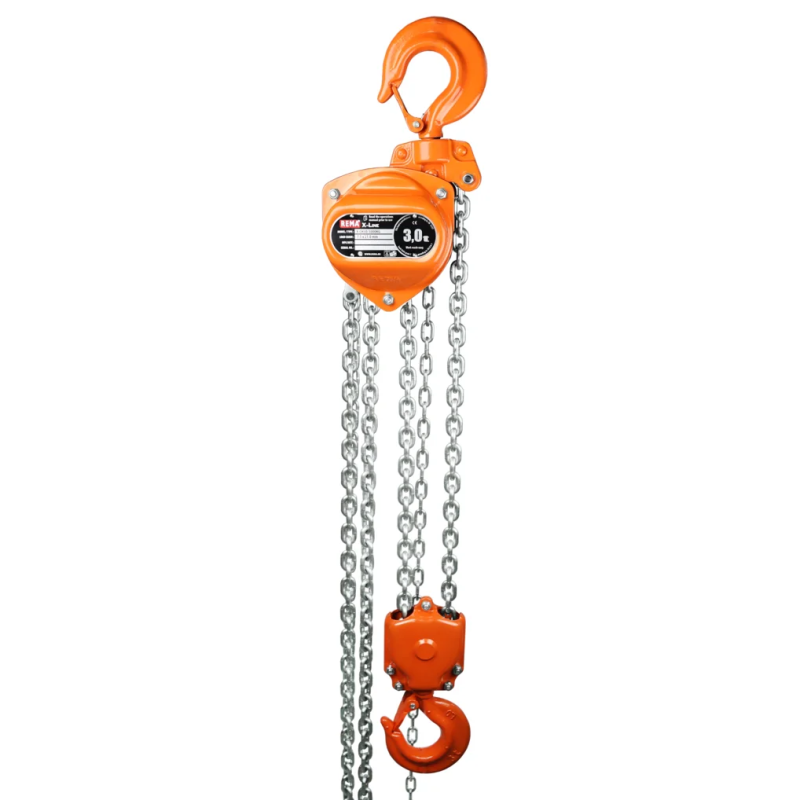

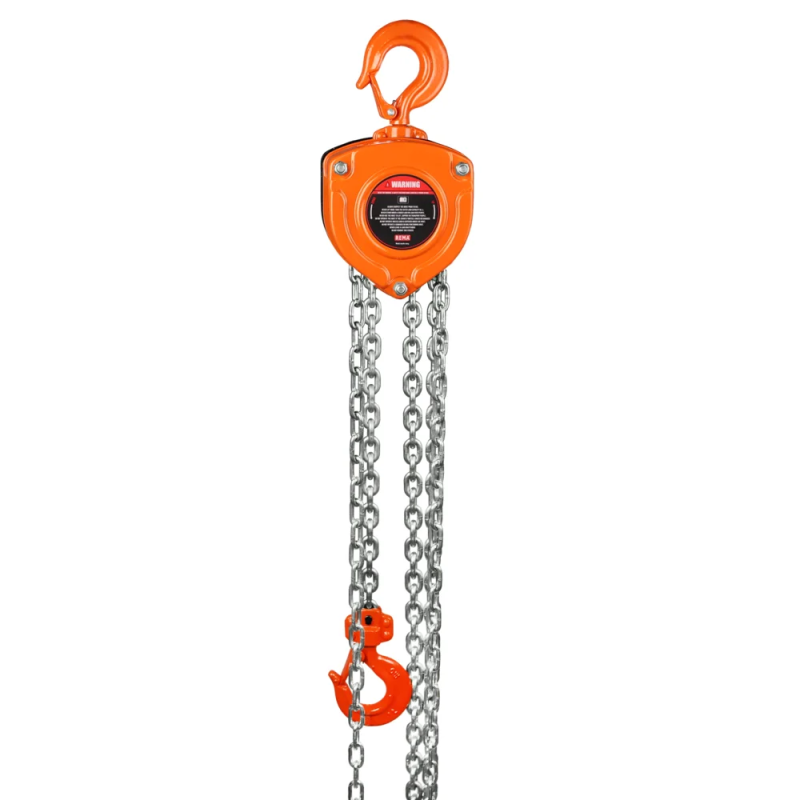

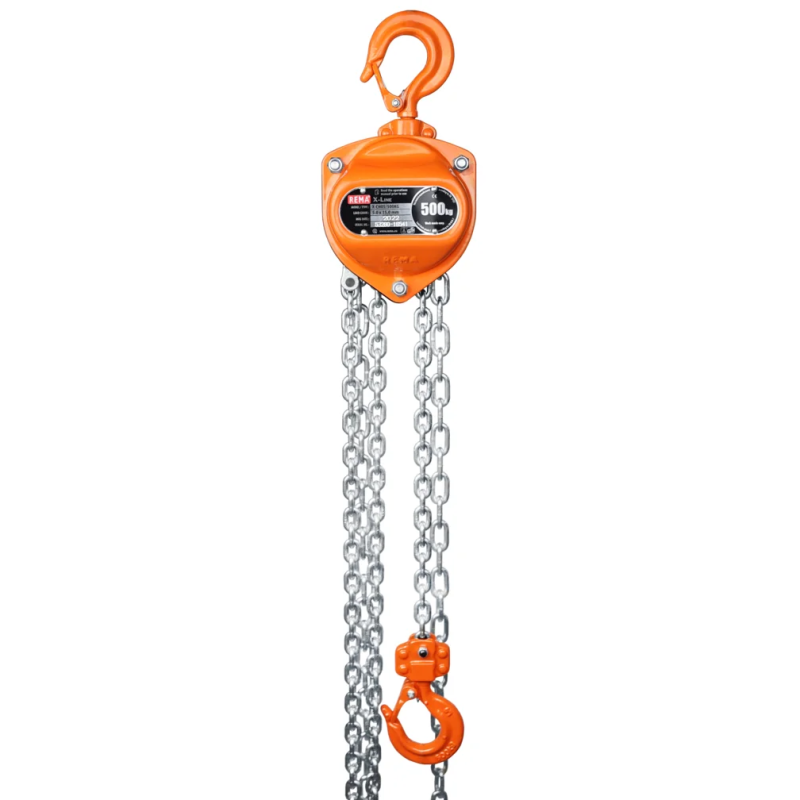

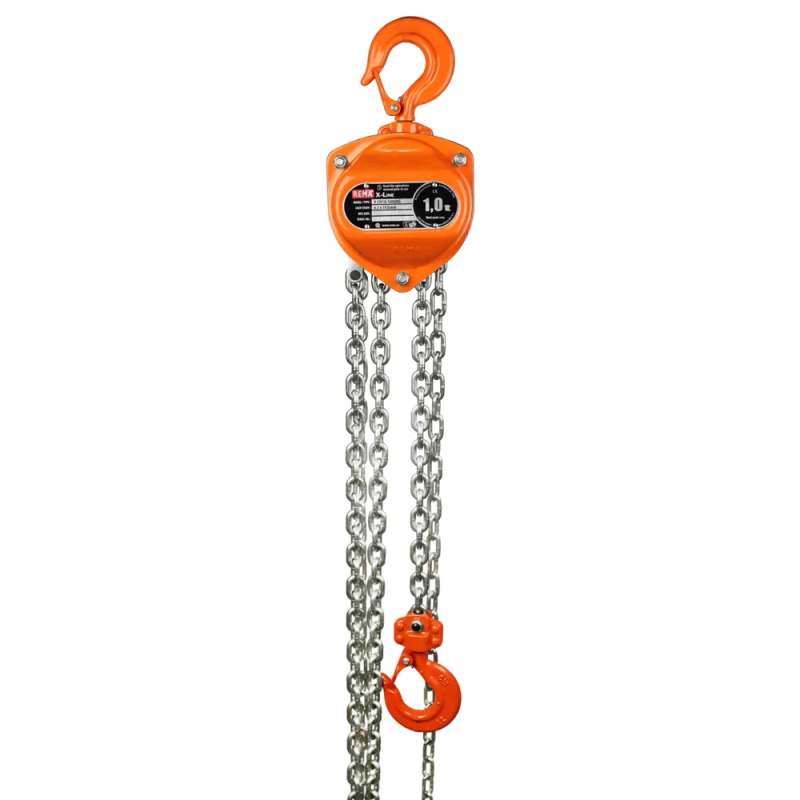

The X-Line hand chain hoist is the solution for demanding lifting tasks. With its low operating effort, durable components and increased safety, it allows efficient and safe operation. The hoist is equipped with a double pawl system, asbestos-free friction discs and a wear-resistant alloy steel load chain wheel. Its highly visible orange powder-coated steel housing adds extra safety in the workplace.
Key Features
- Capacity: 0.25 to 10 ton
- Available lifting height: 3 to 10 meters
- Low operating force at full load
- Increased operational safety thanks to double pawl system
- Brake fitted with asbestos-free friction discs
- Load chain wheel made of wear-resistant alloy steel
- Top and bottom hooks with safety latches
- Hooks gradually bend under overload instead of suddenly breaking
- Galvanized Grade 8 load chain
- Galvanized hand chain
- Steel housing with orange powder coating
- Suitable for demanding and industrial lifting applications
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 0.25 – 10 ton |
| Lifting height | 3 – 10 m |
| Standard operating height | 2.5 m |
| Number of falls | 1 – 4, depending on model |
| Load chain | Galvanized, Grade 8 |
| Hand chain | Galvanized |
| Housing | Steel |
| Finish | Orange powder coating |
| Load chain wheel | Alloy steel, wear-resistant |

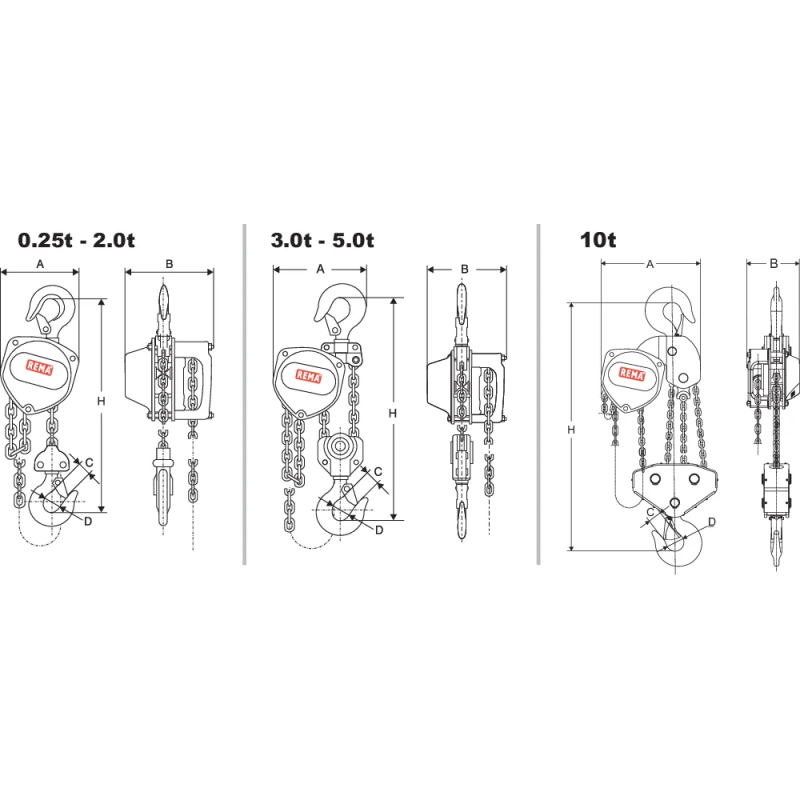

| Construction height | 260 – 820 mm, depending on model |
| Max. hand force | 23.5 – 40 kg, depending on model |
| Standards | EN12100-1/2, EN13157, EN818-7 |
| Marking | CE |
Standard Delivery
- 3 m lifting height (max. between top and bottom hook)
- 2.5 m operating height
Options
- Other lifting heights available
- Other operating heights available
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB01700003 |
| SKU | SB01700003 |
| EAN | 9501598392184 |
