1‑Door Lithium‑Ion Battery Cabinet (90 Minutes) — 5 Lockable Compartments

Download Technical Data Sheet

Range 790+LIAC | Models (white): 794+LIAC5 / 794+LIAC5S | Models (black): 794+NLIAC5 / 794+NLIAC5S

This 1‑door tall lithium‑ion battery safety cabinet is designed for safer storage and controlled charging of Li‑ion batteries in professional environments. With 5 individually lockable compartments, you can separate batteries per user, department, project or risk level—helping reduce the impact of overheating, vapours, electrolyte leaks or thermal runaway events.

Ideal for many markets and industries

These cabinets are an excellent fit for a wide range of organisations, including:

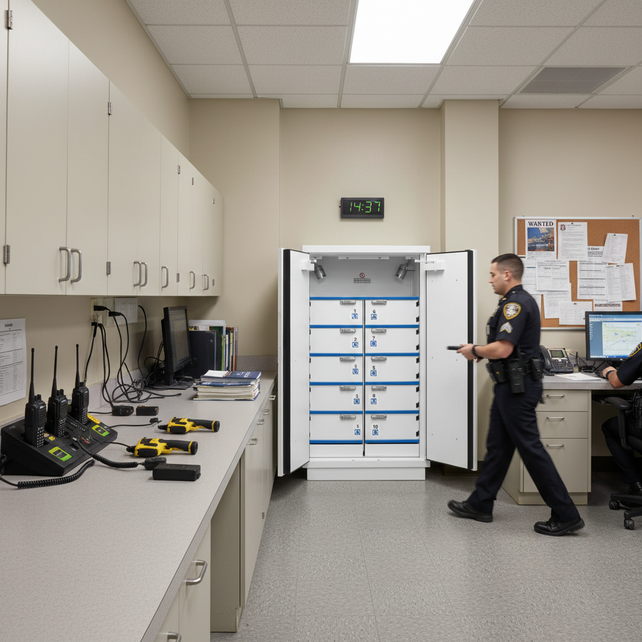

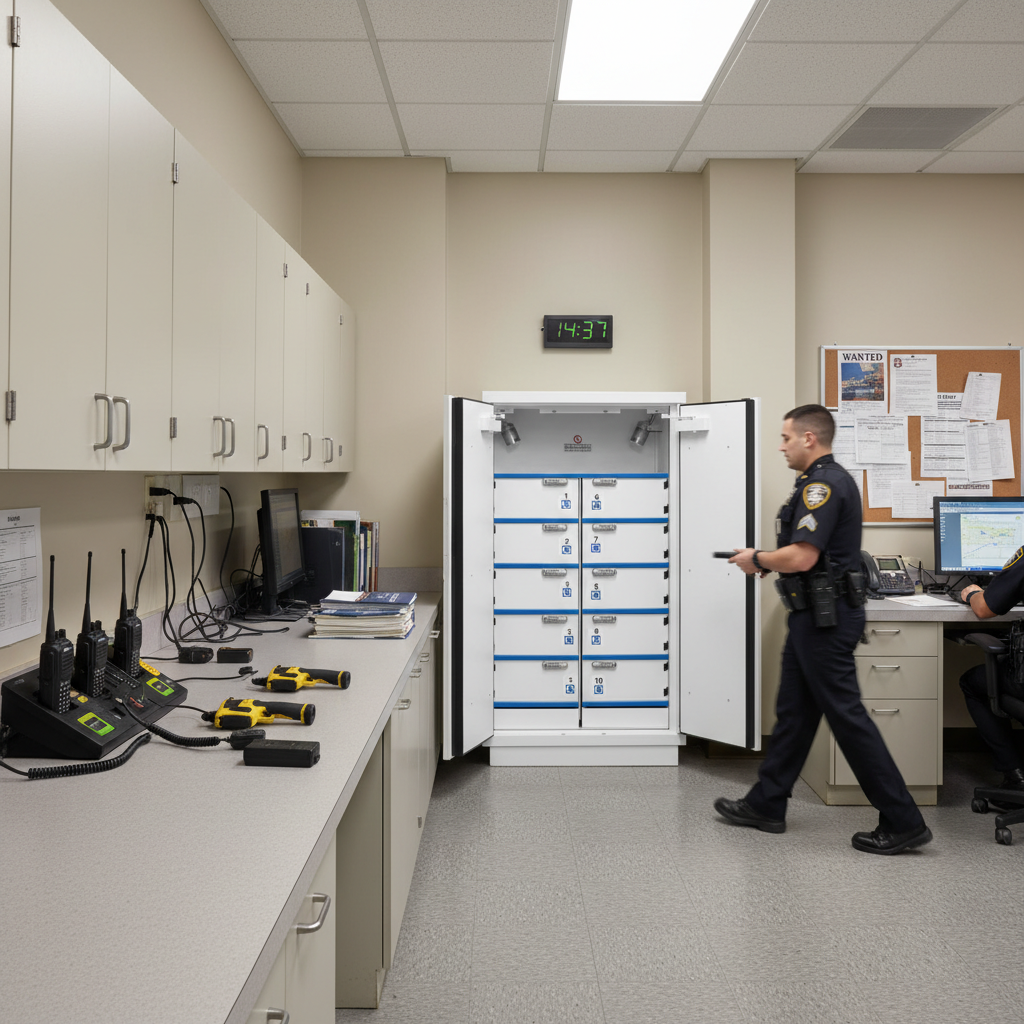

• Police stations and security services (radios, bodycam batteries, equipment packs)

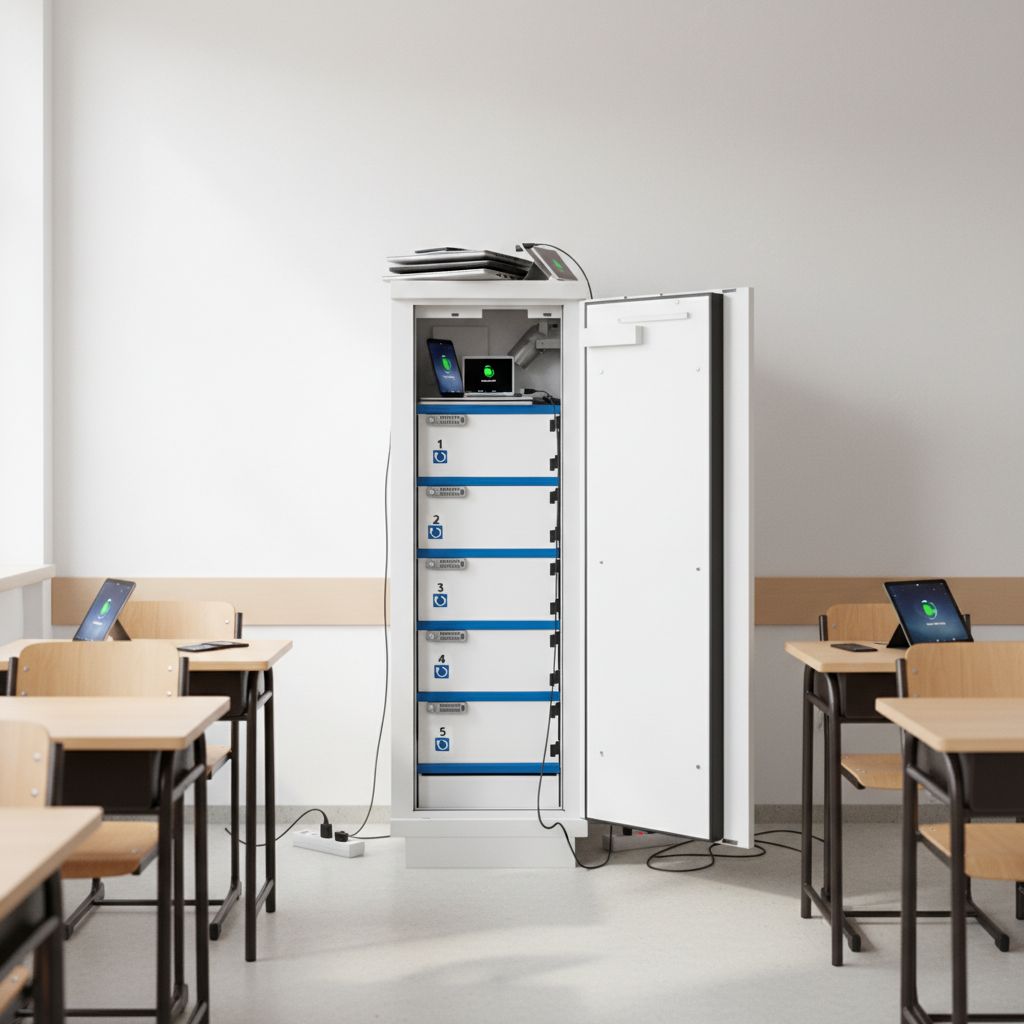

• Schools, colleges and universities (STEM labs, technical rooms, managed charging)
• Factories and industrial sites (maintenance batteries, tooling, test equipment)
• Workshops and service centres (e‑bike batteries, power tool batteries, returns/RMA)
• Warehousing and logistics (scanners, handheld terminals, operational batteries)

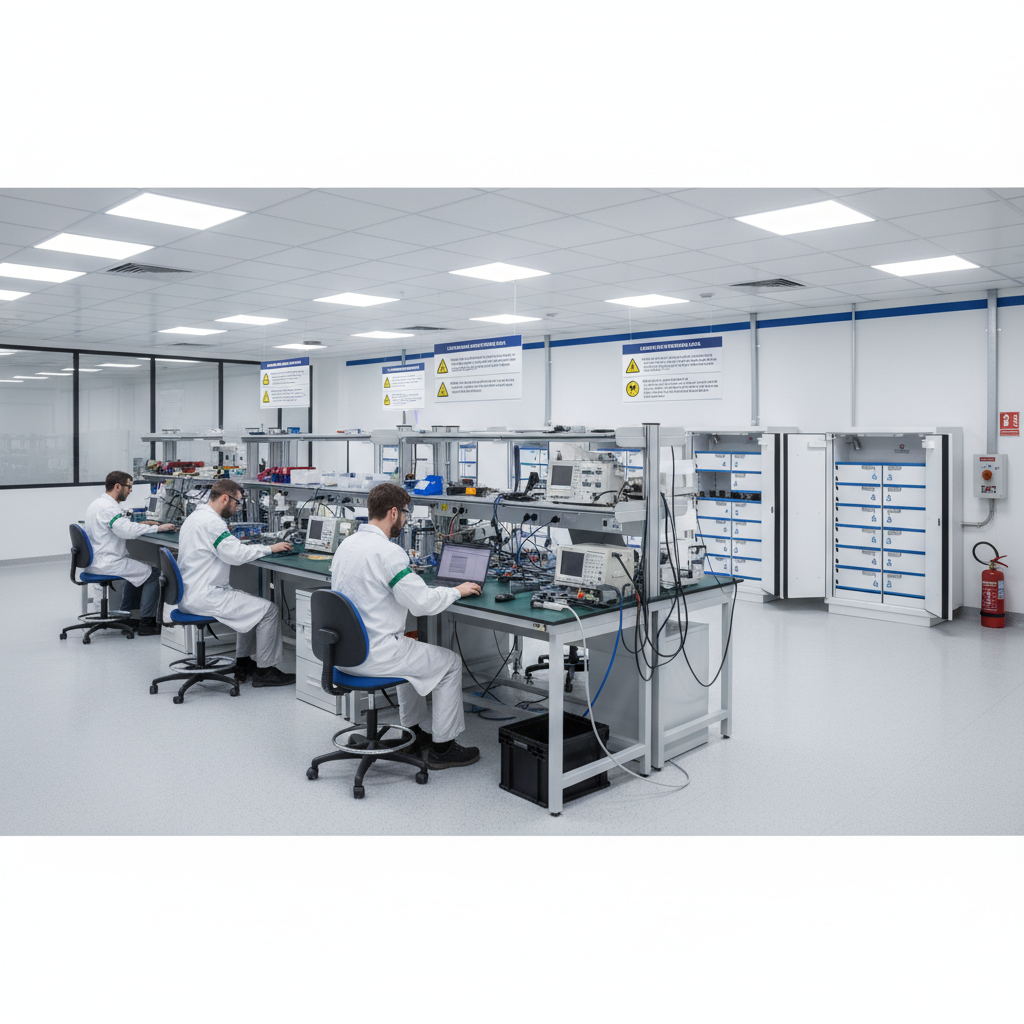

• R&D and laboratories (test batteries, separation by project)

Key benefits

• 90‑minute fire resistance (outside → inside): tested for 105 minutes and approved for 90 minutes (EN 14470‑1 & EN 1363‑1)
• Fire-stop construction (inside → outside): certified EI 180 minutes Type A1 (NF EN 13501‑2)
• FM6050 tested and approved

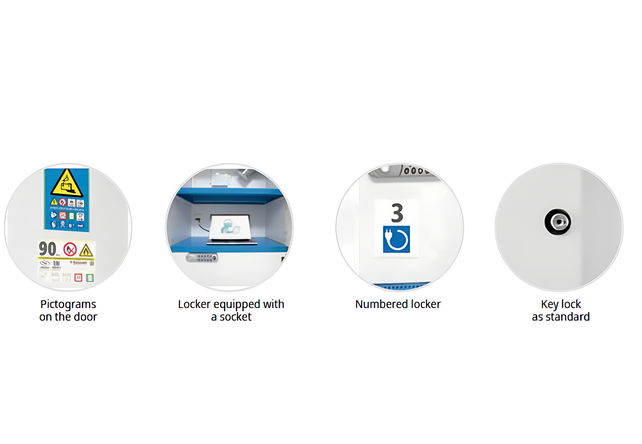

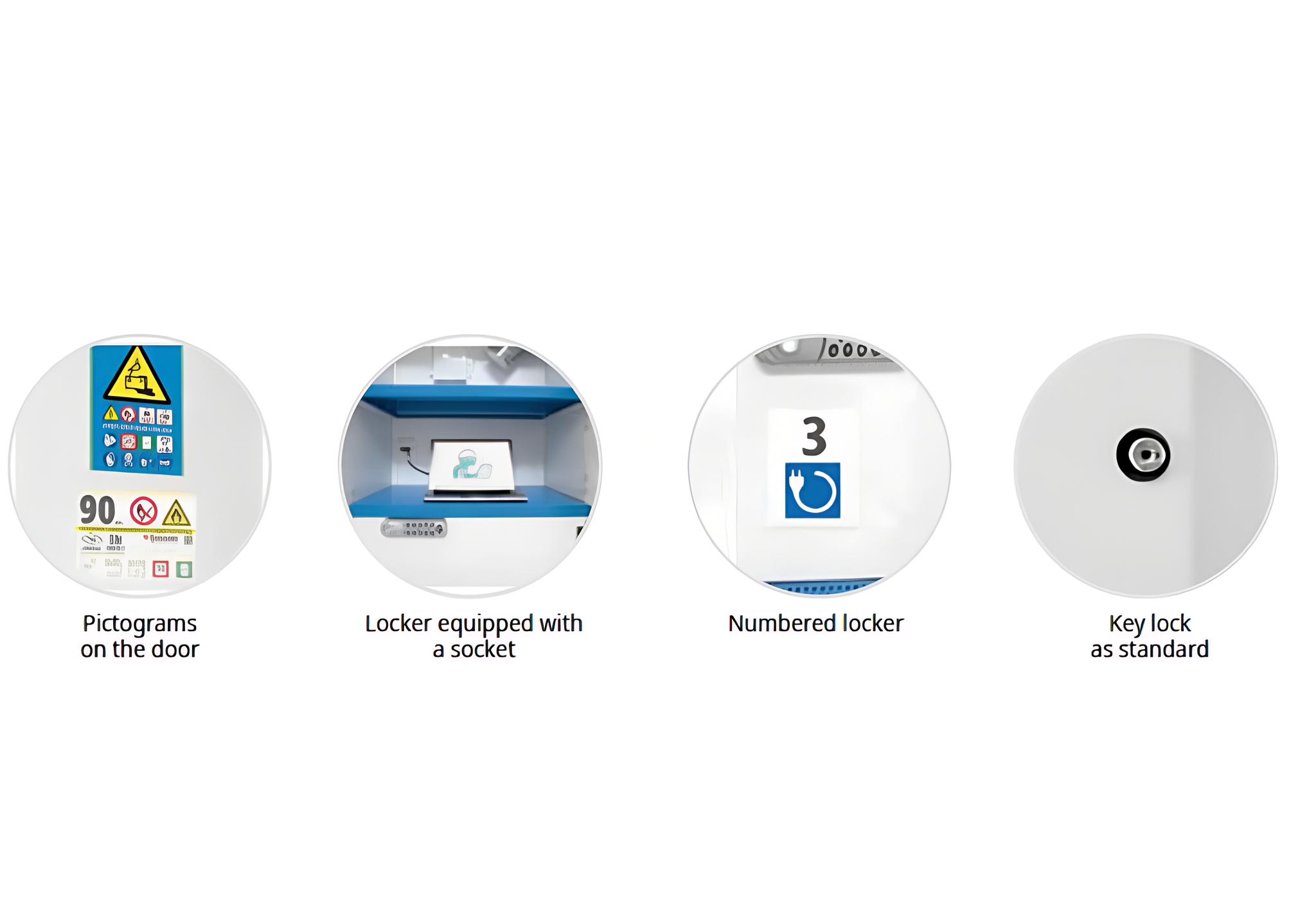

• 5 compartments (approx. 20 cm high) secured with key lock or digital code lock (version dependent)
• Automatic fire extinguisher triggered at 79°C (EX100LI)
• Self-closing door + thermo-expanding seals
• Ventilation ports with Ø100 mm outlet for connection to a ventilation system
  • Forced ventilation is strongly recommended to prevent heat build-up and vapour stagnation in case of electrolyte leakage
• Type E / 220V socket in each compartment
• Delivery in the Netherlands and Belgium, and shipping across Europe

Compliance & standards

• EN 14470‑1 & EN 1363‑1 (fire resistance outside → inside)
• NF EN 13501‑2 (fire-stop classification EI 180, inside → outside)
• FM6050 (tested/approved)
• EU Regulation 2023/1542, Article 42‑4 (storage/transport conditions ensuring battery compliance)
• EN 16121+A1 Level 2 (durability: 80,000 opening/closing cycles; shelf loading defined by manufacturer)
• ISO 3864 / ISO 7010 pictograms + European Directive 92/58/EEC

Construction & standard equipment

• Steel construction with triple-wall design and double thermal insulation
• External walls: 12/10 grade steel, epoxy paint RAL 9010 white (RAL 9005 black for NLI references)
• Thermal insulation panels to reduce thermal bridges
• Melamine interior panels
• Perforated shelves, 50 kg load capacity
• Removable containment sump at the bottom (B148)
• Ventilation ducts with hot-melt system to isolate the cabinet contents in case of fire
• Earthing (grounding) fixing point
• 1 socket per locker

Versions (locking)

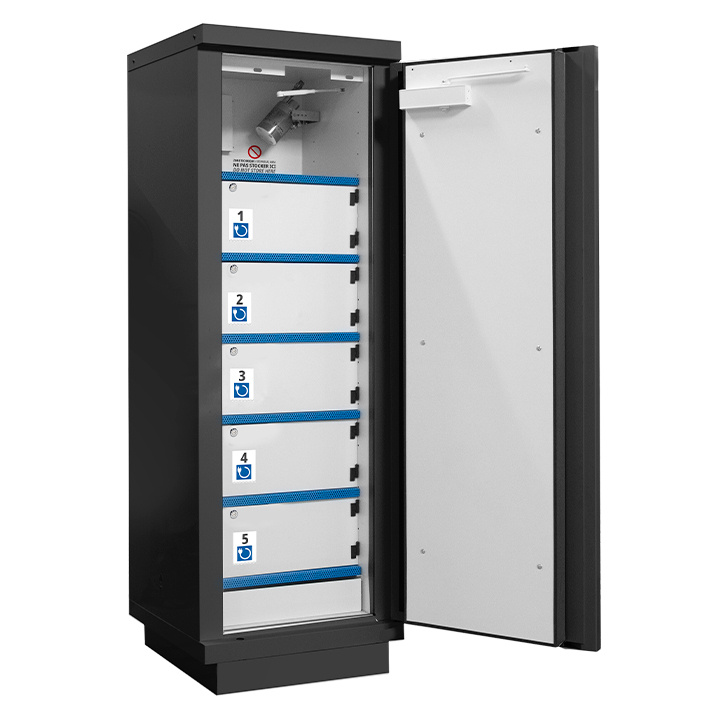

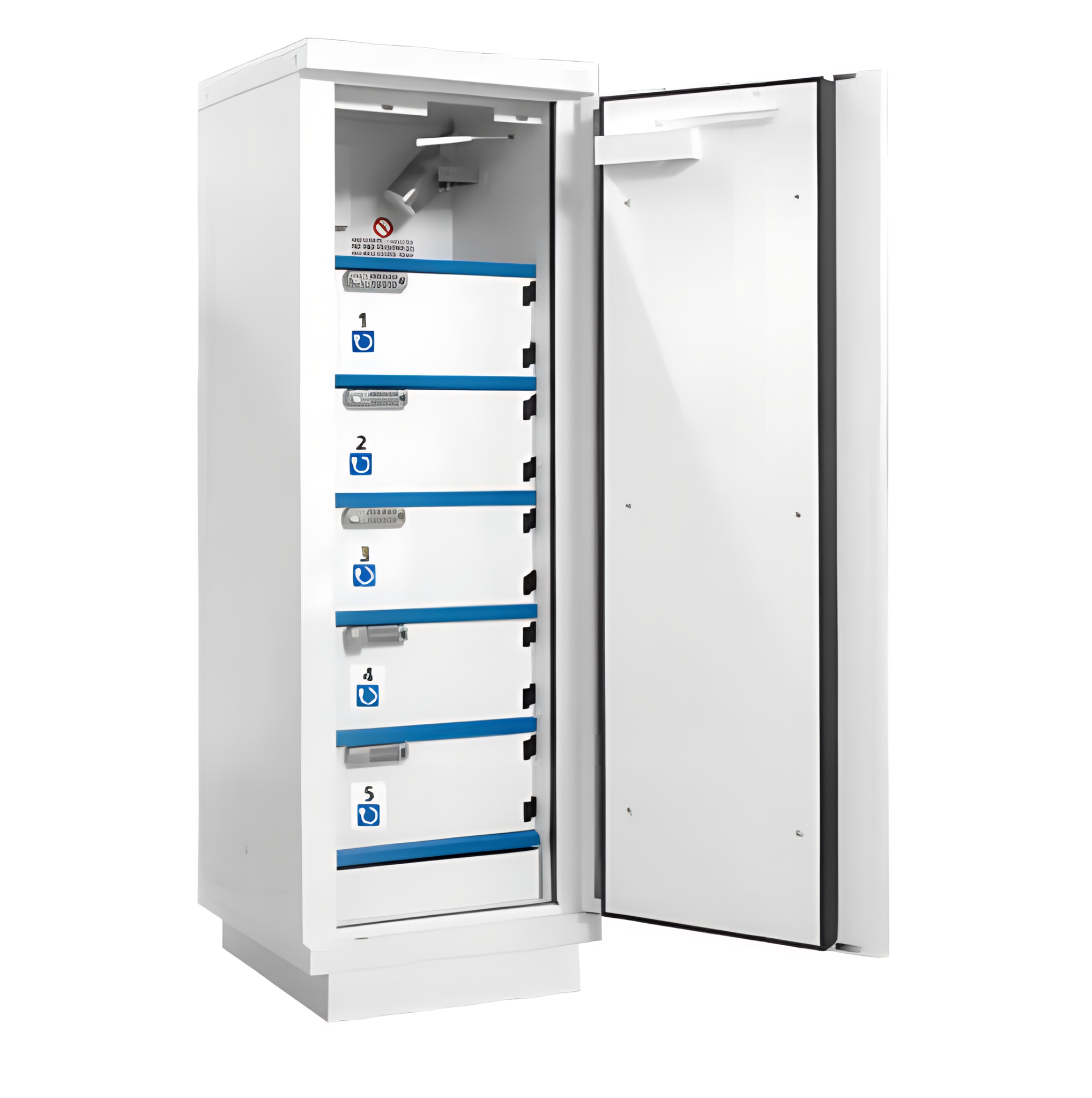

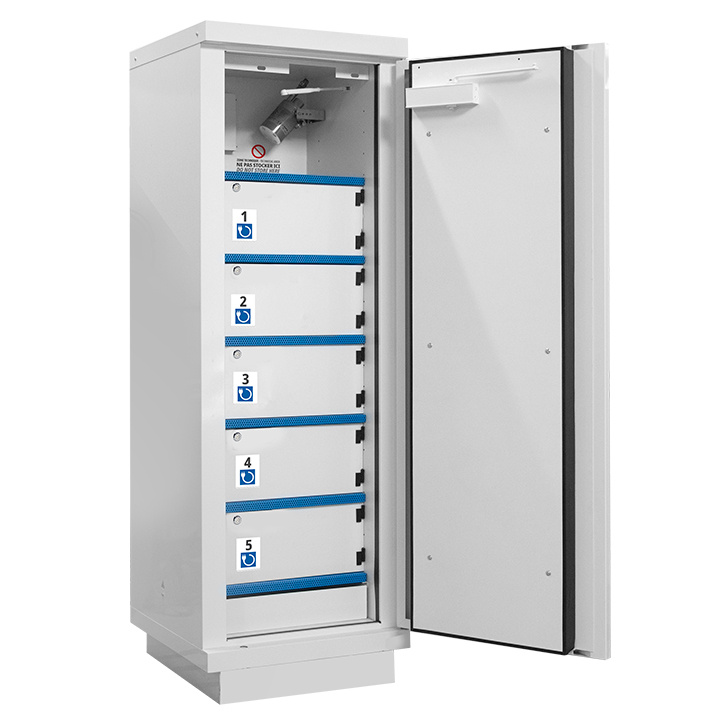

• 794+LIAC5 / 794+NLIAC5: key lock compartments

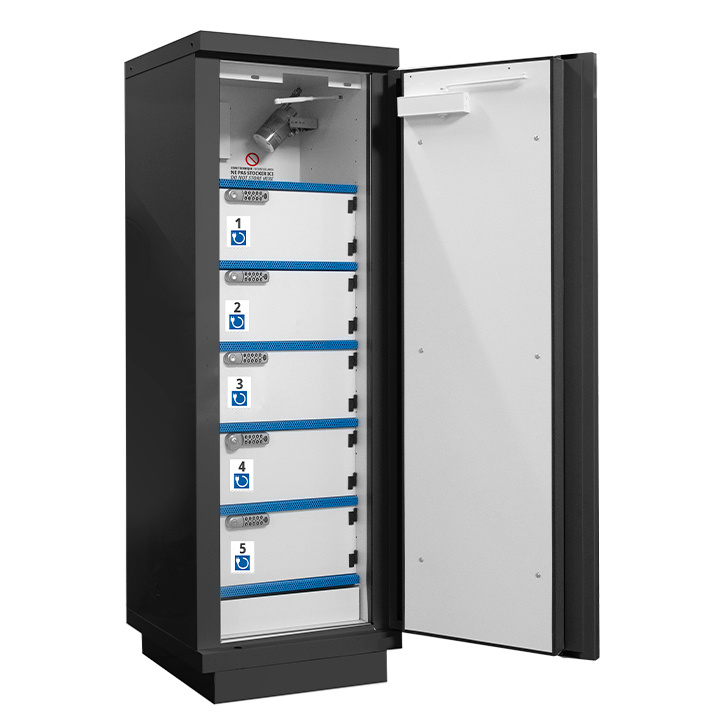

• 794+LIAC5S / 794+NLIAC5S: compartments with digital code lock (SERCODE) + security key

Optional accessories

• SERCODE: digital code lock for each compartment (with security key)
• CDV-A: steel ventilation box
• KRC: connection kit (between box and cabinet)
• ALARMWI: connected smoke detector with mobile app alarm (Wi‑Fi)
• SED: Wi‑Fi alarm and data logger system
• ONDULI: 4‑socket safety UPS/inverter (230V, 300W, 500VA)

Technical specifications (1‑door / 5 compartments)

Other sizes available: a larger 2‑door / 10‑compartment version and additional configurations on request.
