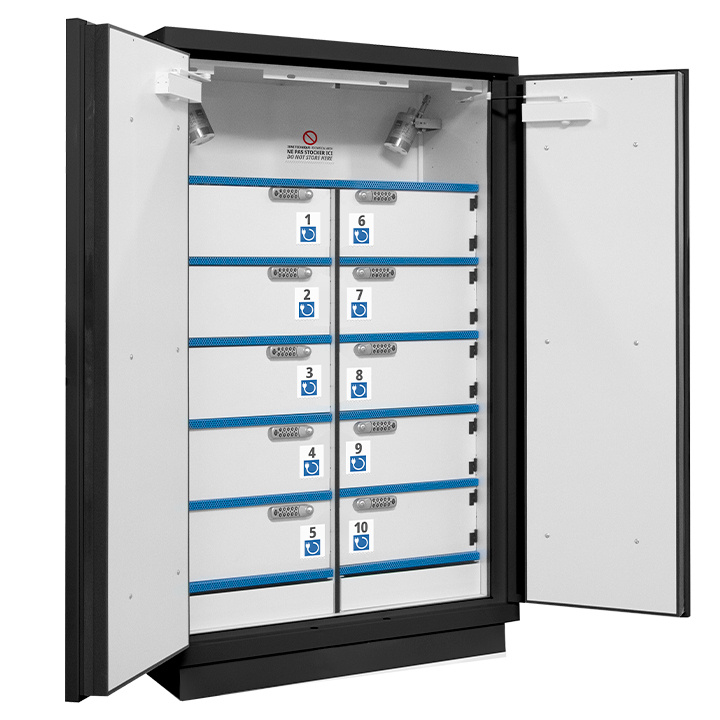

2‑Door Lithium‑Ion Battery Storage Cabinet (90 minutes) — 10 Lockable Compartments

Download Technical Data Sheet

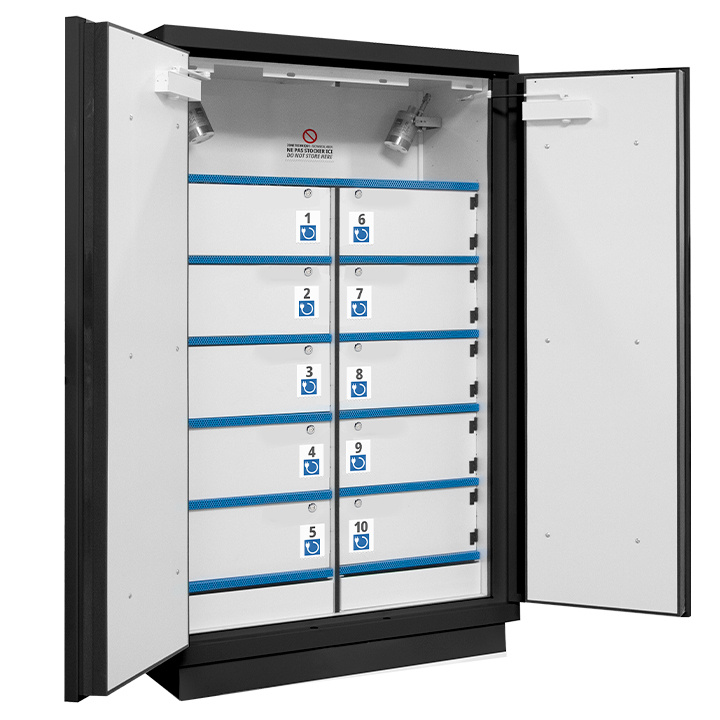

Range 790+LIAC | Models: 795+LI2AC10 / 795+LI2AC10S (also available in black: 795+NLI2AC10 / 795+NLI2AC10S)

For higher-capacity storage and charging workflows, this 2‑door, 90‑minute fire‑resistant Li‑ion cabinet provides 10 separate secured compartments, dual containment and enhanced suppression coverage. It is ideal for organisations managing multiple battery packs (tools, e‑mobility, service batteries, RMA/returns, test cells) and needing clear segregation by department, project, or user.

Excellent for many markets and industries

These cabinets are a strong fit wherever lithium‑ion batteries are stored or charged at scale, including:

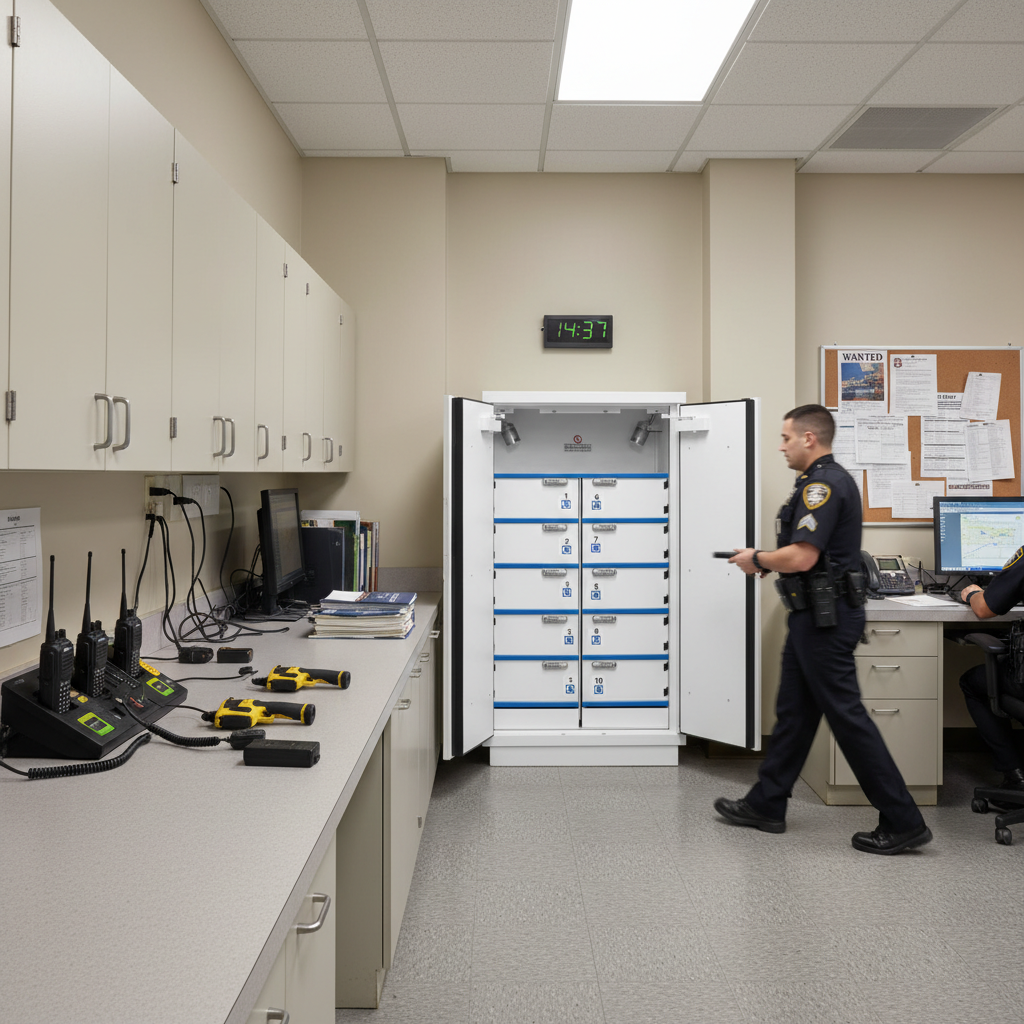

• Police stations and security services (radios, bodycam batteries, equipment packs)
• Schools, colleges and universities (STEM labs, technical rooms, managed charging)
• Factories and industrial sites (maintenance, power tools, test/measurement equipment)
• Workshops and service centres (e‑bike batteries, tool batteries, repair/RMA)
• Warehousing and logistics (scanners, handheld terminals, operational batteries)

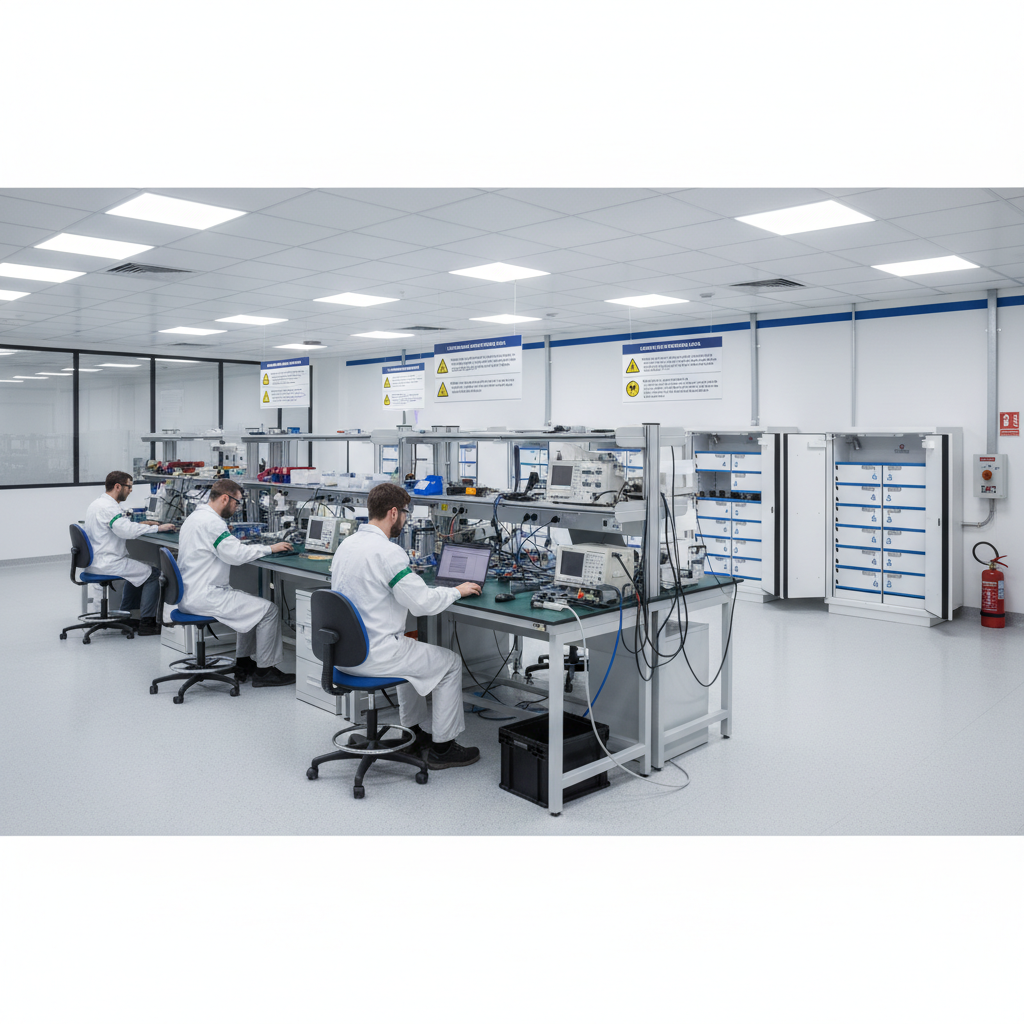

• R&D and laboratories (test batteries, separation by project or risk)

Key benefits

• 90 minutes fire resistance (outside → inside) (EN 14470‑1 & EN 1363‑1; tested 105 min)
• EI 180 min Type A1 fire-stop (inside → outside) (NF EN 13501‑2)
• FM6050 tested and approved
• 10 lockable compartments to separate batteries and reduce propagation risk
• 2 automatic fire extinguishers (EX100LI) triggered at 79°C
• Self-closing doors with thermo-expanding seals
• Ø100 mm ventilation outlet ready for connection (forced ventilation strongly recommended)
• Type E / 220V socket in each compartment for organised charging (as per configuration)
• Delivery available in the Netherlands and Belgium, and across Europe via SALESBRIDGES

Compliance & safety standards

• EN 14470‑1 & EN 1363‑1 (fire resistance outside → inside)
• NF EN 13501‑2 (EI 180) (fire-stop inside → outside)
• FM6050 (tested/approved)
• EU Regulation 2023/1542 Article 42‑4
• EN 16121+A1 Level 2 (80,000 cycles durability)
• ISO 3864 / ISO 7010 pictograms + Directive 92/58/EEC

Construction & included equipment

• Triple‑walled steel construction with double thermal insulation
• Thermal insulation panels to reduce thermal bridges
• Melamine interior panels
• Perforated shelves, 50 kg load capacity
• 2× removable containment sumps (2× B148)
• Ventilation ducts with hot‑melt isolation system
• Earthing point (grounding)

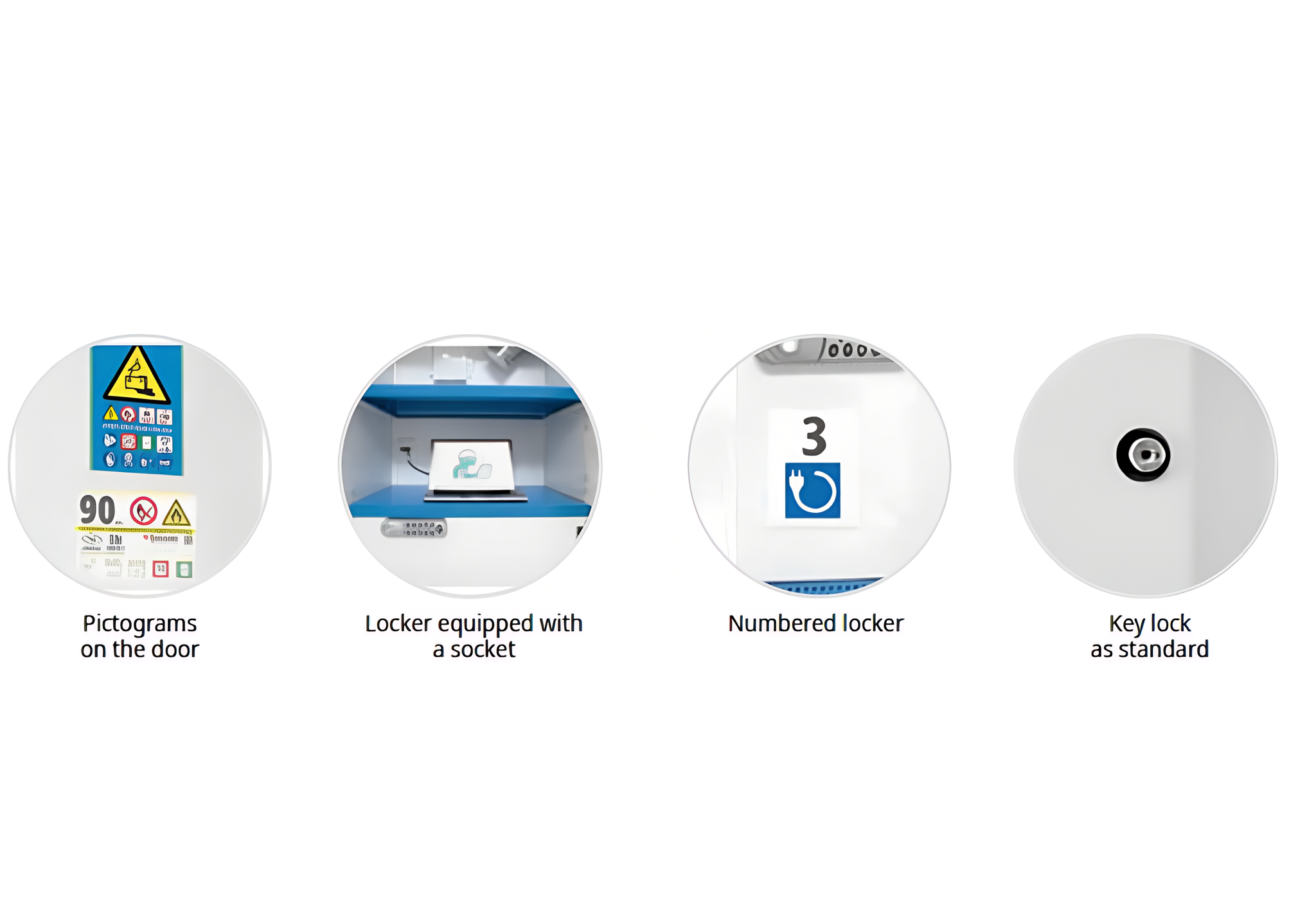

• 1 socket per locker

Locking options (choose the right version)

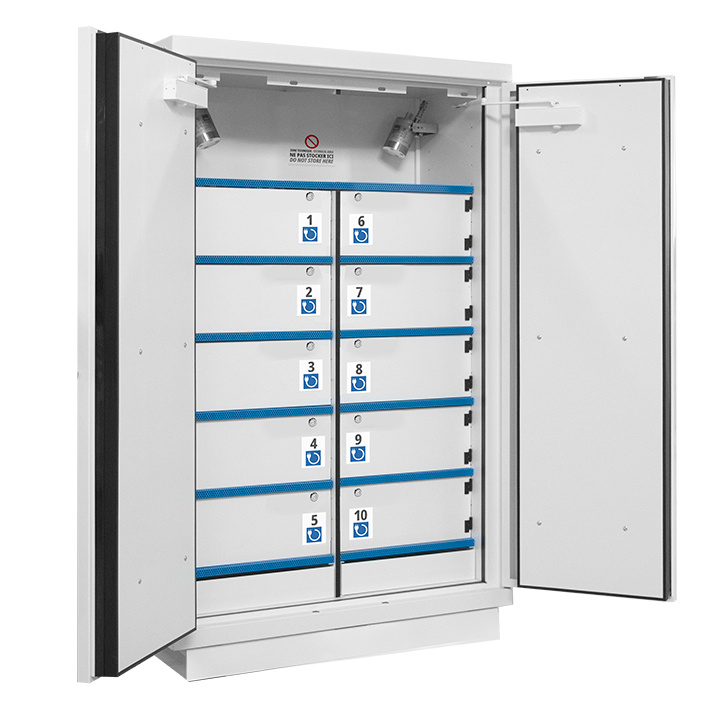

• 795+LI2AC10 / 795+NLI2AC10: compartments with key lock

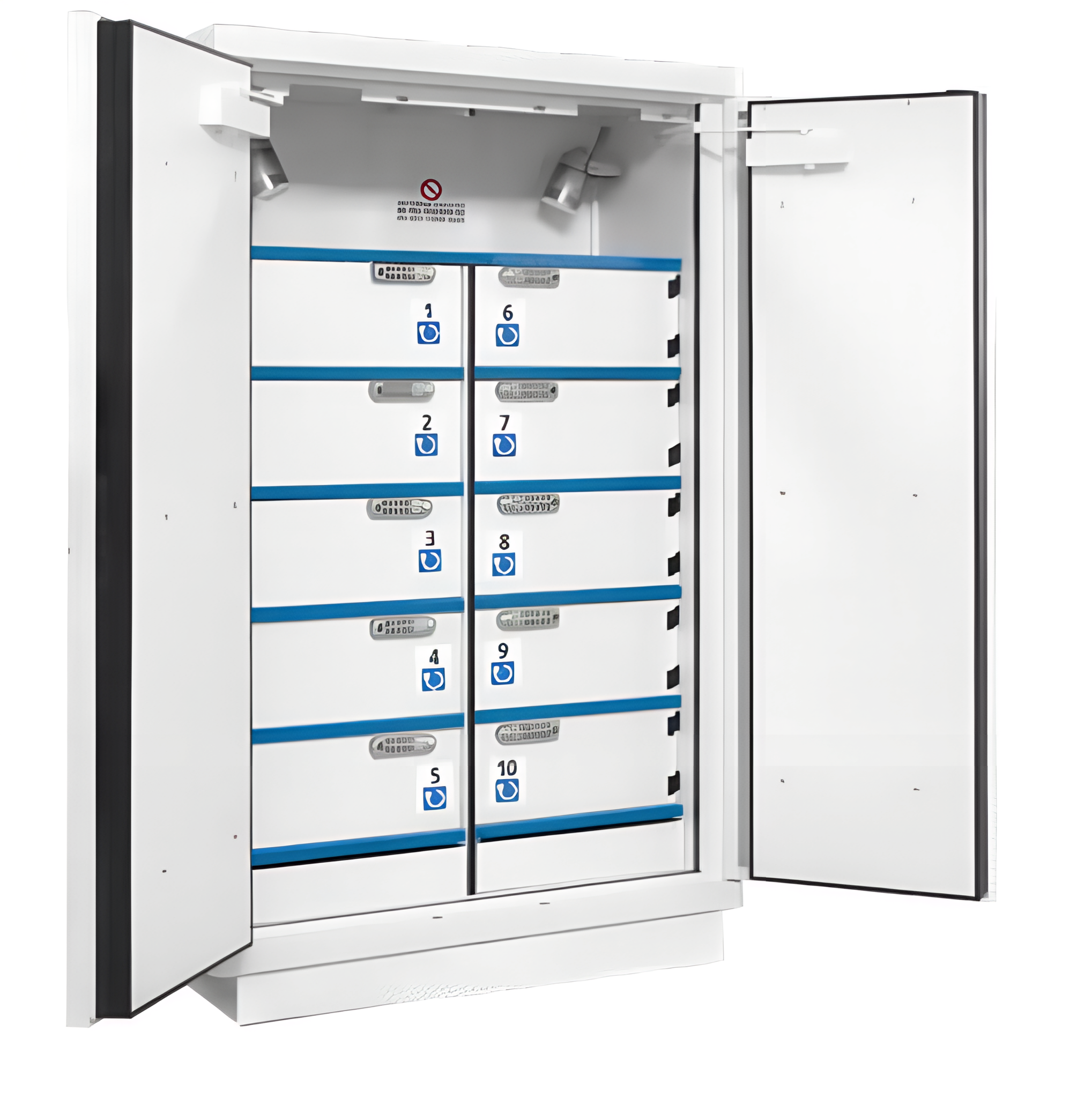

• 795+LI2AC10S / 795+NLI2AC10S: compartments with digital code lock (SERCODE) + security key

Recommended options (add-ons)

• CDV-A ventilation box
• KRC connection kit
• ALARMWI connected smoke detector (Wi‑Fi alerts)
• SED Wi‑Fi alarm + data logger
• ONDULI 4‑socket safety UPS/inverter (230V)

Technical specifications (2‑door, 10 compartments)

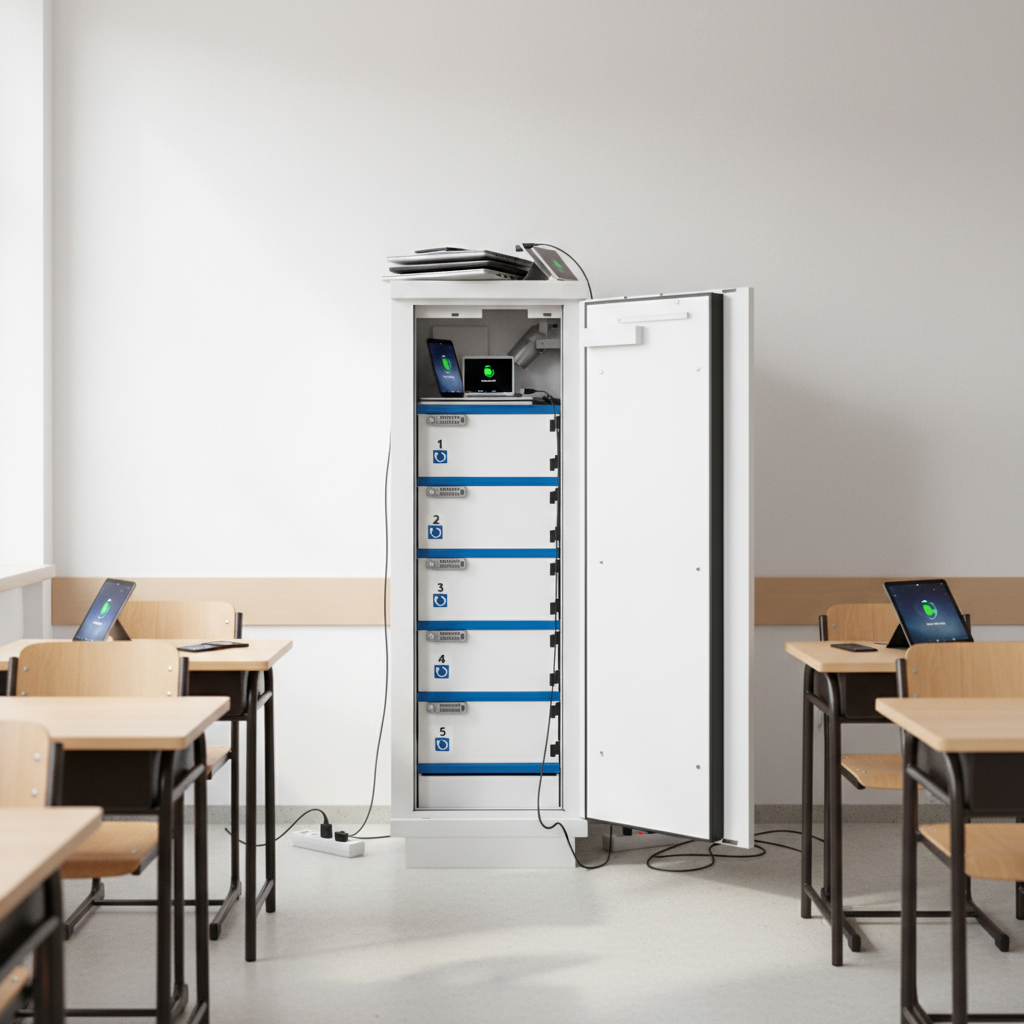

Also available: a space‑saving 1‑door / 5‑compartment version and other sizes/configurations upon request.
