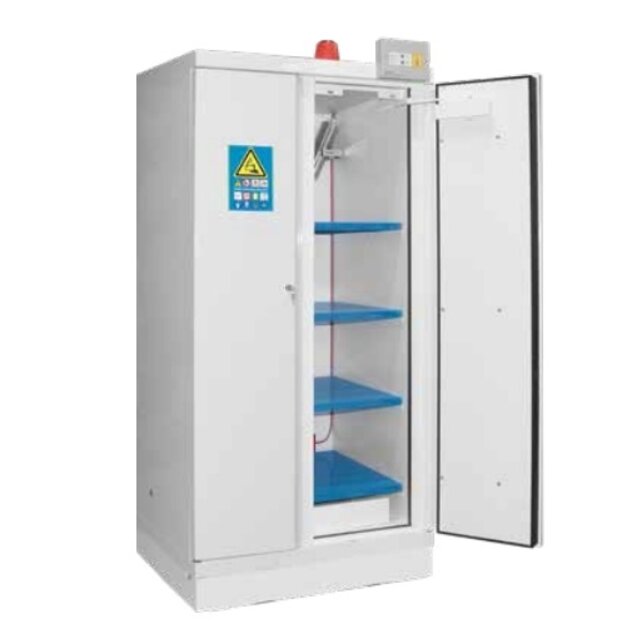

90-Minute Fire Safety Cabinet for Lithium-Ion Batteries 2050 x 905 x 903 mm – 4 Shelves & Automatic Fire Extinguisher

90-Minute Fire Safety Cabinet for Lithium-Ion Batteries

Professional fire-safe storage for lithium-ion batteries

This 90-minute fire safety cabinet for lithium-ion batteries is designed for professional storage of lithium batteries and flammable materials. It has been tested for 105 minutes of fire resistance from outside to inside and is approved for 90 minutes, in accordance with EN 14470-1 and EN 1363-1.

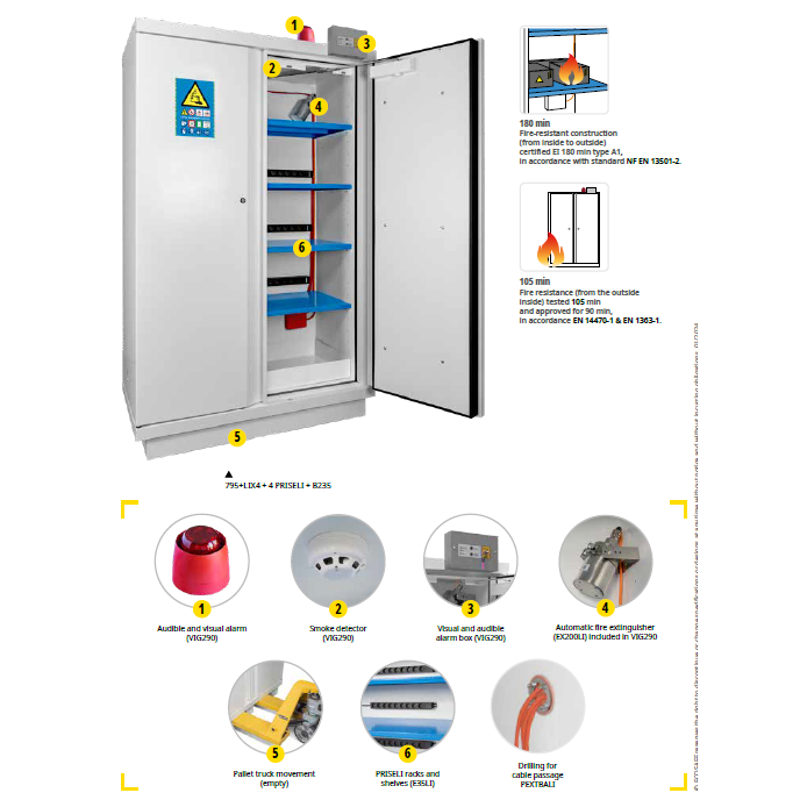

The cabinet combines double-wall steel construction, thermal insulation panels and thermo-expanding door seals to reduce the risk of fire and heat propagation. It is supplied with four perforated shelves and an automatic fire extinguisher activated by a thermal bulb at 79°C.

Key benefits

• Approved 90-minute fire resistance in accordance with EN 14470-1 and EN 1363-1
• Proven 105-minute fire resistance tested to the ISO 834 fire curve
• Suitable for storing lithium-ion batteries and flammable materials
• Double-wall construction in 12/10 sheet steel
• White RAL 9010 epoxy exterior and white RAL 9010 melamine interior
• Four perforated shelves, each with a 100 kg load capacity
• Two swing doors with automatic closing and key lock
• Thermo-expanding door seals for enhanced heat protection
• 100 mm ventilation outlet for possible ventilation connection
• Earthing point included

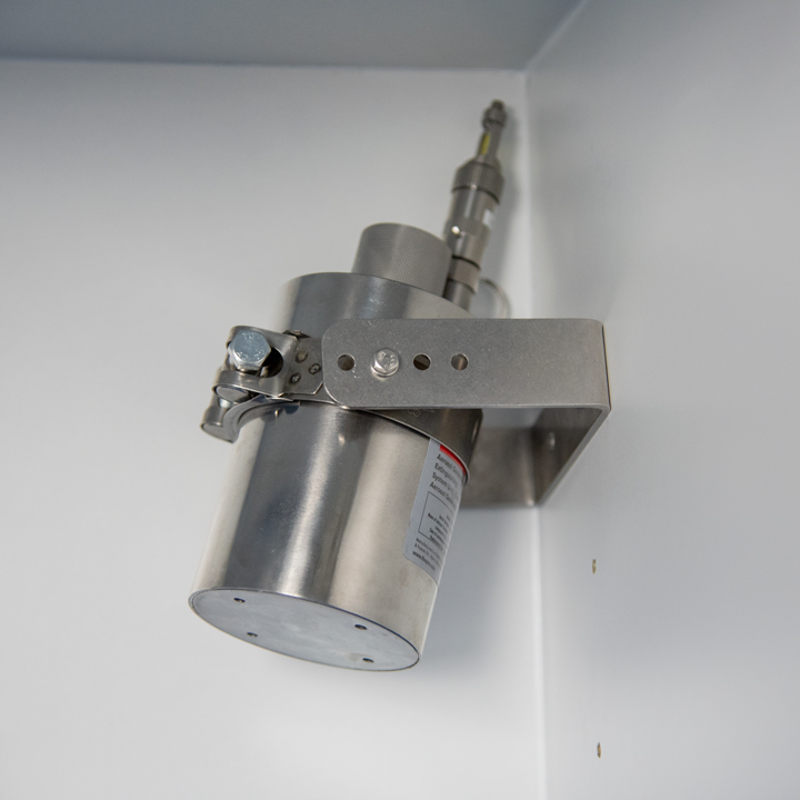

• Automatic EX500LI fire extinguisher with 79°C thermal activation
• Manufactured in France

Compliance and standards

This lithium battery storage cabinet supports compliance with key European safety requirements:

• EU Regulation 2023/1542, Article 42(4)
• EN 14470-1
• EN 1363-1
• ISO 834 fire curve
• EN 16121+A1, Level 2: tested for 80,000 opening/closing cycles and manufacturer-defined shelf loading
• ISO 3864 and ISO 7010 warning labels
• European Directive 92/58/EEC

Technical specifications

Included in the online price

• 1 x two-door 90-minute lithium-ion battery safety cabinet

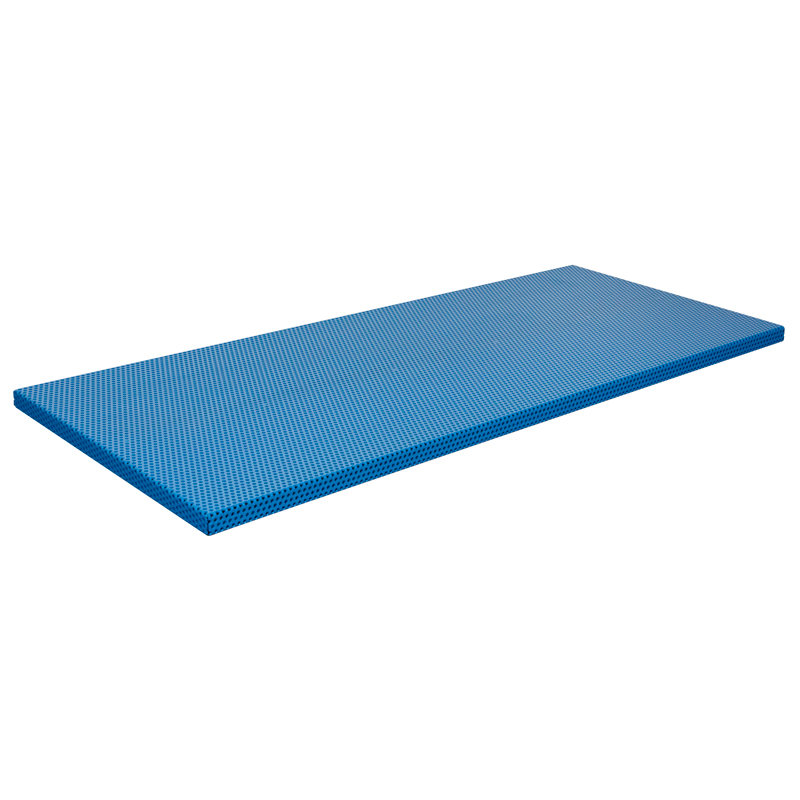

• 4 x E1LI perforated shelves
• 1 x EX500LI automatic fire extinguisher

Recommended optional accessories

Configure the cabinet according to your battery storage or charging application:

• 40-litre containment sump with 30-minute fire resistance
• Perforated containment sump cover plate with 30-minute fire resistance
• Activated carbon filtration box for organic and corrosive vapours, 30-minute fire resistance

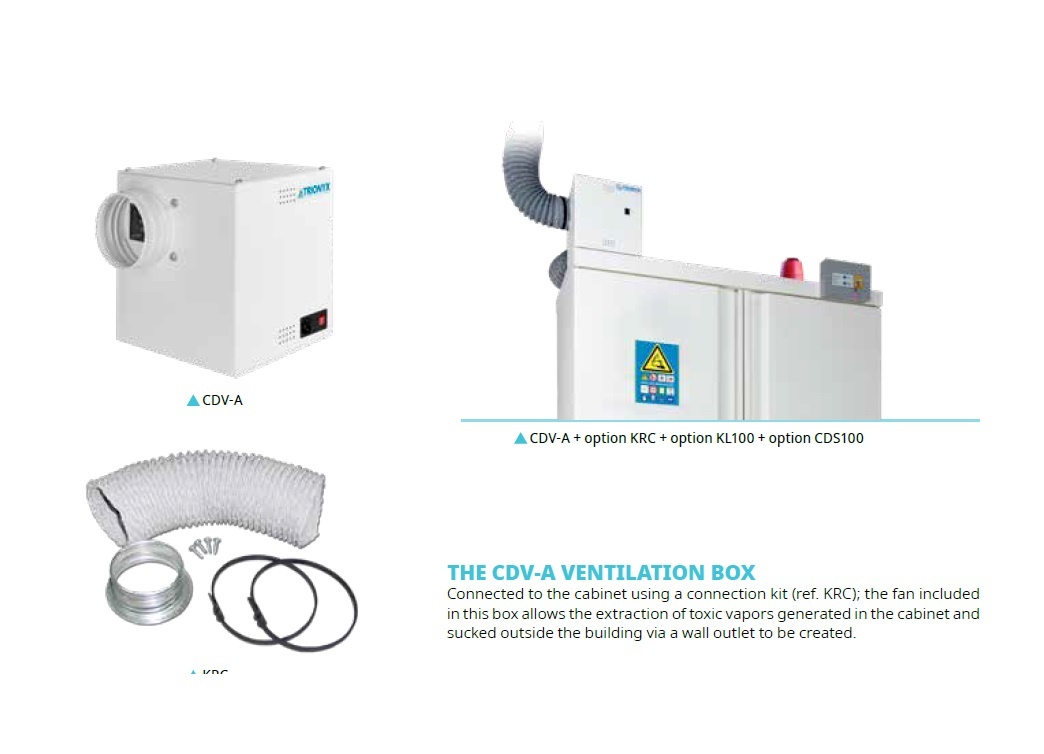

• Ventilation box for connection to an external outlet
• Rack with 9 electrical outlets for battery charging
• Visual and audible alarm
• Control box and automatic smoke detector
• Fire extinguisher, cable duct and fire-resistant cable entry
• Connection kit

Configuration recommendations

• Simple battery storage: perforated shelves and a containment sump.
• Battery storage and charging: perforated shelves, containment sump and electrical outlet rack.
• Storage with advanced protection: perforated shelves, containment sump and an optional extinguisher or full safety set.
• Charging with advanced protection: perforated shelves, containment sump, outlet rack and advanced protection system.

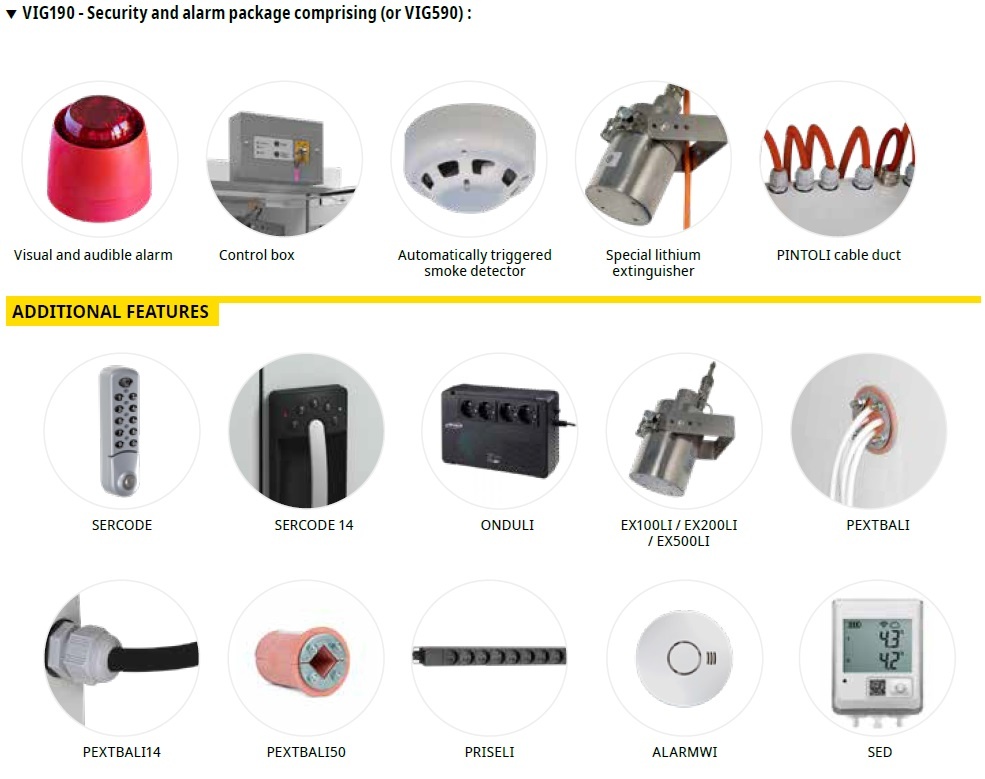

An advanced protection system can include a visual and audible alarm, control box, automatic smoke detector, fire extinguisher and fire-resistant cable pass-through.

Important safety notice

In the event of a fire, the cabinet must not be moved. Only the fire brigade may move or handle the cabinet.
