CDV-A Ventilation Box for Safety Cabinets (240 m³/h, Ø100 mm) – with KRC connection kit
Product description

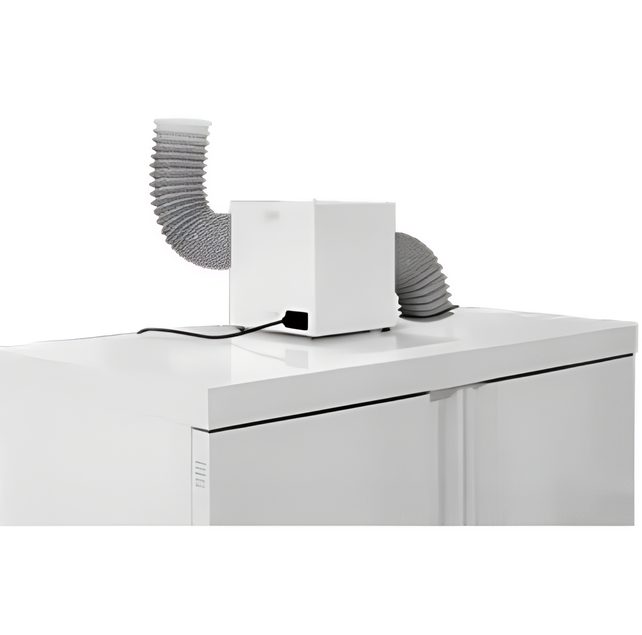

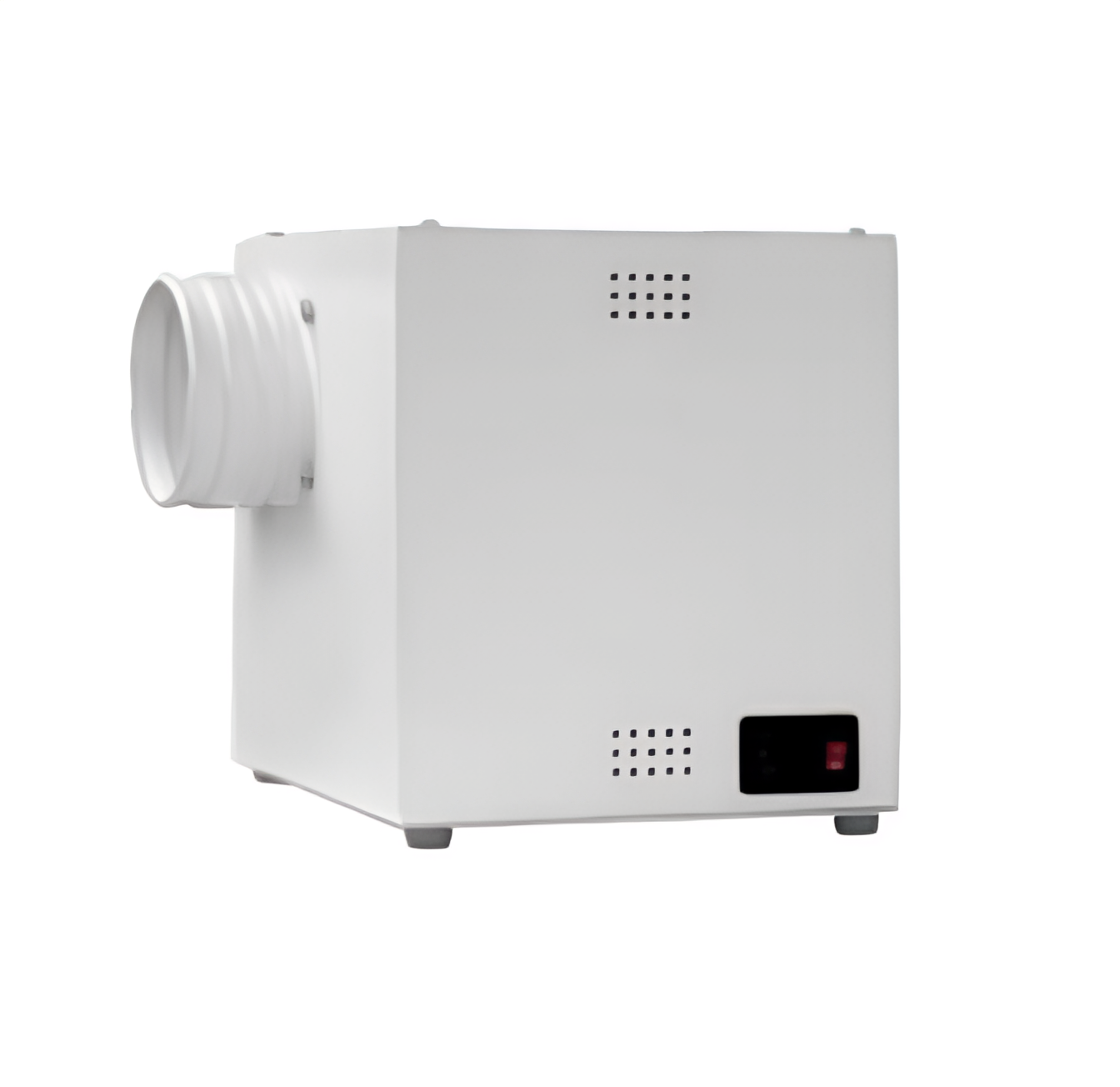

The CDV-A ventilation box is a durable extraction fan unit for hazardous goods storage cabinets and safety cabinets, designed to remove toxic vapors generated inside the cabinet. With a clean, easy installation and Ø100 mm duct connections, it is a practical solution for laboratories, workshops, and industrial storage areas.
Typical applications
- Active ventilation/extraction for hazardous storage cabinets
- Reducing vapor and odor build-up inside closed cabinets
- Supporting safer working conditions in labs and industrial facilities
Key benefits
- Fits many cabinet types with simple, aesthetic mounting
- Easy adaptation between cabinet opening and ventilation opening
- Delivered with Ø100 mm flexible hose connection
- On/off switch with indicator light for quick power status check
- Steel housing with white epoxy coating (RAL 9010)
Compliance
- Fan complies with ISO 3744
- CE compliant
Accessories

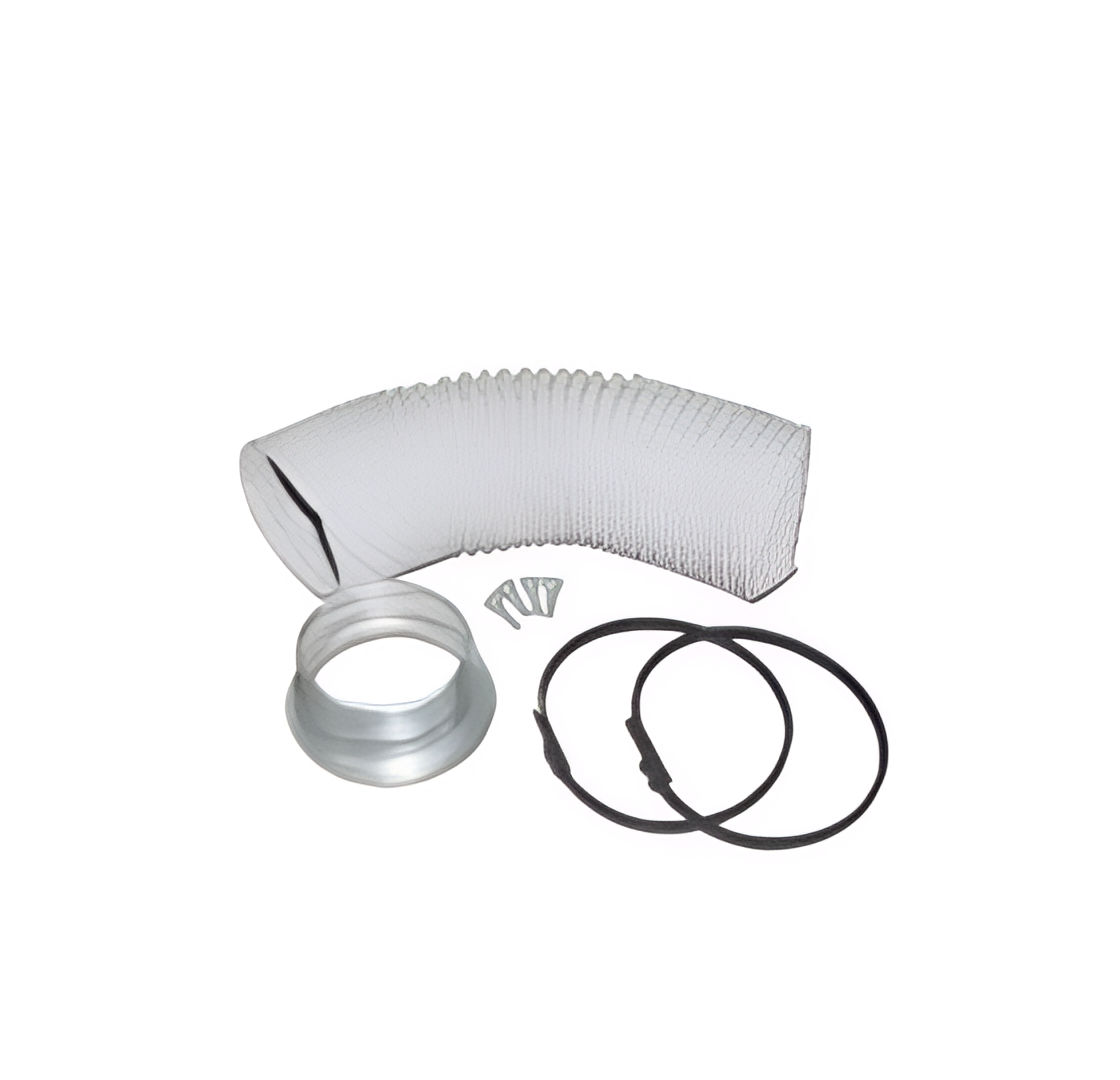

KRC Connection Kit – for easy connection between the box and a safety cabinet:
- CHJ: Ø100 mm steel connection sleeve (to mount on cabinet ventilation outlet)
- KL100: Ø100 mm flexible hose (per meter)
- CDS100: 2× Ø100 mm clamps
Technical specifications
| Specification | Value |
|---|---|
| Product | Ventilation box (steel) |
| Model / P/N | CDV-A |
| Construction | 12/10 steel, epoxy coated RAL 9010 |
| Power supply | 220/240 V, 50 Hz |
| Power | 62 W |
| Current | 0.28 A |
| Noise level | 57 dB(A) (excluding airflow) |
| Airflow | 240 m³/h |
| Inlet / outlet | Ø 100 mm / Ø 100 mm |
| Dimensions (H × W × D) | 235 × 260 × 245 mm |
| Weight | 8 kg |
| Control | On/off switch with indicator light |
Delivery
Delivery available in the Netherlands and Belgium, with shipping across Europe (on request, depending on quantities and destination).
For RFQ requests or questions, contact us at [email protected] or call +31 6 52883848. We’re happy to help!
