Stationary lift table HW1002– 1000 kg capacity – 1600 × 1000 mm
Stationary lift table SBHW1002 with 1000 kg capacity and 1600 × 1000 mm platform. Low-noise hydraulic system, single scissor design and EN1570-1 compliant. Ideal for safe, ergonomic lifting in workshops, warehouses and production areas.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

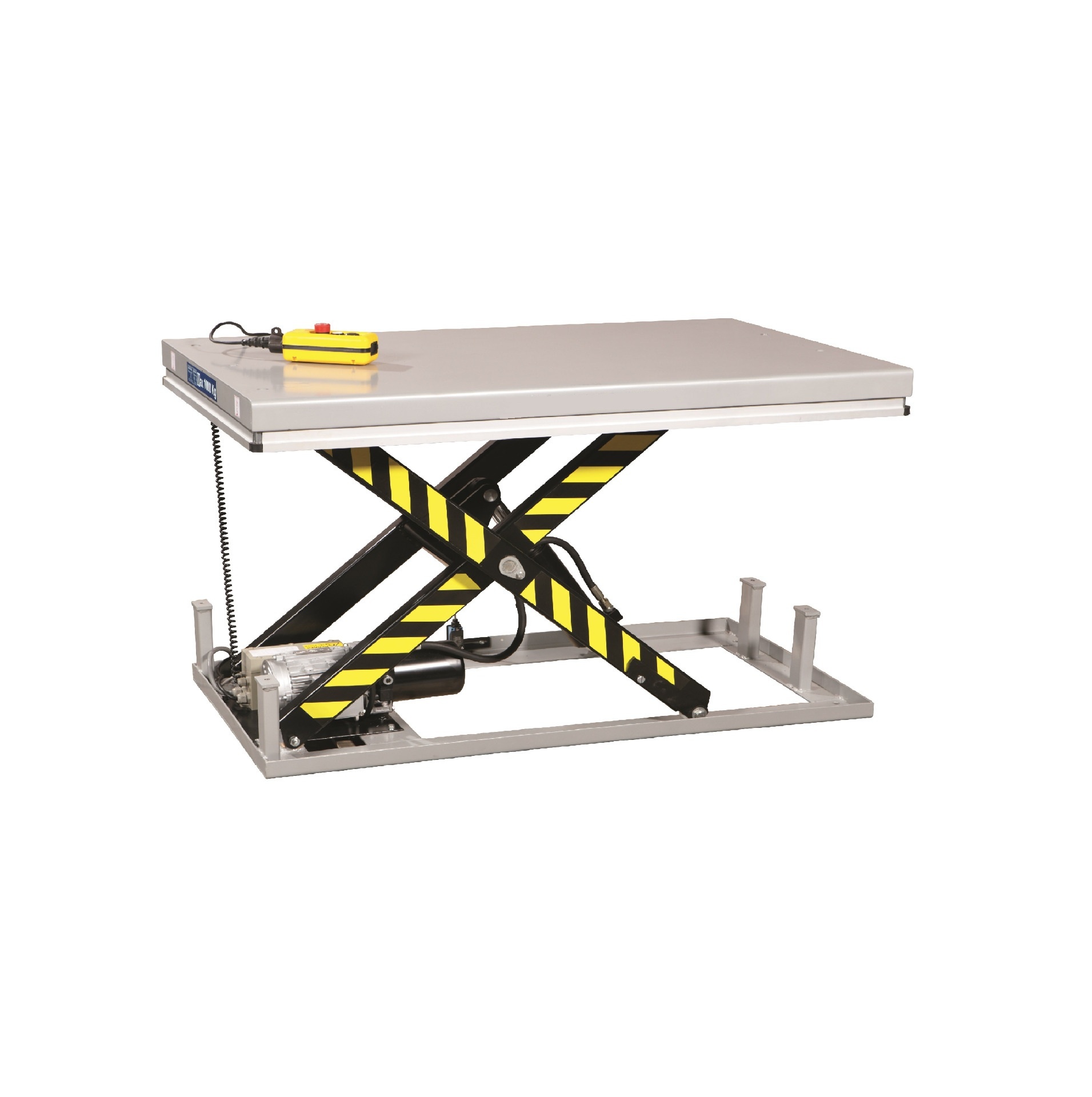

Stationary lift table HW1002– 1000 kg capacity – 1600 × 1000 mm
The Salesbridges SBHW1002 lift table is a robust and versatile stationary lifting solution designed for ergonomic working and efficient material handling in workshops, warehouses, production environments, and assembly stations. With a load capacity of 1000 kg and a large platform size of 1600 × 1000 mm, this lift table is ideal for handling bulky or wide loads while positioning goods at a safe and comfortable working height.
The lift table features a single scissor construction with maintenance-free pivot bushings and a large safety clearance between the scissor arms, minimizing wear and significantly reducing the risk of injuries during operation. A lift cylinder with internal drainage, combined with a safety valve for hose-burst protection, ensures safe and reliable lifting under daily industrial use. The low-noise hydraulic power pack with a built-in overload valve provides smooth and controlled lifting and lowering movements.
For precise height control, the SBHW1002 is equipped with a movable limit switch to adjust the maximum lifting height. Safe installation and handling are supported by four end-stops with integrated lifting loops, allowing the lift table to be safely lifted and positioned, for example when installing into a pit. Powered by a 3-phase 380V / 16A supply, this lift table delivers consistent performance in demanding professional applications. Fully compliant with EN1570-1, the SBHW1002 meets European safety standards for industrial lifting equipment.
Key Benefits
-
Large 1600 × 1000 mm platform for bulky and wide loads
-
High load capacity of 1000 kg for industrial applications
-
Ergonomic lifting to improve safety and productivity
-
Maintenance-free pivot bushings for long service life
-
Integrated safety features including hose-burst protection and overload valve
-
Low-noise hydraulic system for comfortable working environments
-
EN1570-1 compliant for professional and industrial use
Typical Applications
-
Assembly and production lines
-
Packing and inspection workstations
-
Warehouse order picking and material handling
-
Workshop and maintenance operations
-
Installation in pits or fixed workstations
Technical Specifications
| Specification | Value |
|---|---|
| Model | SBHW1002 |
| Type | Stationary lift table |
| Scissor type | Single scissor |
| Power supply | 3-phase, 380V / 16A |
| Load capacity | 1000 kg |
| Platform size (L × W) | 1600 × 1000 mm |
| Base frame size (L × W) | 1266 × 680 mm |
| Lifting height | 205 – 990 mm |
| Stroke length | 785 mm |
| Lifting time to max height | 15 – 20 seconds |
| Lift motor | 1.1 kW, 380V / 50Hz |
| Weight | 186 kg |
| Safety features | Hose-burst valve, overload valve, safety clearance |
| Compliance | EN1570-1 |
For pricing, availability, or larger quantities, please contact [email protected] or call +31 6 52883848 for an RFQ.
Upgrade Options:

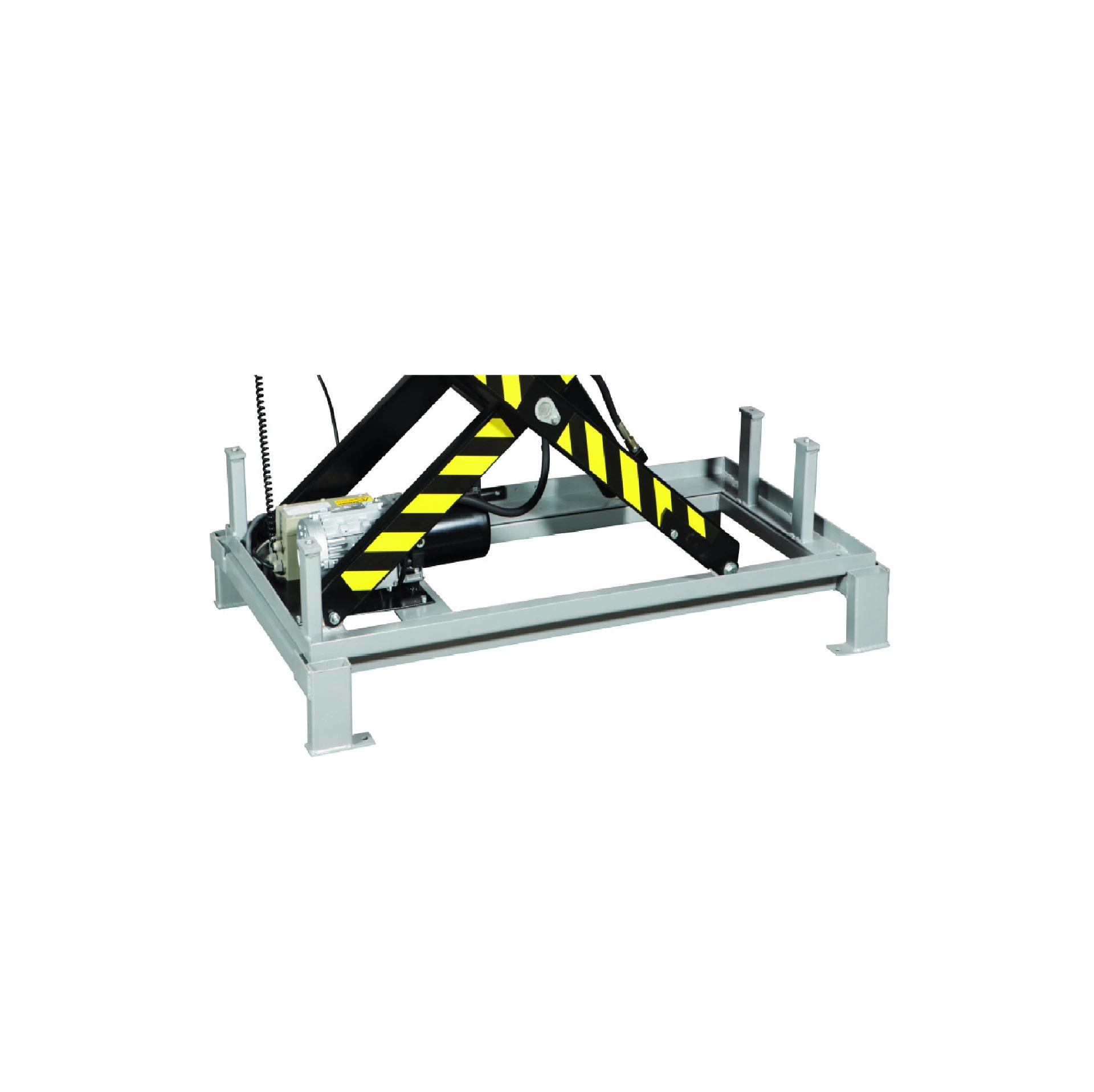

1. HW-ST Pallet Truck Stand
To increase flexibility and mobility, the HW-ST pallet truck stand is an ideal upgrade for selected stationary lift tables. By mounting the lift table on this pallet truck stand, the table can be easily moved with a standard pallet truck, eliminating the need for permanent floor installation or fixed positioning.
The HW-ST pallet truck stand is designed to fit HW1001, HW1002, and HD1000 lift tables and offers a load capacity of 1000 kg, making it suitable for demanding industrial and warehouse environments. This upgrade allows users to relocate the lift table quickly between workstations, improving workflow efficiency and space utilization.
The pallet truck stand is particularly useful in dynamic working environments where lift tables need to be shared between multiple departments or temporarily positioned for specific tasks such as assembly, packing, inspection, or maintenance.

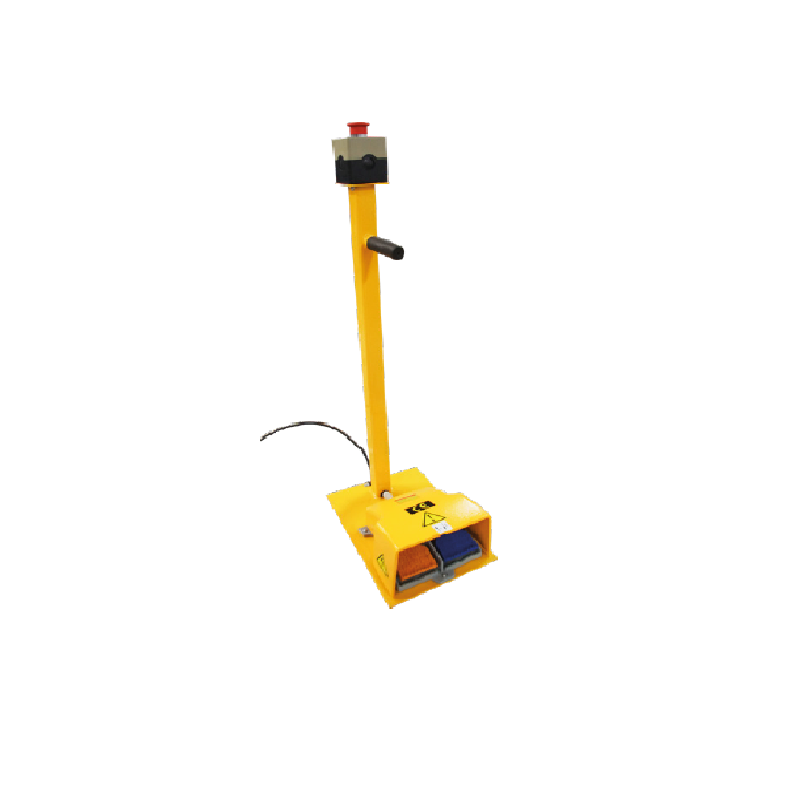

2. HWF-100 Foot control
The HWF-100 foot control is a practical and safety-focused accessory designed to improve the operation of stationary lift tables. By allowing hands-free control of lifting and lowering functions, this foot control enhances ergonomics, safety, and efficiency in industrial and professional working environments.
Equipped with an integrated emergency stop, the HWF-100 provides an additional layer of safety during daily operation. The foot control is compatible with all electronically operated stationary lift tables, making it a versatile upgrade for workshops, warehouses, production areas, and assembly stations.
With a 5-meter connection cable, the HWF-100 offers flexible positioning around the lift table, allowing operators to maintain a safe distance while retaining full control of the lifting process. Its robust construction ensures reliable performance under intensive use.

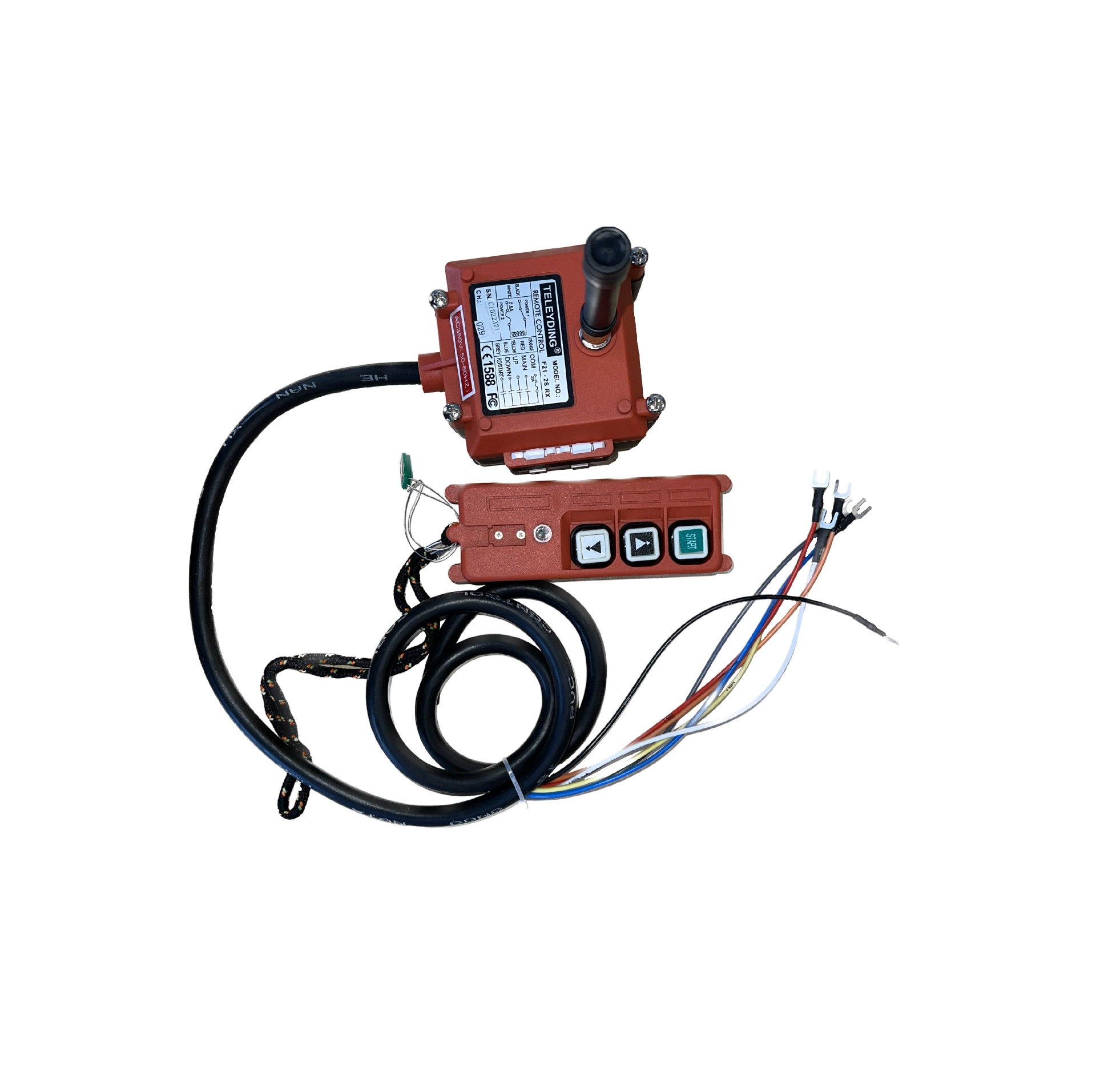

2. RHW100X Remote Control – For 380V Stationary Lift Tables
The RHW100X remote control is a practical and efficient control accessory designed for 380V stationary lift tables. This remote control allows operators to control lifting and lowering functions from a safe and convenient distance, improving ergonomics, workflow efficiency, and overall operational safety in industrial environments.
The RHW100X is compatible with all 380V electronically operated stationary lift tables, making it a versatile upgrade for workshops, warehouses, production facilities, and assembly lines. Remote operation reduces the need for the operator to remain close to moving components, helping to minimize risk during lifting operations.
Built for professional use, the RHW100X features a robust industrial design suitable for daily operation in demanding environments. It is ideal for applications where precise control, operator safety, and flexible positioning are essential.
For pricing, availability, or larger quantities, please contact [email protected] or call +31 6 52883848 for an RFQ.
| Brand | Salesbridges |
| Article code | SBHW1002 |
| SKU | SBHW1002 |
| EAN | 9505392155648 |
