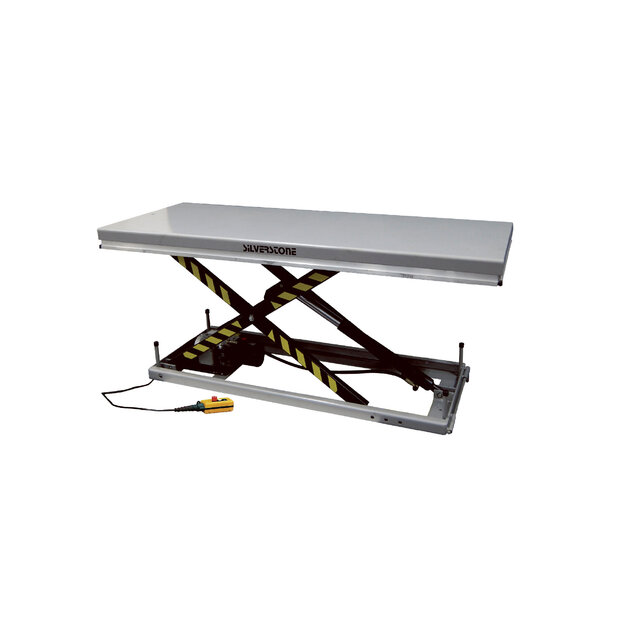

Stationary lift table HW500L – 500 kg capacity – 2000 × 800 mm – Low-noise
Stationary lift table HW500L with 500 kg capacity and 2000 × 800 mm platform. Low-noise hydraulic system, single scissor design and EN1570-1 compliant. Ideal for ergonomic handling of long loads in workshops and warehouses.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Stationary lift table HW500L – 500 kg capacity – 2000 × 800 mm – Low-noise
The Salesbridges SBHTHW500L lift table is a heavy-duty and reliable lifting solution designed for ergonomic working and efficient handling of long or bulky loads in workshops, warehouses, production lines, and assembly areas. With a load capacity of 500 kg and a large platform size of 2000 × 800 mm, this stationary lift table is ideally suited for positioning elongated materials and workpieces at a comfortable working height.
This lift table features a single scissor construction with maintenance-free pivot bushings and a large safety clearance between the scissor arms, minimizing wear and reducing the risk of injuries during operation. A lift cylinder with internal drainage and a safety valve for hose-burst protection ensure safe and reliable lifting under daily use. The low-noise hydraulic power pack with a built-in overload valve provides smooth lifting and lowering, even in noise-sensitive working environments.
The SBHTHW500L is equipped with a movable limit switch to precisely adjust the maximum lifting height. For safe installation and handling, the table includes four end-stops with integrated lifting loops, allowing the lift table to be safely lifted and positioned, for example when installing into a pit. Powered by a 3-phase 380V / 16A supply, this lift table delivers consistent performance in professional industrial applications. Fully compliant with EN1570-1, it meets European safety standards for industrial lifting equipment.
Key Benefits
-
Large platform for handling long and bulky materials
-
Ergonomic lifting to reduce physical strain and improve productivity
-
Maintenance-free pivot bushings for long service life
-
Integrated safety features including hose-burst protection and overload valve
-
Low-noise hydraulic power pack for comfortable operation
-
Adjustable lifting height via movable limit switch
-
EN1570-1 compliant for professional and industrial use
Typical Applications
-
Handling and positioning of long workpieces
-
Assembly and production lines
-
Packing and inspection workstations
-
Warehouse order picking and material handling
-
Installation in pits or fixed working stations
Technical Specifications
| Specification | Value |
|---|---|
| Model | SBHTHW500L |
| Type | Stationary lift table |
| Scissor type | Single scissor |
| Load capacity | 500 kg |
| Platform size (L × W) | 2000 × 800 mm |
| Base frame size (L × W) | 1650 × 660 mm |
| Lifting height | 200 – 1000 mm |
| Stroke length | 800 mm |
| Lifting time to max height | 15 – 20 seconds |
| Lift motor | 1.1 kW, 380V / 50Hz |
| Power supply | 3-phase, 380V / 16A |
| Weight | 193 kg |
| Safety features | Hose-burst valve, overload valve, safety clearance |
| Compliance | EN1570-1 |
For pricing, availability, or larger quantities, please contact [email protected] or call +31 6 52883848 for an RFQ.
| Brand | Salesbridges |
| Article code | SBHTHW500L |
| SKU | SBHTHW500L |
| EAN | 9501836959841 |
