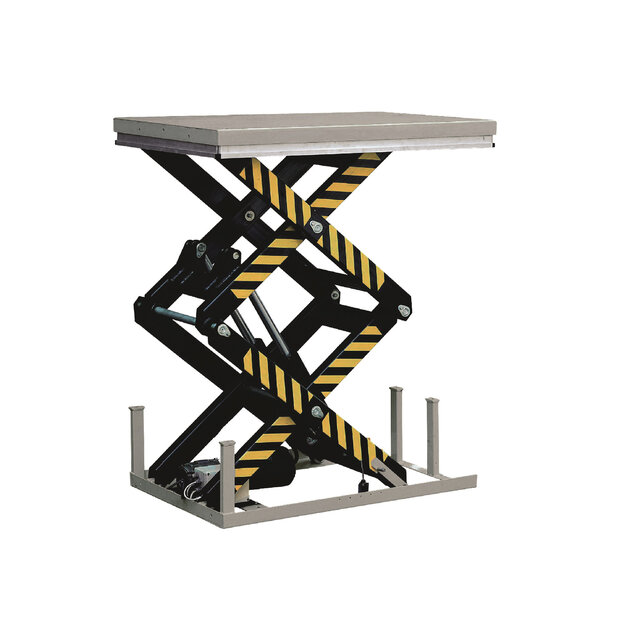

SalesBridges Stationary Double Scissor Lift Table 4000 kg – Lifting Height 400–2050 mm – Platform 1700 × 1200 mm
Stationary Double Scissor Lift Table 4000 kg – Lifting Height 400–2050 mm – Platform 1700 × 1200 mm
€3.959,00 Incl. tax
SalesBridges

Stationary Double Scissor Lift Table 4000 kg – Lifting Height 400–2050 mm – Platform 1700 × 1200 mm

EUR 3.959,00 Excl. tax
EUR 4.790,39 Incl. tax

The Salesbridges lifting table SBHD4000 supports you when lifting heavy to extra heavy pallets or half-timbered boxes in the warehouse or on production lines. With the double scissors, it achieves a greater lifting height than other models.

In stock
1-2 weeks
Quantity
- +
Product description

Stationary scissor lift table – SBHD4000

This stationary lift table positions goods at a fixed workstation. Its lifting movement helps match material height to assembly, processing and transfer tasks.

The stated load capacity is 4000 kg. The technical table identifies the configuration, dimensions and operating details for this model.

Features and benefits

  • Maximum load capacity: 4000 kg.
  • Platform (L × W): 1700 × 1200 mm.
  • Lift height min.–max.: 400 – 2050 mm.

Technical specifications

SKUSBHD4000
ConfigurationStationary scissor lift table
Maximum load capacity4000 kg
Platform (L × W)1700 × 1200 mm
Base frame / plate (L × W)1600 × 930 mm
Lift height min.–max.400 – 2050 mm
Lift stroke1650 mm
Net weight520 kg
Time to maximum lift height30–35 seconds
Lifting motor380V / 50Hz, 1.5 kW
Power supply3-phase, 380V / 16A
Pivot bushingsMaintenance-free
Safety featuresSafety valve, hose-burst protection, clearance, limit switch
Standard stated in product specificationEN1570-1
Assembly / installationBolt to the floor
Factory warranty stated in product data1-year factory warranty
ModelSBHD4000

Applications

  • Material supply in production and assembly
  • Positioning at packing and processing stations
  • Transferring goods between suitable working heights

Configuration and use

Match installation, floor fixing, platform size and lift height to the location. Check the power supply and load distribution. Confirm custom configurations against the quotation and drawing. Use as a personnel lift is not included in this description.

Options and accessories

Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.

Delivery in the Netherlands and across Europe

Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.

Request a quotation

Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.

Product information
Brand SalesBridges
Article code SBHD4000
SKU SBHD4000
EAN 9502349857914
