Permanent Lifting Magnet QPM – Neodymium – 0.1-1t – Safety Factor 3.5

Create your own review

Price on request

Excl. Shipping costs

REMA QPM Neodymium permanent lifting magnets for flat and cylindrical ferromagnetic materials. Safety factor 3.5. High-quality NdFeB magnet material. No residual magnetism. V-groove for cylinders. Compact robust construction. CE marked. EN 13155, EN 12100

In stock

3-4 days

Quantity

- +

Price on request

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

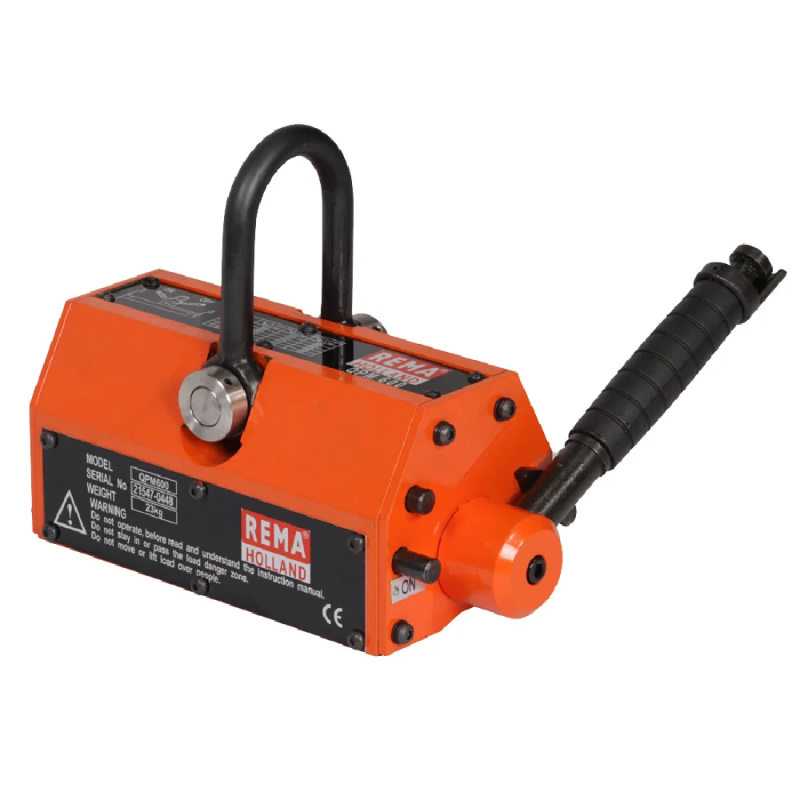

QPM Permanent Lifting Magnets – Neodymium – Safety Factor 3.5

REMA QPM Neodymium permanent lifting magnets are suitable for lifting and transporting flat and cylindrical ferromagnetic materials ("magnetically supported as steel").

Properties

Safety factor 3.5
High-quality Neodymium magnet material (NdFeB)
Virtually no residual magnetism after decoupling prevents accidents
Simple and light lever operation with safety button
V-groove makes it possible to hoist cylindrical workpieces next to flat surfaces
Compact and robust construction with a large lifting eye

Type Selection
Choose the type of magnet to match the load to be lifted. Important features are the thickness, weight, size of the magnetic surface, material specification, surface structure, air gap and symmetrical load.

Application

REMA QPM permanent lifting magnets can be used as grabs in lifting and hoisting applications for horizontal and vertical materials handling in stores, steel construction manufacturing plants, machine and assembly bays, etc.

IMPORTANT Safety Instructions

Never exceed the safe workload
Full lifting force only achieved on processed, smooth, clean St 37k steel (25mm thick)
Only one plate lifted at a time when lifting thin sheets from a stack
Note the "peeling action" when lifting thin plates
Never let a lifting magnet come down hard on the ground
It is forbidden to be under the load of a lifting magnet
Never lift loads with loose objects
Do not lift uneven and porous workpieces
Surface must be dry, clean, oil and grease free
Prevent shock loads during lifting
Check control knob, guide and safety pin before use
Annual inspection by authorized person or body

Standards & Marking

Marking: CE-marked
Standard: EN 13155, EN 12100
Safety factor: 3.5

Technical Specifications

Specification	QPM-100	QPM-300	QPM-600	QPM-1000
Diameter (mm)	70	90	110	120
WLL (ton)	0.1	0.3	0.6	1
Material thickness (mm)	20	30	40	60
Max load size (mm)	800x600	1500x1500	2000x1500	2000x1500
Length handle (mm)	84	154	196	264
WLL round materials (t)	0.03	0.1	0.2	0.3
Weight (kg)	2.6	9.6	23	54
