Permanent Lifting Magnet PFR – Neodymium – 0.125-2t – Safety Factor 3

Price on request

REMA PFR Neodymium permanent lifting magnets for round and flat workpieces. Safety factor 3. Very high lifting capacity. Light mechanical operation with safety lever. Large lifting eye. Compact design. Low own weight. Robust construction. EN 12100, EN 131

In stock

3-4 days

Quantity

- +

Price on request

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

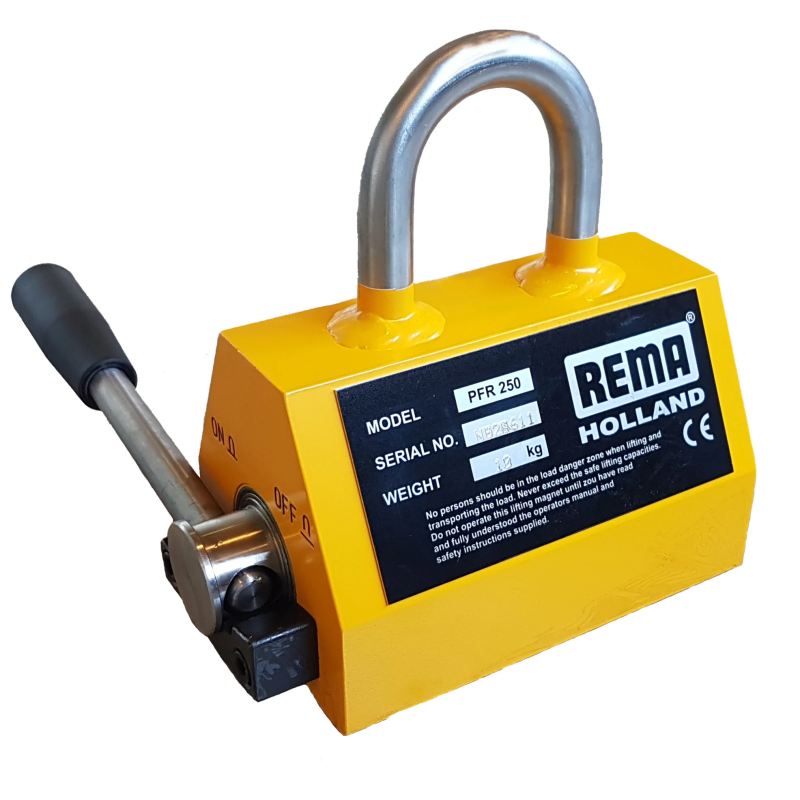

PFR Permanent Lifting Magnets – Neodymium – Safety Factor 3

REMA PFR permanent lifting magnets are manufactured from neodymium magnetic material resulting in very powerful lifting magnets in relation to their own weight and dimensions. REMA PFR permanent lifting magnets are suitable for both round and flat workpieces.

Properties

Safety factor 3
Powerful Neodymium magnet material
Very high lifting capacity
Easy operation
Light mechanical operation with safety lever
Large lifting eye
Compact design
Low own weight
Robust construction of house and magnet

Application

Workshops, warehouses and machine tools such as cutting, milling, grinding and sawing machines, bending machines and lathes.

Standards & Marking

Marking: CE-marked
Standard: EN 12100, EN 13155
Safety factor: 3

Technical Specifications

Specification	PFR-125	PFR-250	PFR-500	PFR-1000	PFR-1500	PFR-2000
WLL (ton)	0.125	0.25	0.5	1	1.5	2
Size (mm)	95x60x110	151x100x168	246x120x168	316x148x216	410x165x253	480x165x251
Material thickness (mm)	25	30	40	60	60	80
Max load size (mm)	1900x500	1750x1000	1800x1500	2450x1500	2450x1500	3250x1500
Diameter range max (mm)	50-100	60-200	65-270	100-300	150-350	100-350
WLL round materials (t)	0.05	0.125	0.25	0.5	0.75	1
Weight (kg)	3	10	19	37	50	85
