SUPPAL Mobile Dispenser for 4 Reels - 500 kg

Salesbridges

SUPPAL Mobile Dispenser for 4 Reels - 500 kg

EUR 2.295,00 Excl. tax

EUR 2.776,95 Incl. tax

SUPPAL mobile dispenser for 4 reels with 500 kg capacity. Robust, adjustable, made in France and supplied with a 5-year warranty. Delivery across Europe.

Backorder

4-5 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

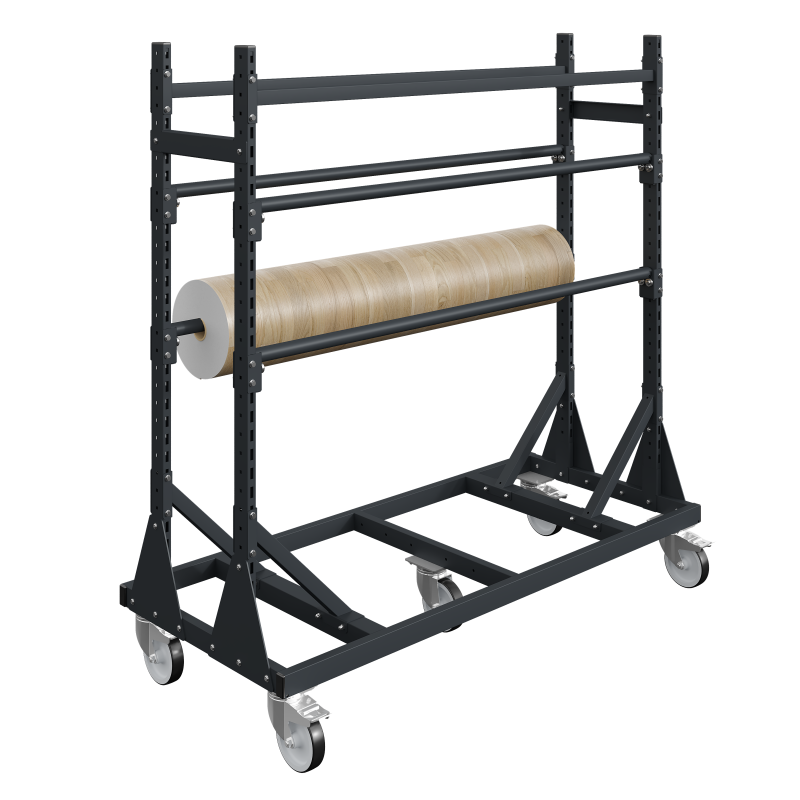

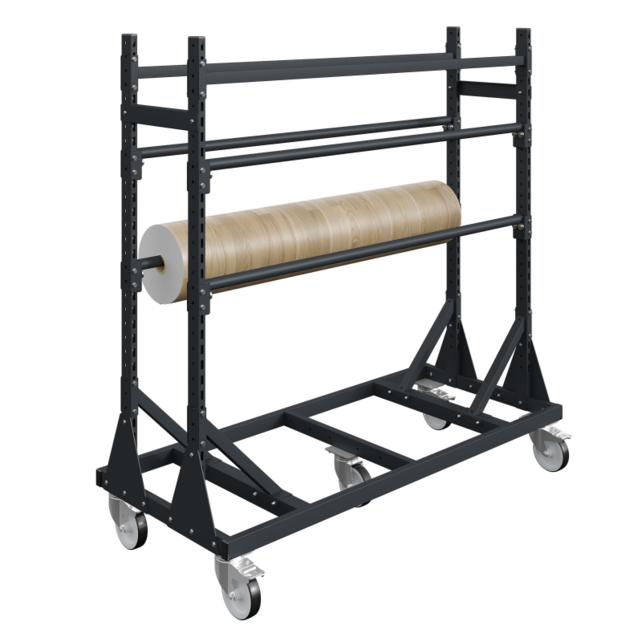

SUPPAL mobile dispenser for 4 reels

The SUPPAL is a robust mobile dispenser for storing and smoothly unwinding up to four material reels. The bearing-mounted support tubes are height-adjustable in 50 mm increments. It is suited to production, packaging, garment, leather and upholstery environments.

Key benefits

Capacity for up to fozur reels
Maximum total load of 500 kg
Accepts reels up to 1540 mm long and 300 mm in diameter
Five 160 mm swivel castors, including four with brakes
Reel support tubes with 40 mm diameter and 2 mm wall thickness
Height adjustment in 50 mm increments
Smooth reel rotation with bearing-mounted tubes
Robust steel construction
Fine-textured epoxy powder coating, oven-cured at 180 °C

Applications

Garment and textile manufacturing
Leather industry and upholstery
Industrial production and assembly
Packaging and protective materials

Technical specifications

Feature	Specification
Product	Mobile dispenser for 4 reels
Reference / SKU	010080421
Maximum load	500 kg
Maximum reel length	1540 mm
Maximum reel diameter	300 mm
Dimensions (W × D × H)	1815 × 780 × 1870 mm
Castors	5 swivel castors, Ø 160 mm; 4 with brakes
Construction	Steel tubes 60 × 30 × 2 mm and 40 × 40 × 2 mm; 2.5 and 4 mm sheet steel
Finish	Fine-textured epoxy powder coating, oven-cured at 180 °C
Origin	France
Warranty	5 years
