MANULOG height-adjustable platform trolley with hand crank (745–1000 mm), 300 kg
MANULOG height-adjustable platform trolley with hand crank (745–1000 mm), 300 kg. 4 hydraulic jacks, reversible top with retaining edges. Made in France, 5-year warranty. Delivery NL/BE & EU.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

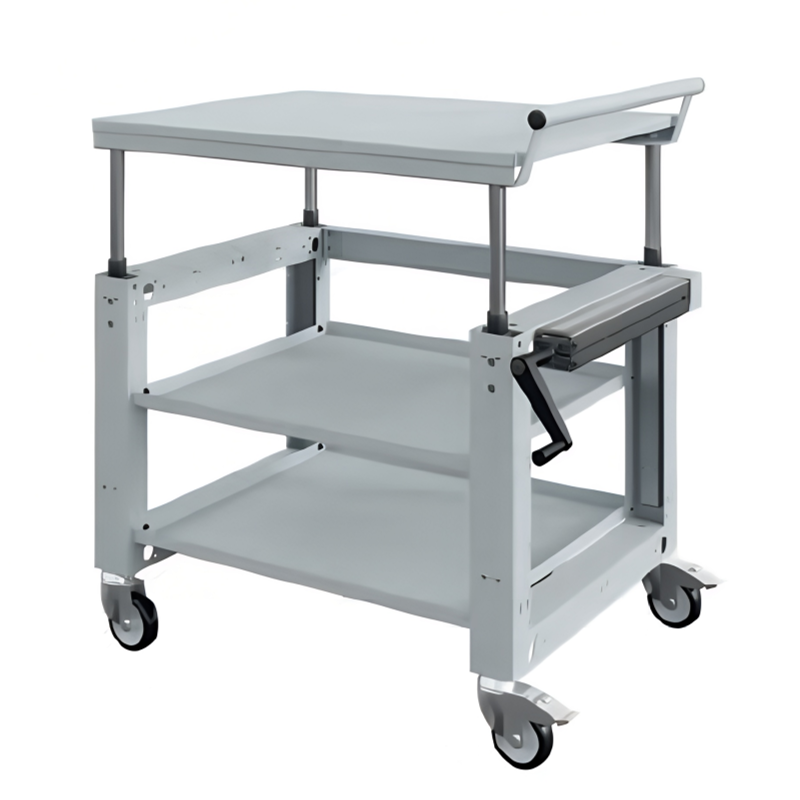

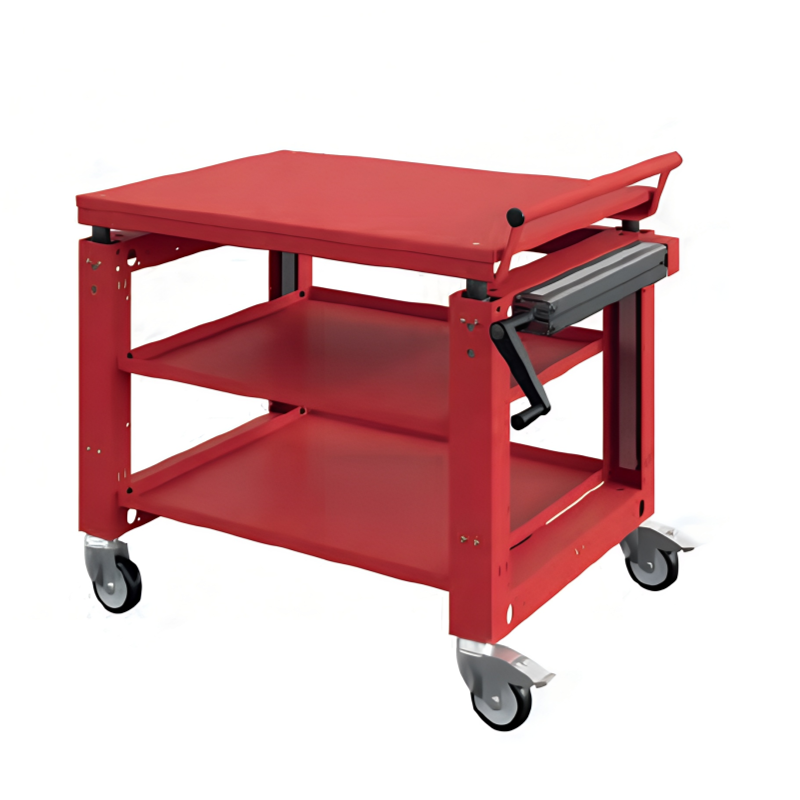

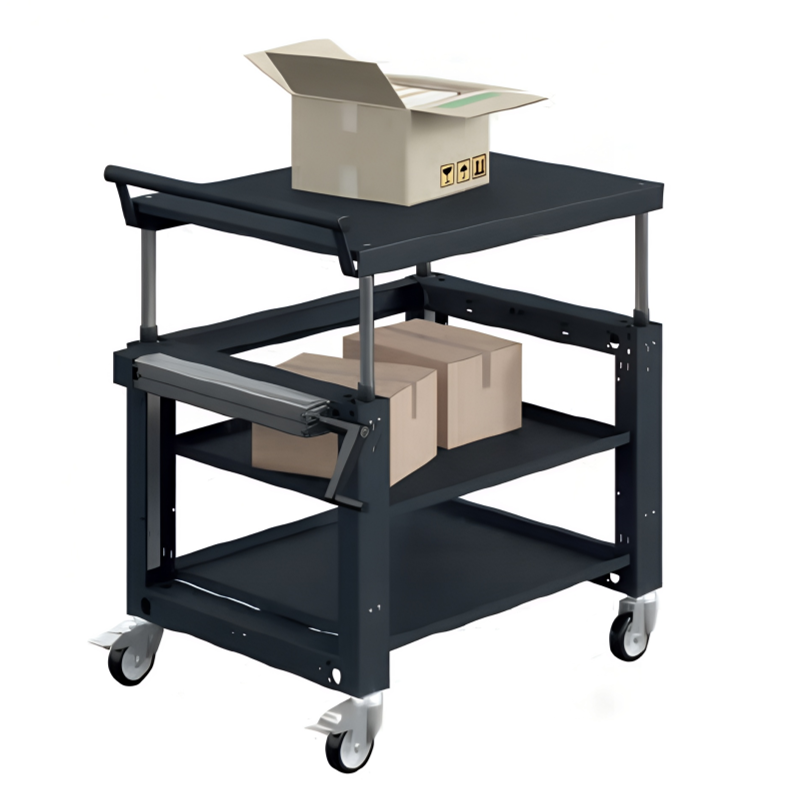

MANULOG Height-Adjustable Mobile Trolley (Crank Operated) – 300 kg – Made in France
Improve safety, ergonomics, and productivity with the MANULOG height-adjustable mobile trolley. Designed for workshops, production lines, and maintenance environments, this robust industrial trolley allows you to set the working height precisely using a foldable hand crank. A rigid lifting structure with 4 hydraulic jacks keeps the platform stable at any height—ideal for repetitive handling, assembly support, and internal transport.
Built from folded steel sheet (2.0 mm) and finished with a structured epoxy powder coating (oven-cured at 180°C) for long-lasting durability in demanding industrial settings.
Made in France and supplied with a 5-year factory warranty.
Why choose this crank-adjustable trolley?
- Precise ergonomic height setting via foldable hand crank
- High rigidity at all heights thanks to 4 hydraulic jacks lifting the frame and platform
- Safer transport of parts with a reversible top tray (use retaining edges when needed)
- Heavy-duty capacity up to 300 kg
- Smooth maneuvering with 4 swivel castors (Ø100 mm), including 2 braked castors
- Industrial-grade finish: structured epoxy powder coating, polymerized at 180°C
- Operator-friendly handling with Ø30 mm tubular steel handle

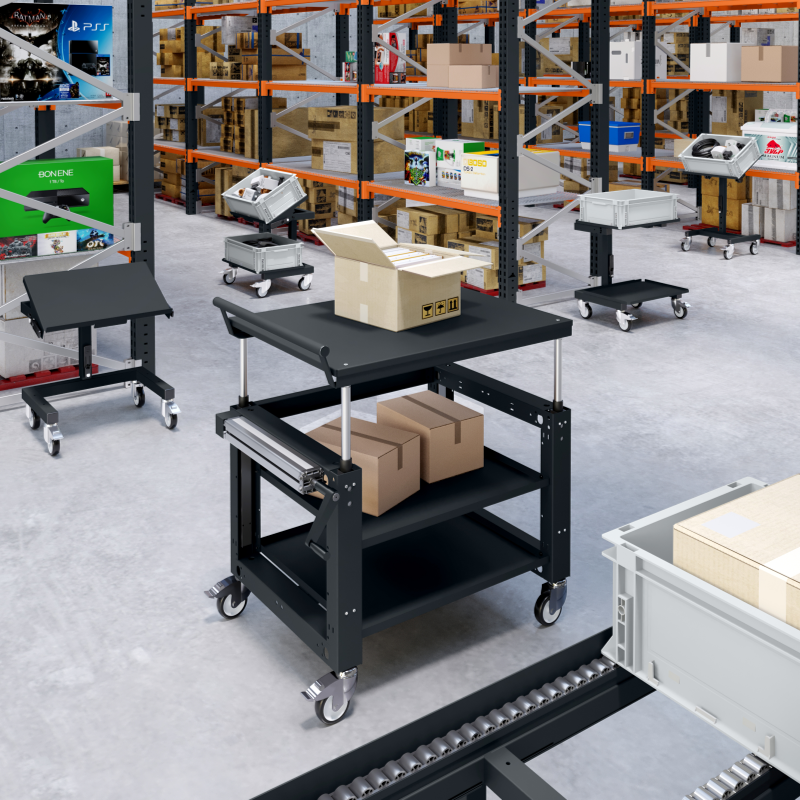

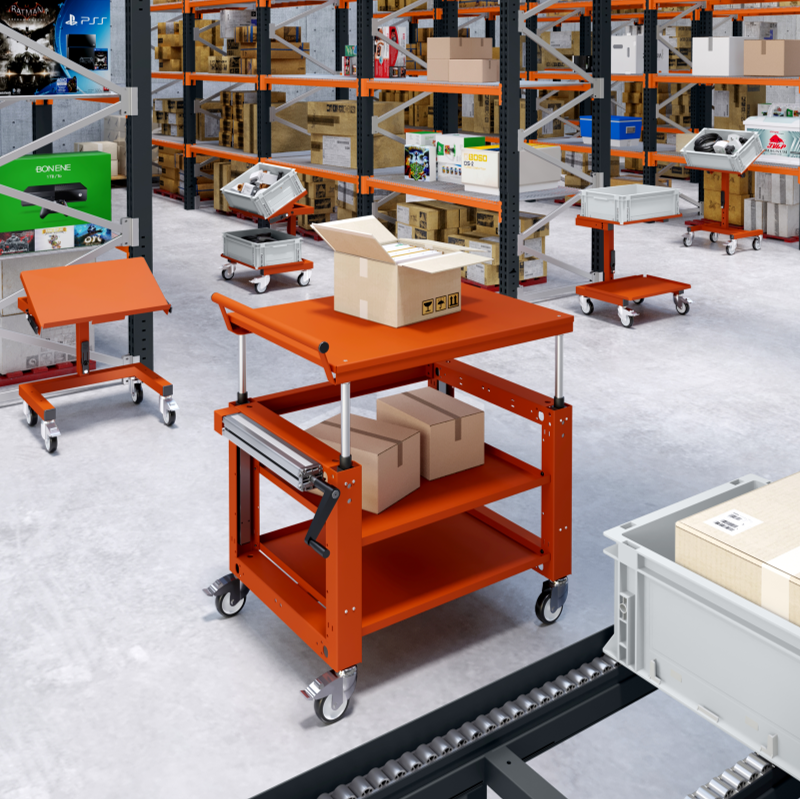

Typical applications
- Assembly and production support trolley
- Maintenance and service cart
- Intralogistics and internal transport
- Adjustable-height staging trolley for bins, parts, and tools
Delivery & warranty
- Delivery available in the Netherlands and Belgium, and across Europe
- 5-year factory warranty
- Made in France
Technical specifications
| Specification | Details |
|---|---|
| Construction | Folded steel sheet 20/10 (2.0 mm) |
| Finish | Structured fine-texture epoxy powder coating, baked at 180°C |
| Height adjustment | Crank operated (foldable crank) |
| Crank lever arm | 125 mm |
| Lift per crank revolution | 5 mm |
| Lifting system | 4 hydraulic jacks |
| Wheels | 4 swivel castors Ø100 mm, 2 with brakes |
| Handle | Tubular steel, Ø30 mm |
| Maximum load | 300 kg |
Available platform sizes
| Platform length (mm) | Platform width (mm) | Height range (mm) | Max load (kg) |
|---|---|---|---|
| 860 | 650 | 745–1000 | 300 |
| 1025 | 650 | 745–1000 | 300 |
| 1460 | 650 | 745–1000 | 300 |
RFQ / Pricing & availability (SALESBRIDGES)
For a quotation, lead time, and help selecting the best configuration for your application, contact:
[email protected]
+31 6 52883848
| Brand | Salesbridges |
| Article code | SB020040001 |
| SKU | SB020040001 |
| EAN | 9502429668928 |
