KIPPOMAT Type KM For 1100 L Wheelie Bins – 1845x1370x960 Mm
The KIPPOMAT Type KM is a robust tipping attachment for transporting, emptying, and cleaning large 1100 litre wheelie bins with 4 wheels. It is suitable for wheelie bins manufactured according to DIN EN 840-3 and is designed for easy use with forklift tru
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
KIPPOMAT Type KM For 1100 L Wheelie Bins – 1845x1370x960 Mm
Product Information
The KIPPOMAT Type KM is a robust tipping attachment for transporting, emptying, and cleaning large 1100 litre wheelie bins with 4 wheels. It is suitable for wheelie bins manufactured according to DIN EN 840-3 and is designed for easy use with forklift trucks.

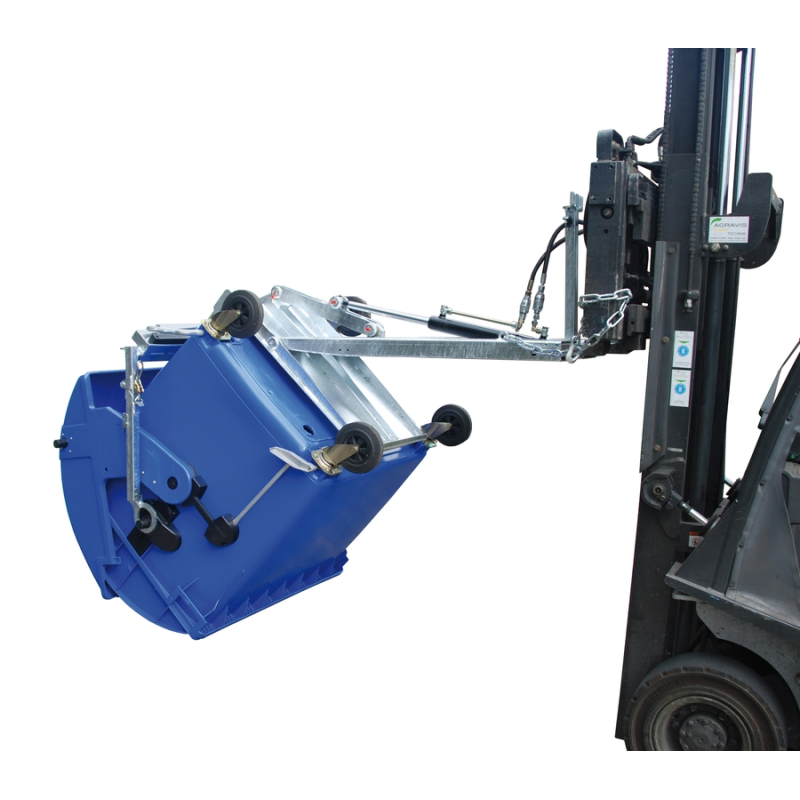

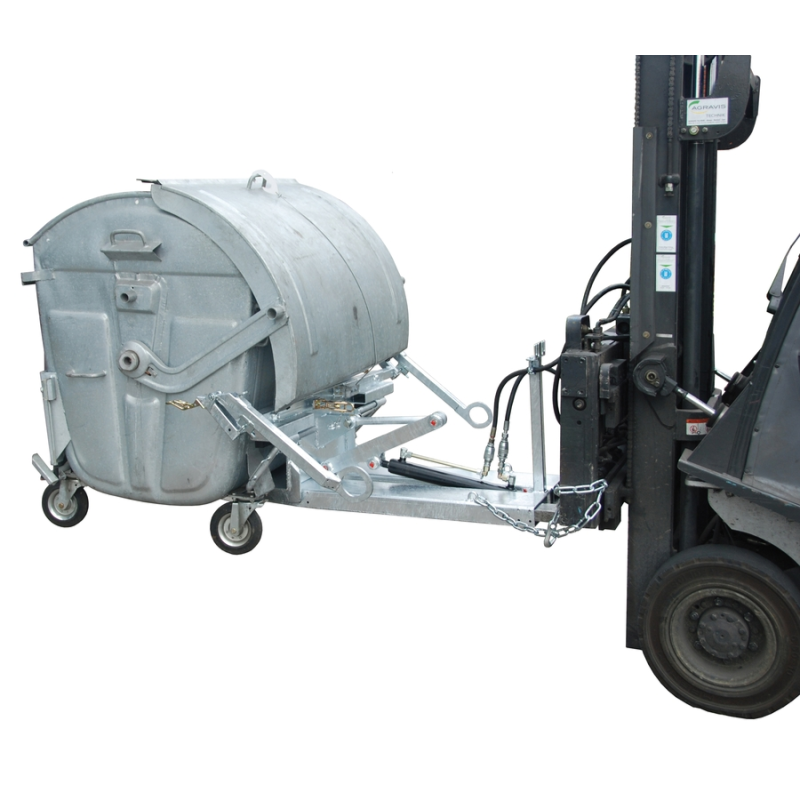

The KM features a sturdy frame with fork sleeves and a hydraulic tipping mechanism. The bin is secured during emptying using fixing points for both steel and plastic bins. A steel cable keeps the lid open, allowing safe and controlled emptying.
Key Features
- Suitable for 1100 L wheelie bins with 4 wheels
- For containers according to DIN EN 840-3
- Designed for transporting, emptying, and cleaning
- Sturdy frame with fork sleeves
- Hydraulic tipping mechanism operated by forklift hydraulics
- Minimum operating pressure: 130 bar
- Controlled forward and backward movement
- Stepless capacity regulation valve controls emptying speed
- Can be secured to prevent slipping
- 2 bolts for steel bins
- 2 folding fixing arms for plastic bins
- Steel cable keeps the lid open
- Fixture for hydraulic hoses, steel cable, and safety chain
- Finish: hot-dip galvanized
- Option: adjustable dumping brake
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | KIPPOMAT tipping equipment for wheelie bins |
| Type | KM |
| Application | 1100 L wheelie bins with 4 wheels |
| Standard | DIN EN 840-3 |
| Dimensions L x W x H | 1845 x 1370 x 960 mm |
| Tilting Angle | 135° |
| Max. Load Capacity | 600 kg |
| Weight | 177 kg |
| Operation | Hydraulic via forklift hydraulic system |
| Minimum Operating Pressure | 130 bar |
| Fork Sleeve Inside Dimension A | 115 mm |
| Fork Sleeve Inside Dimension B | 200 mm |
| Fork Sleeve Inside Dimension C | 65 mm |
| Finish | Hot-dip galvanized |
| Available RAL Finish | RAL 2000 / RAL 3000 / RAL 5012 / RAL 6011 / RAL 7005 |
| Option | Adjustable dumping brake |
Delivery
Delivery in the Netherlands and Belgium and shipping across Europe via SALESBRIDGES.
