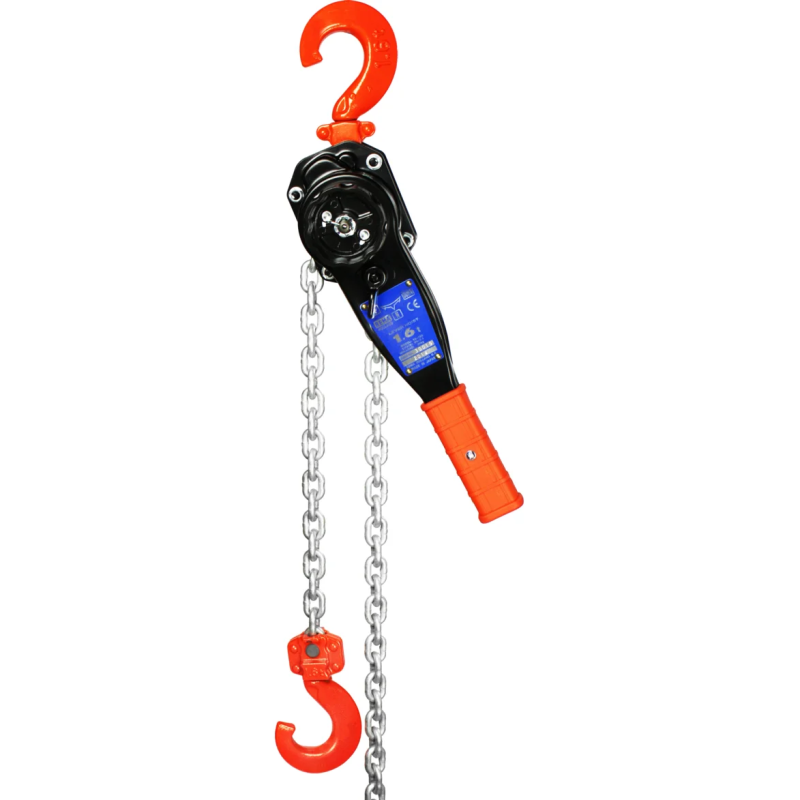

Elephant YAS Lever Hoist with Shipyard Hooks – 1.6 to 3.2 Ton - Pulling Length 1.5–3 m
The Elephant YAS lever hoist is an extremely robust solution designed specifically for pulling applications in all directions. It is equipped with shipyard hooks and is only suitable for pulling tasks, such as drawing steel sections together.
Its compact design, low self-weight, and easy freewheel operation make it highly efficient in use. The patented chain guide and double spring mechanism provide additional safety.
Key Features
- Capacity: 1.6 to 3.2 ton
- Available working lengths: 1.5 and 3 meters
- Designed specifically for pulling applications

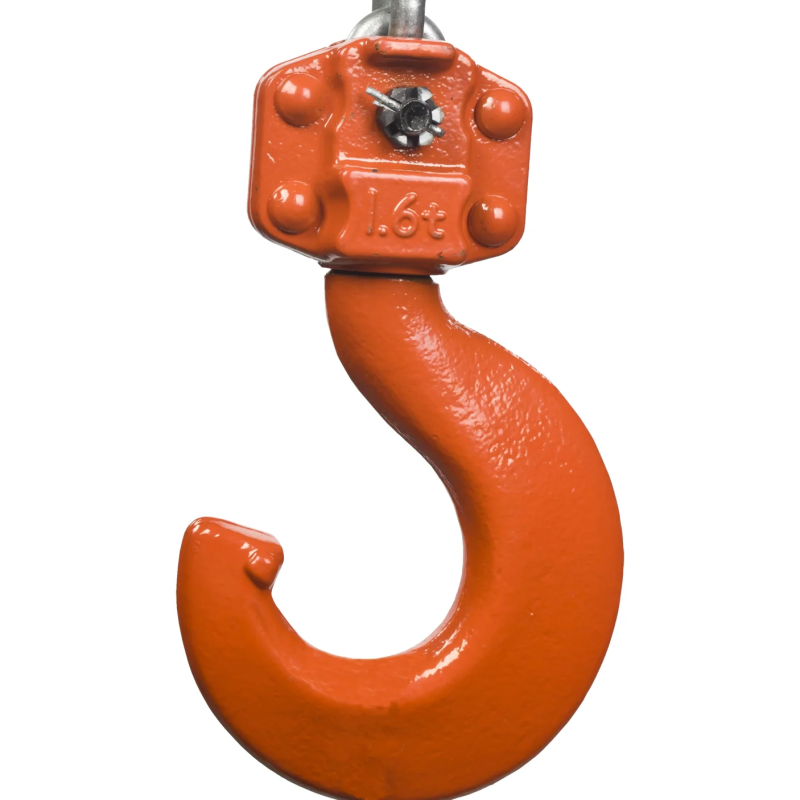

- Equipped with shipyard hooks (without safety latches)
- Freewheel operation with one simple action
- Self-locking brake system
- Patented load chain guide
- Double spring on each catch for extra safety
- Galvanized load chain (Grade 8)
- Compact and lightweight design
- CE marked
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 1.6 – 3.2 ton |
| Working length | 1.5 – 3 m |
| Number of falls | 1 |
| Load chain | 7.1 x 21 mm / 9.0 x 27.2 mm |

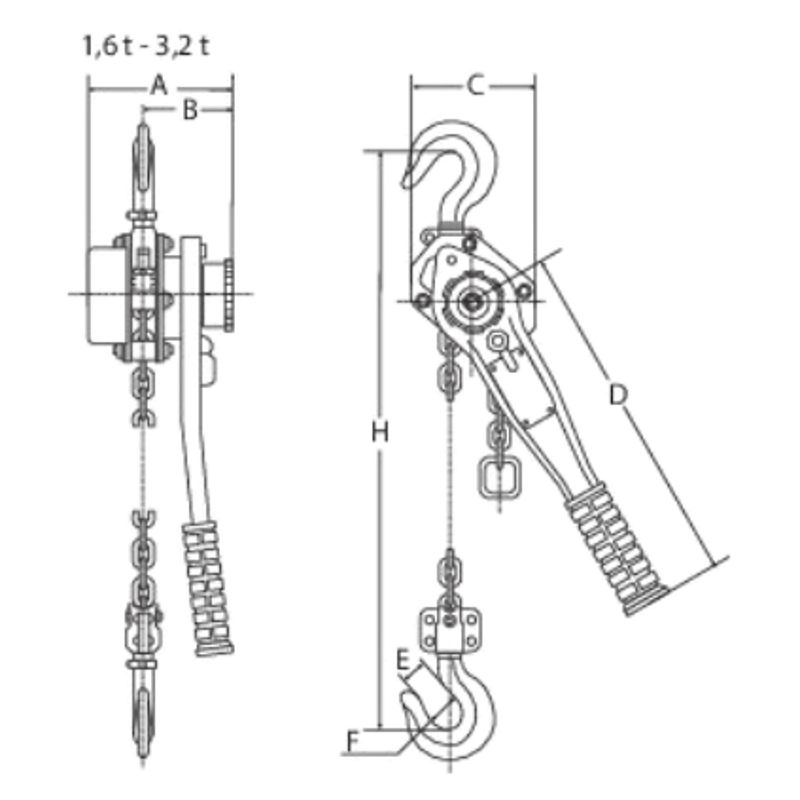

| Construction height | 352 – 420 mm |
| Max hand force | 30 – 37 kg |
| Weight | 9.5 – 18.2 kg |
| Standards | EN818-7 |
| Marking | CE |
Standard Delivery
- 1.5 m working length
- Ready for immediate use
Options
- Longer chain lengths available
Note
- Only suitable for pulling applications (not for lifting)
